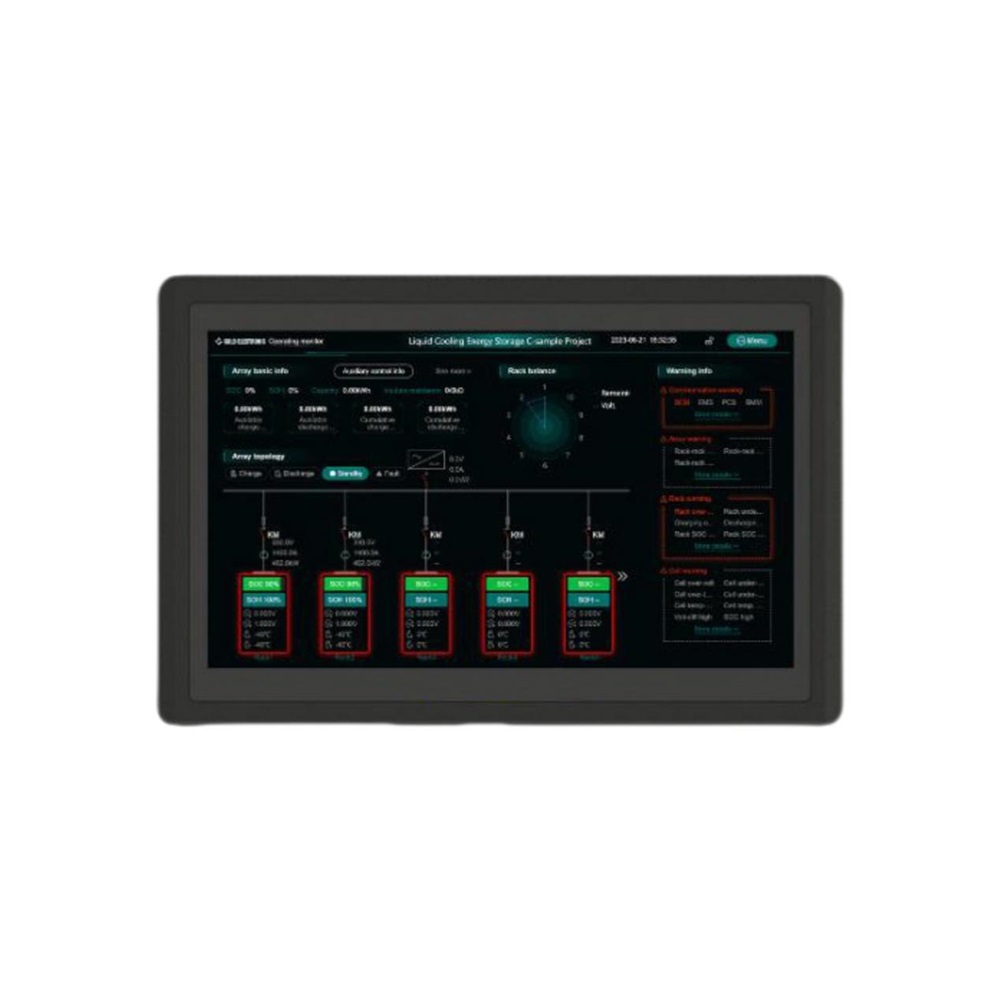

BMS Battery Management System Unit ESMU HV2.0.1 For BESS
BMS ESMU HV2.0.1 is suitable for various applications of energy storage battery management systems(bess). It has the following functions：alarm，protection and etc.
- Category: Battery Management System
- Tag:
ESMU HV2.0.1 has feature in monitoring and managing the battery energy storage system. It is responsible for analyzing and storing real-time data uploaded by BMS. Then it implements calculation, performance analysis, alarm processing and recording. In addition, it could be connected to PCS and EMS for external control and operation, such as generating strategies for load control and optimization according to output power and SOC of every cluster to ensure a safe and efficient system.
Function Description

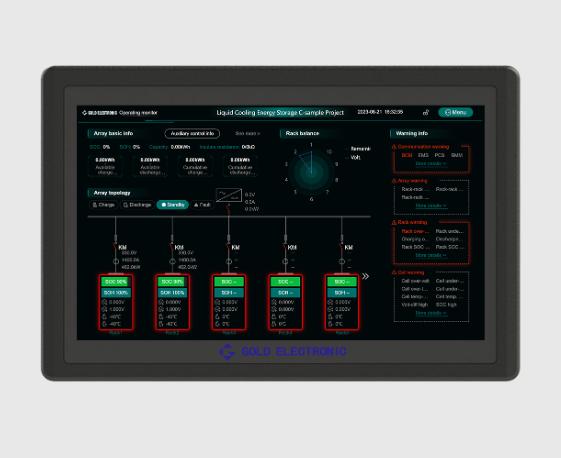

Monitor and display, Alarm
Protection, Parameter setting
Remote control and update
Technical Parameters
| Item | Specification |
CPU | ARM, 4-core, Maximu:2.0GHz |
RAM | 4GB LPDDR4 |
OS | Linux |
Storage | 16GB eMMC 240G-256G SSD, Standard 256G 32G SD card (optional) |
Number of cells | Max. 450 cells x 20 clusters |
Data record interval | ≤5s |
Supply power | DC 9-32V |
Power consumption | ≤10W(Initial state when the state is on) |
Working conditions

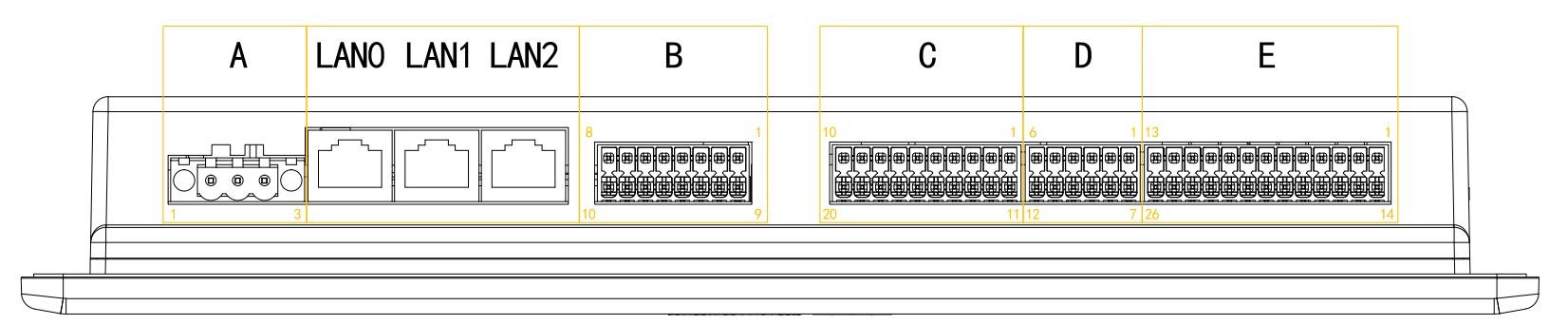

| Environmental temperature: -10-+60℃ Relative humidity (non-condensing):<95% Environmental magnetic:<400A/m No erosive, flammable and combustible gas around |
Inquiry method | Local inquiry, remote inquiry, data download and output |
Alarm method | Sound-light alarm, alarm content display, fault point output |
Communication interface | 3×LAN, LAN0/LAN1: 100M/1000Mbps; LAN2: 10M/100Mbps 3×CAN (Isolated), 250Kbps-500Kbps, 1530Vac 5×RS485 (Isolated), 9600bps-19200bps, 1530Vac 2×USB |
DO/DI | 6×IO input (DIH) with photoelectric isolation, 9-32V effective, 1530Vac 6×IO input (DIL) with photoelectric isolation, 0-0.7V effective, 1530Vac 12×IO input/output, relay dry contact, 1A/30Vdc or 1A/250Vac (use as AC output, adjacent ports could not be used), 1530Vac 1×AC power loss detection, range 220Vac±30% |

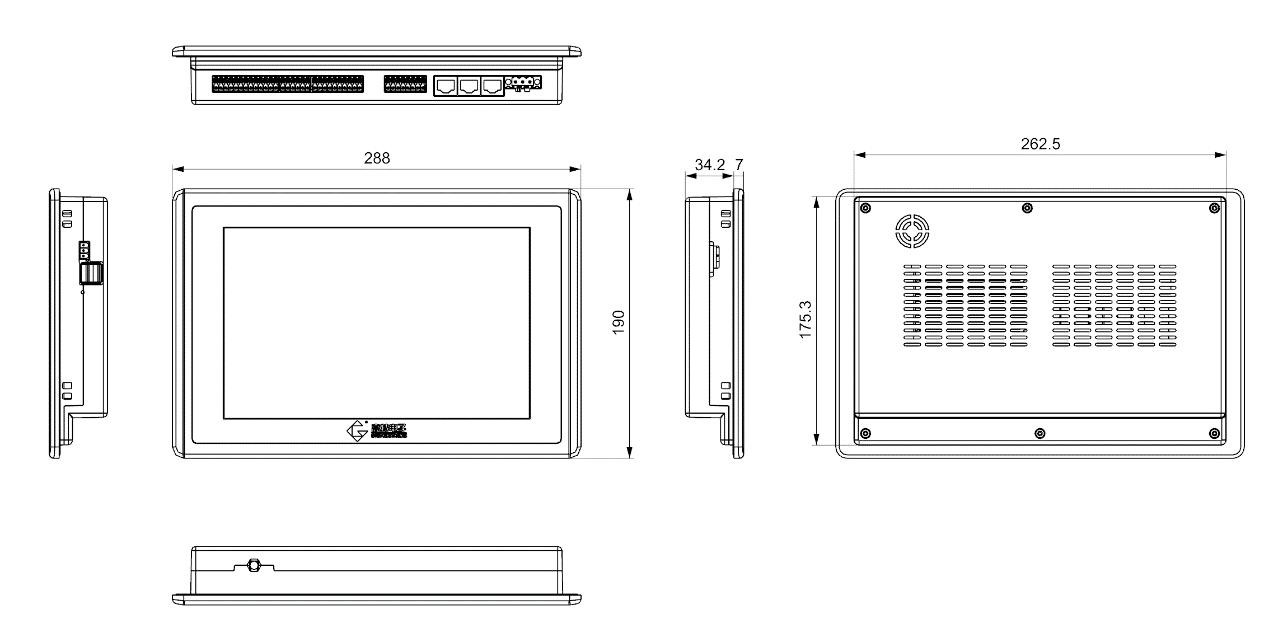

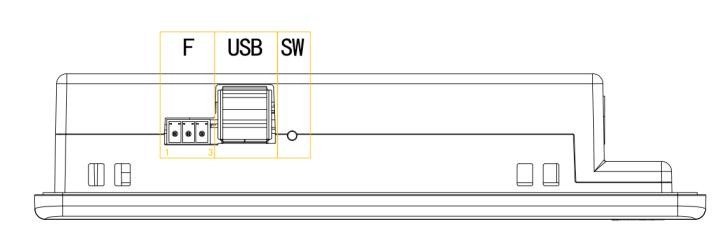

Dimension and Detail
Overall size:288x190x41.2mm
Display area:216.5x135.3mm
Cabinet opening:263x176mm
Tolerance:±1.2mm
Selection
| Product models | Specification |
ESMU-1002564G | 256G SSD, 4G |
ESMU-100256 | 256G SSD |
Scope of Application
ESMU HV2.0.1 is suitable for various applications of energy storage battery management systems.
Typical Application
System Topology
Digital Output (DO)
Digital Input (DI)
AC Power Loss Detection
