F900 14.6V-30Ah Battery Charger LiFePO4 For Transportation and Robots
F900 14.6V-30Ah Lithium Iron Battery Charger LiFePO4 For Transportation and Robots
- Category: Charger
- Tag:
Product Features
● Multi-stage Charging
● Constant Current &Voltage(CC&CV)
● Pulse Width Modulation(PWM)
● Built-in Microcontroller(MCU)
● Synchronous Rectification
● LLC Resonance
Operation Instruction
1. Please make sure the charger is firmly connected to thebattery.
2. The charger will be turned off automatically after the battery isfully chargerd.Unplug the charger from AC outlet when thecharger is not in use.
3. Some chargers are not designed to cally with the vehicle.
4. Please make sure the voltage from AC outlet matches thatrequired by the charger.
F900 30Ah 14.6V LiFePO4 Battery Charger Parameter Specification
Parameter | Specification | |
Input | Input voltage | Rated voltage: 220Vac; Adjustment range: 200-240Vac |
Input frequency | Rated frequency: 50/60Hz; Adjust frequency: 47-63Hz | |
Max input current | When the input voltage is 200VAC, the maximum input current is 4A. | |
Surge current | At ambient temperature of 25℃, when the output is rated negative load, input the maximum wave at 220VAC cold start, the surge current is less than 50A. | |
Output | Output power | Output voltage: 14.6V Max.Charge current: 30A Fan turn lamp current 3A Max. Output Power: 438W |
Load characteristics | No load voltage: 14.6V Max.Charge Voltage: 14.6V Line regulation : ±0.2V Load Regulation: ±5% | |
Efficiency | When the input voltage is 220VAC and the maximum load current output ,the efficiency more than90% | |
Work Temperature | -20℃~+45℃ | |
Storing Temperature | -20℃~+85℃ | |

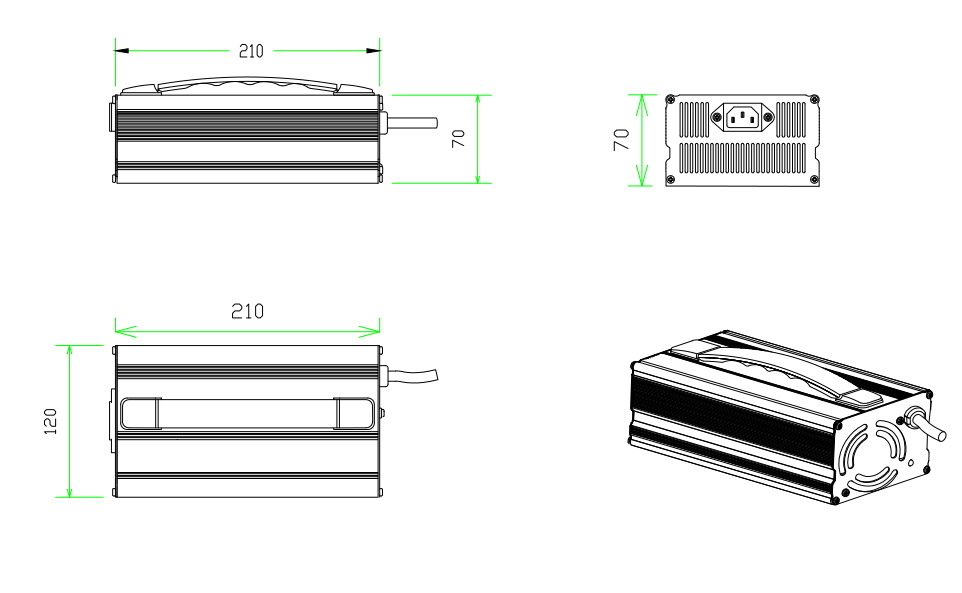

Dimensions
Outer-shell dimensions
L 210*W 120*H 70mm

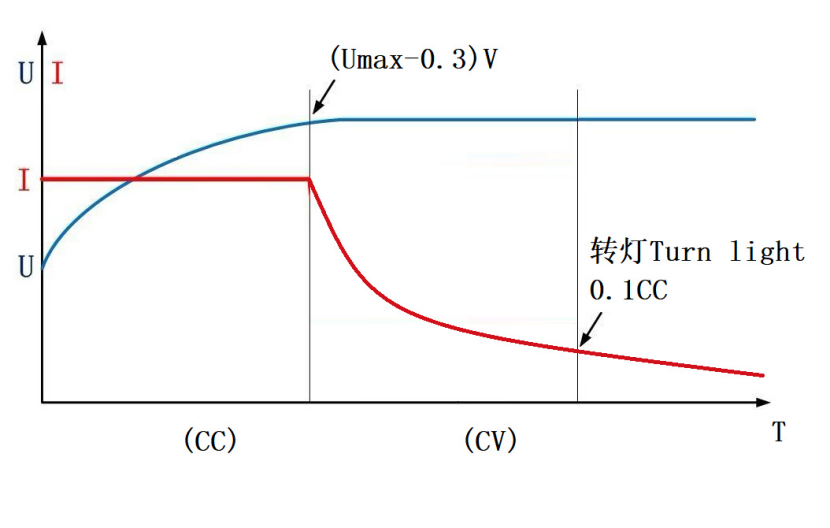

Charging Schematic Diagram

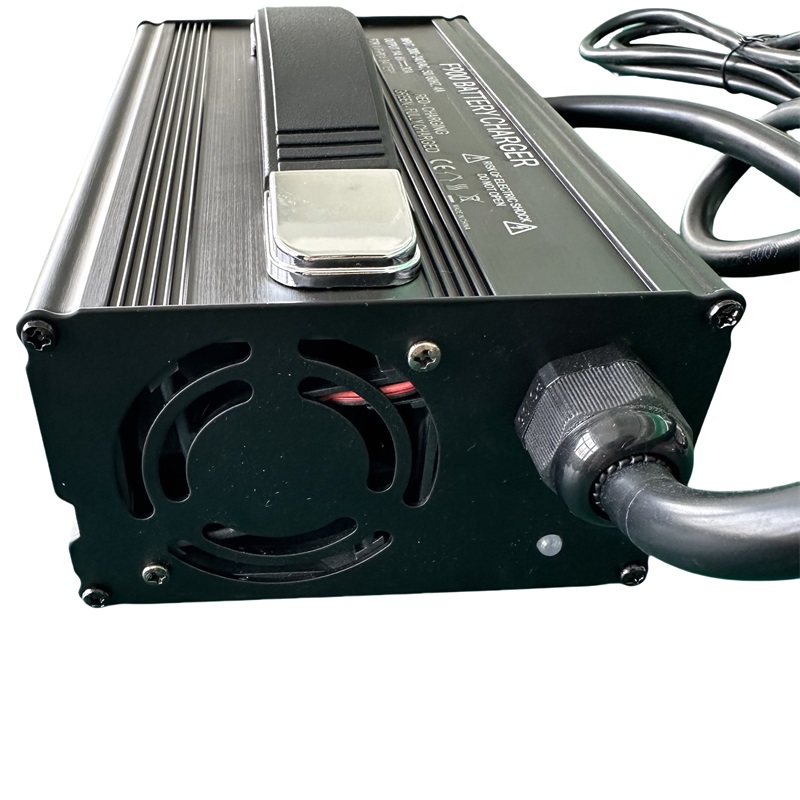

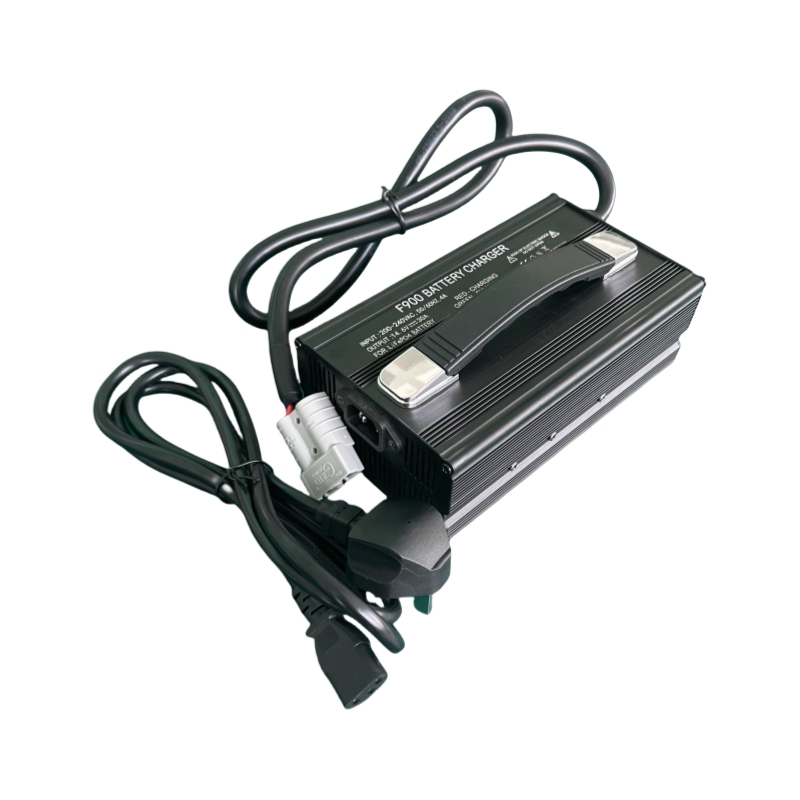

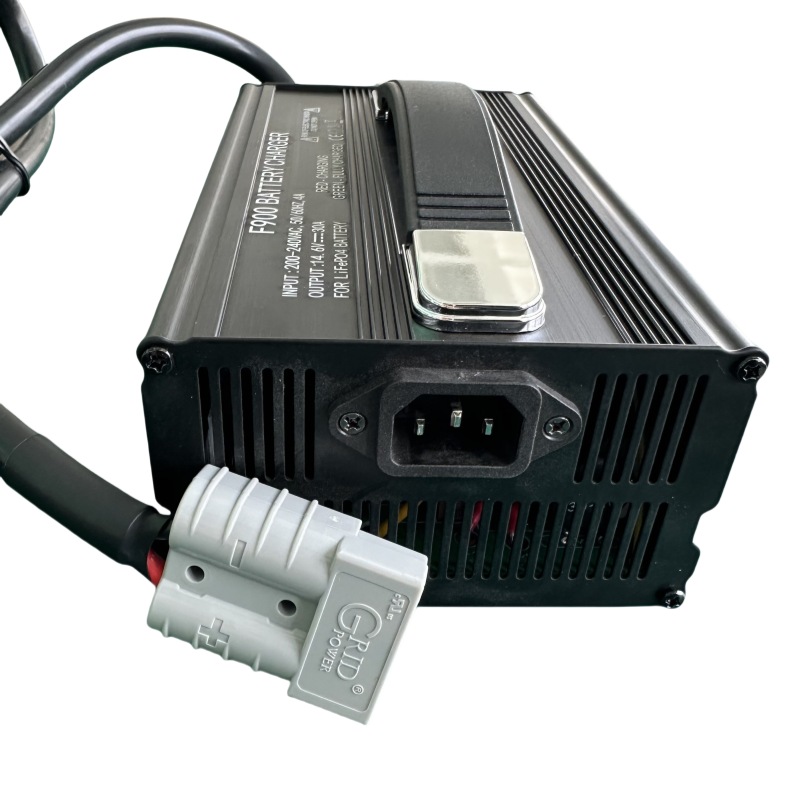

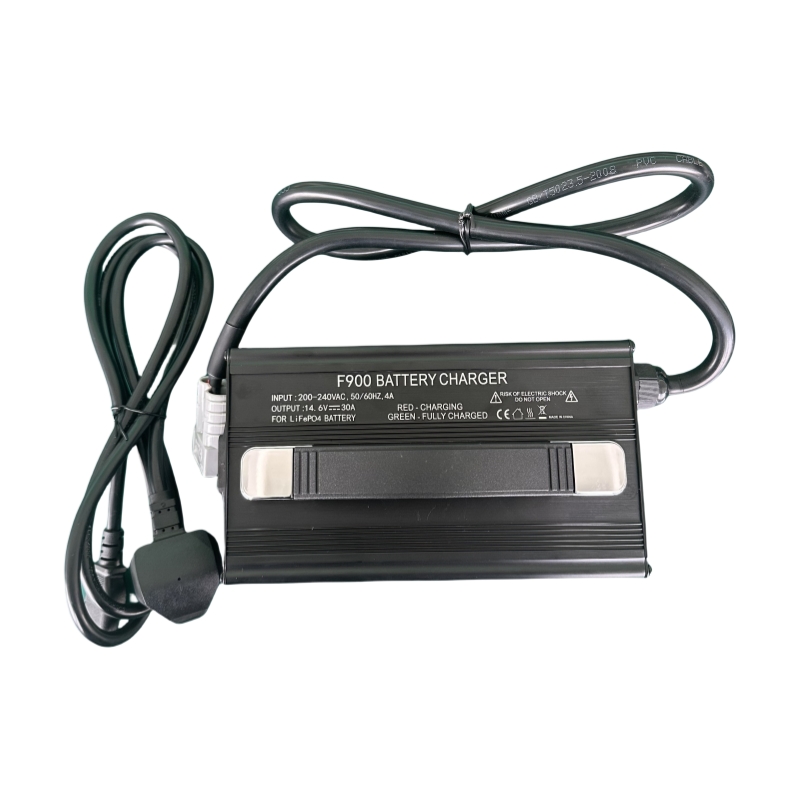

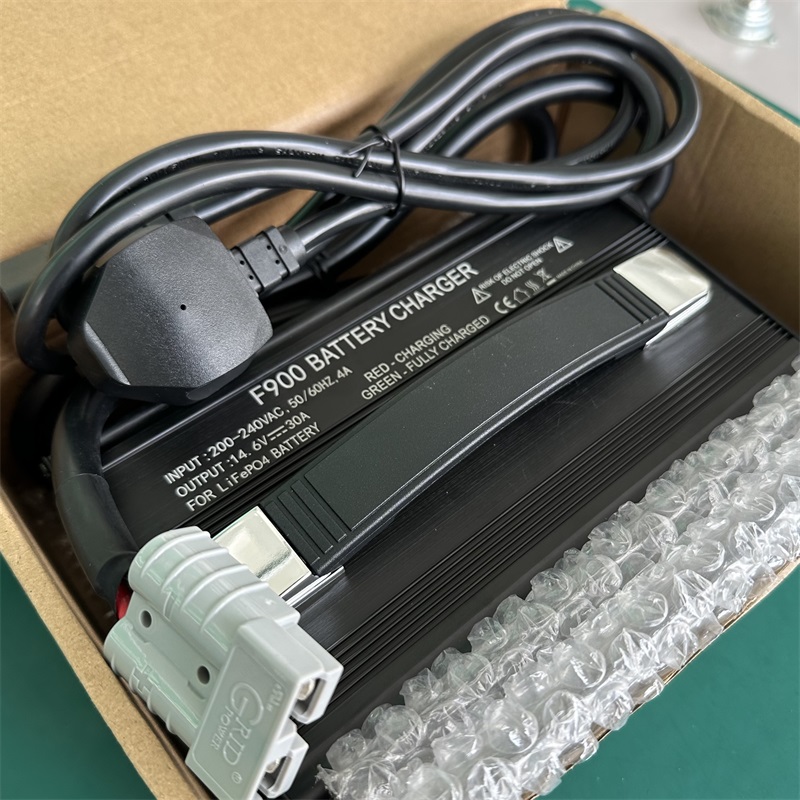

Detailed Images
Safety Information
◆ NEVER use the charger with defective power cord and damage wires.
◆ NEVER set the output cable, power cord and the charger ona wet surface.
◆ NEVER cover the vent on the charger.
◆ NEVER use an off-board charger on the vehicle.
◆ NEVER use the charger in inflammable and explosive areas.
◆ NEVER attempt to plug in the charger using wet hands or in
an extremely humid environment.
◆ NEVER disassemble, repair and modify the charger.
◆ ALWAYS unplug the charger from the AC outlet before attempting any maintenance or cleaning.
◆ ALWAYS plug in and unplug the AC power cord by grasping the plug and DO NOT DRAG THE POWER CORD ITSELF to reduce the risk of damaging the power cord.
◆ ALWAYS store indoors when not in use.
◆ ALWAYS place the charger in a clean and ventilated environment while charging.
Application Fields
1. This charger is suitable for all kinds of equipment and tools using energy storage battery as power
2. Transportation: electric bikes and scooters;
3. Robots: Electric toys and industrial electric robots;
4. Other practical power tools.
