125kW/241kWh Liquid-cooled Energy Storage Industrial and Commercial All-in-one ESS Cabinet
125Kw 241Kwh Liquid cooling all in one Battery energy storage Cabinet liquid-cooling for commercial & industrial ESS
- Category: Energy storage system
- Tag:
Equipped with an independent liquid cooling system, it achieves higher energy density and enhanced heat dissipation within a compact footprint, while offering advantages such as high efficiency, low noise, safety, reliability, and easy scalability. When integrated with PCS (Power Conversion System), it enables grid voltage regulation, three-phase imbalance mitigation, and harmonic suppression, thereby improving power quality. With a mere footprint of 1.3 square meters, the product features a modular design and high IP protection rating, allowing it to adapt to diverse application scenarios. It can also serve as a backup power source, helping enterprises lower your energy costs and increase green energy usage.
Specifications
Item | Specifications |
DC Parameter | |
Rated Capacity | 314Ah |
Rated Energy | 241kWh |
Rated Voltage | 768V |
Rated Power | 125kW |
Rated Charging and Discharging Rate | 0.5P |
Operating Voltage Range | 600V～876V |
Cooling Mode | Liquid cooling |
Cycle Number | 6000 |
AC Parameter | |
Rated AC Power | 125kW |
Wiring Method | Three-phase, four-wire |
Allowed Grid Voltage | 380V（-20%～＋15%) |
Allowed Grid Frequency | 50Hz/60Hz±2.5Hz |
DC Component in Current | ≤0.5% |
Power Factor | -0.99/-1～1 |
Total Harmonic Distortion (THD) | ≤ 3% (at full load) |
Charge/Discharge Conversion Time | ＜100ms |
Maximum Conversion Efficiency | ≥98％ |
System Parameter | |
Operating Environment | -20℃～50℃（＞45℃ Power derating) |
Size (W*D*H ) | 1000*1300*2500mm |
Weight | About 2.5T |
Allowable Relative Humidity | 0-95%（No condensation) |
Allowable Altitude | ≤2000m（Power derating 2000m + ） |
Certification Standard | GB/T36276 |

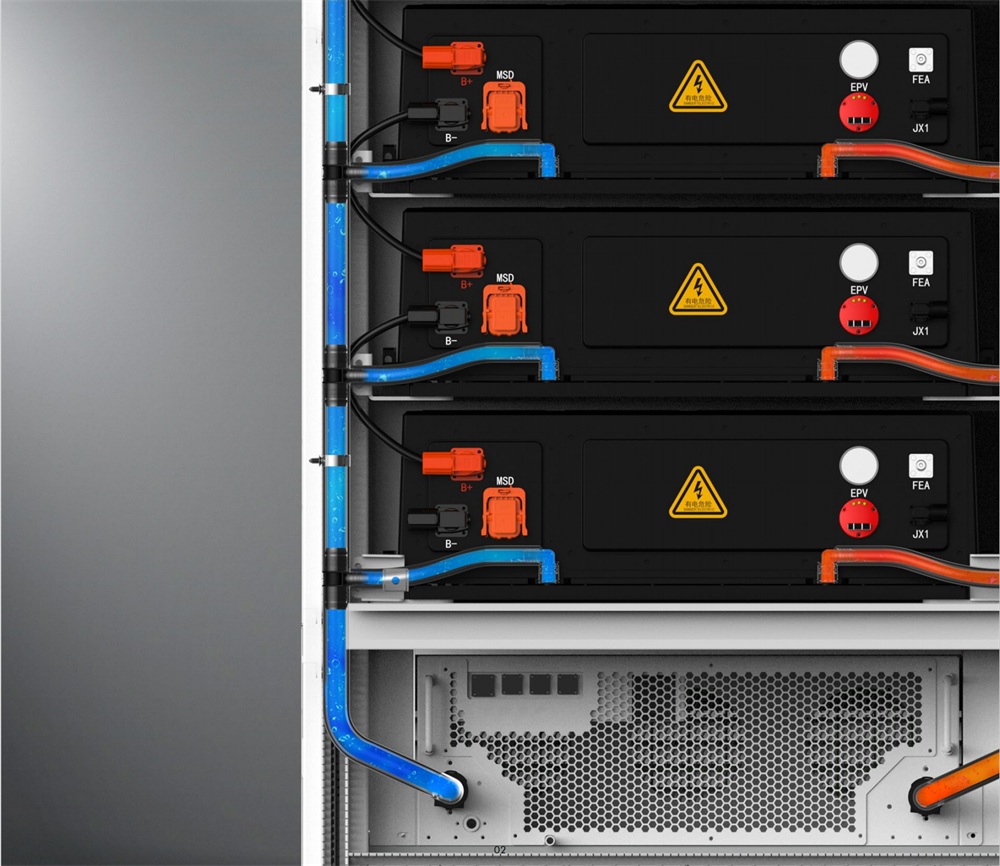

Details- Liquid Cooled Dynamic Thermal Management
· Liquid-cooled thermal design
· ≤75dB low-noise operation
· Safe and reliable
· Partitioned isolation with active safety monitoring | PACK-level immersion fire protection
· Cloud-edge coordination
· 24/7 real-time monitoring | Multiple operational modes
· Modular design
· Easy installation and commissioning | Flexible capacity expansion on demand

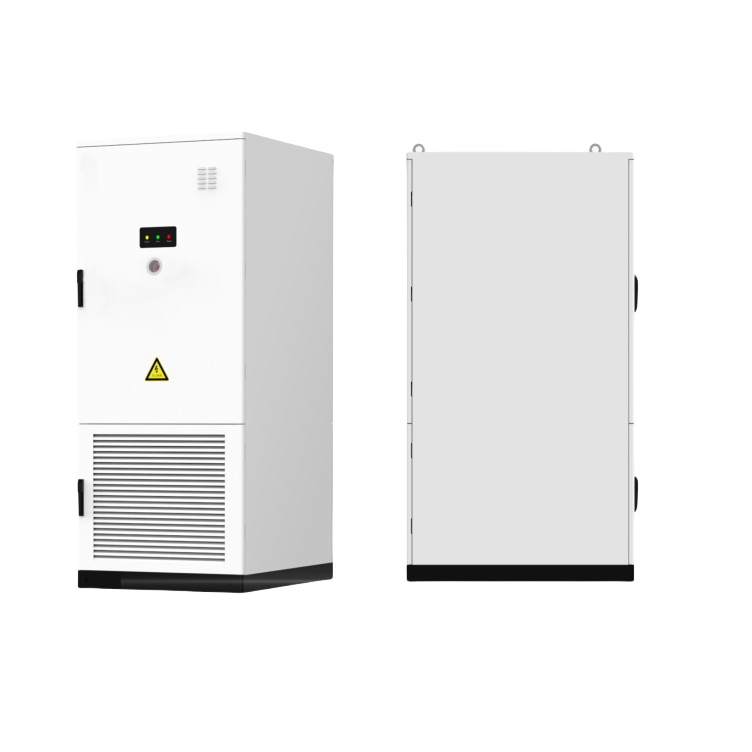

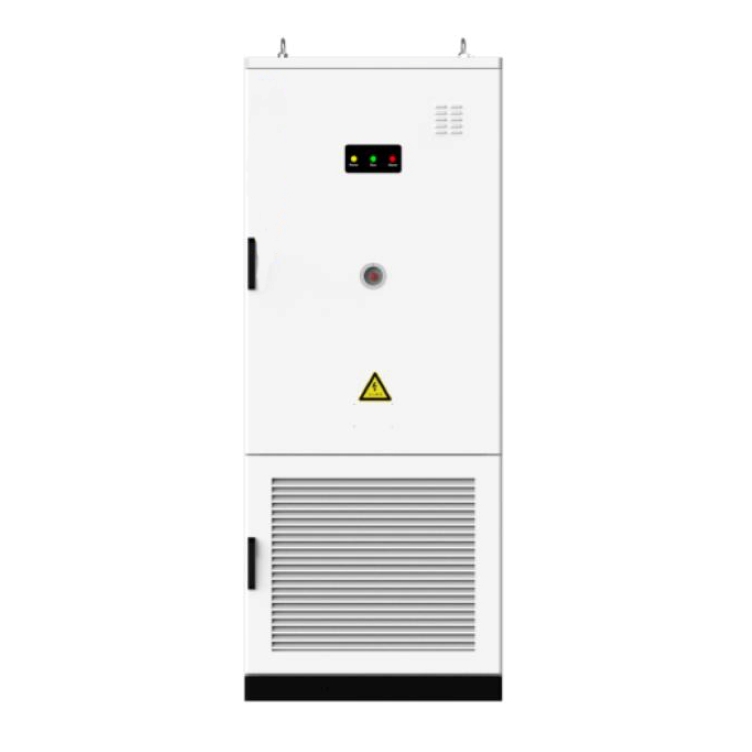

Product Exterior

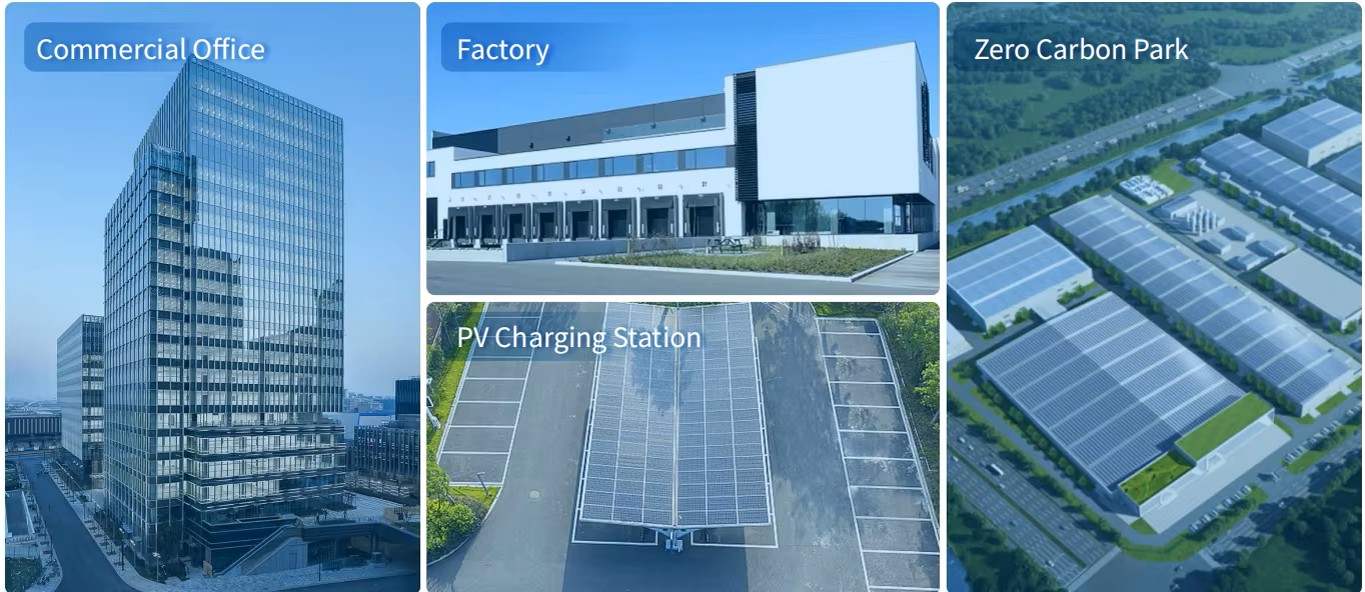

Application Scenario
· Savings on Electricity Costs through Peak-Off-Peak Price Differentials
During periods of low electricity prices, use the grid to charge the devices. During periods of high electricity prices, discharge the batteries to power the load.
· Used as a Backup Power Source during Power Outages
It can serve as a backup power source during power outages, providing power to critical facilities to ensure uninterrupted business operations.
· Providing Power Compensation
Providing Power Compensation Function to Ensure Stable Power Supply for Businesses and Ensure Safe Equipment Operation.
· PV and Energy Storage Integration: Building an Independent Grid
Storing excess electricity generated by the photovoltaic system using the Energy Cube and converting it for later use.
