125kW/261kWh Liquid Cooling Commercial and Industrial Energy Storage System All In One ESS Cabinet
125kW/261kWh Liquid Cooling All In One ESS Cabinet for Commercial and Industrial Energy Storage System Solution
- Category: Energy storage system
- Tag:
Equipped with an independent liquid cooling system, it achieves higher energy density and enhanced heat dissipation within a compact footprint, while offering advantages such as high efficiency, low noise, safety, reliability, and easy scalability. When integrated with PCS (Power Conversion System), it enables grid voltage regulation, three-phase imbalance mitigation, and harmonic suppression, thereby improving power quality. With a mere footprint of 1.3 square meters, the product features a modular design and high IP protection rating, allowing it to adapt to diverse application scenarios. It can also serve as a backup power source, helping enterprises lower your energy costs and increase green energy usage.
Specifications
| Model | Energy Curve 100 |
DC Parameter | |
Battery Type | LFP |
Combination Mode | 1P260S |
Rated Capacity | 314Ah |
Rated Energy | 261kWh |
Rated Voltage | 832V |
Rated Power | 125kW |
Operating Voltage Range | 650V～949V |
Charge/Discharge Current | 100A/100A |
Cooling Mode | Liquid Cooling |
Cycle Number | 8000 |
Fire Protection System | Perfluorohexanone + Aeroso+Water fire suppression |
Detector Type | Temperature / Smoke Sensor / Water Leak |
AC Parameter | |
Rated Output Power | 125kW |
AC Overload Capability | 137.5kW |
Wiring Method | Three-phase, four-wire |
Allowed Grid Voltage | 380V/400V（-15%～＋15%） |
Allowed Grid Frequency | 50Hz/60Hz±2.5Hz |
Total Harmonic Distortion (THD) | ≤ 3% (at full load) |
Power Factor | -0.99/-1~1 |
DC Component in Current | ≤0.5% |
Charge/Discharge Conversion Time | ＜100ms |
Maximum Conversion Efficiency | ≥98％ |
System Parameter | |
Operating Environment | -20℃～50℃（Power derating 45℃+） |

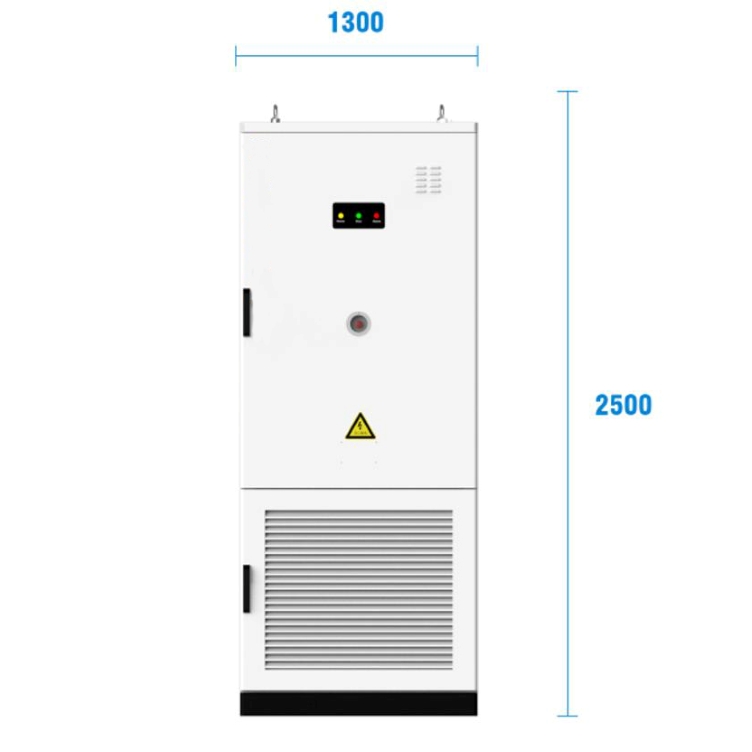

Size (W*D*H mm) | 1000*1300*2500 |
Weight | About 2.6T |
Class Of Protection | IP54 |
Allowable Relative Humidity | 0-95% |
Allowable Altitude | ≤2000m（Power derating 2000m + ） |
Certification Standard | IEC62619、EN62477-1、IEC 63056 |

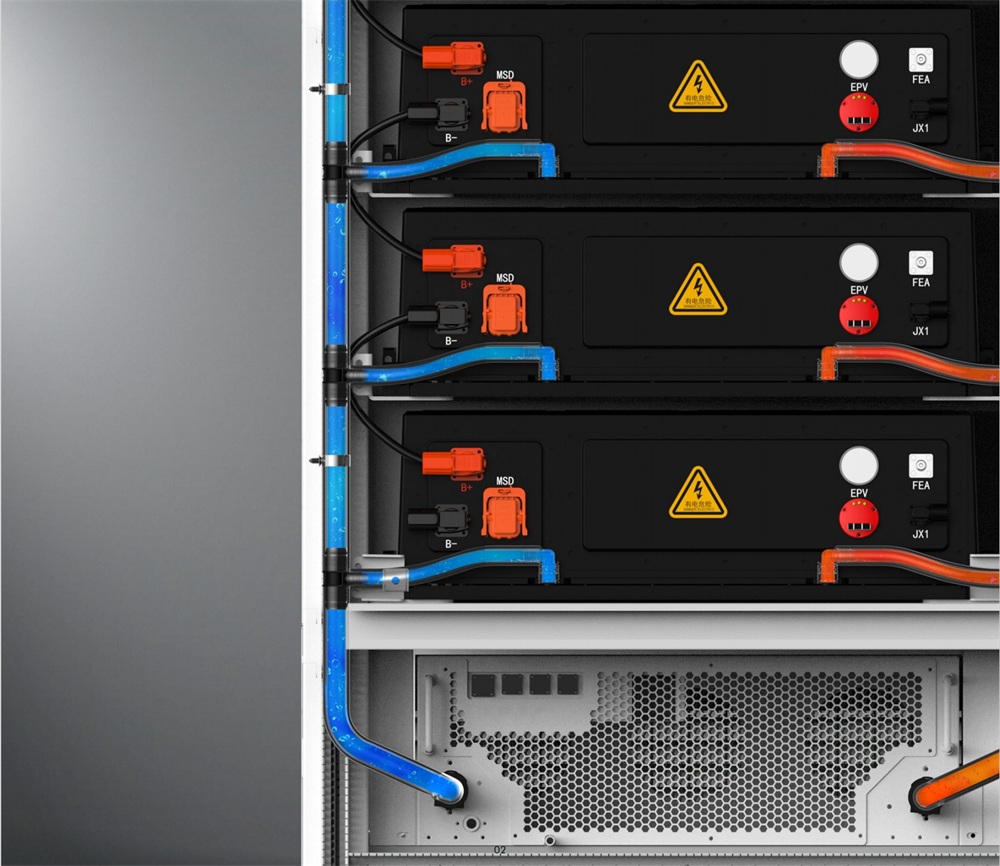

Details- Liquid Cooled Dynamic Thermal Management
· Liquid-cooled thermal design
≤75dB low-noise operation
· Safe and reliable
Partitioned isolation with active safety monitoring | PACK-level immersion fire protection
· Cloud-edge coordination
24/7 real-time monitoring | Multiple operational modes
· Modular design
Easy installation and commissioning | Flexible capacity expansion on demand

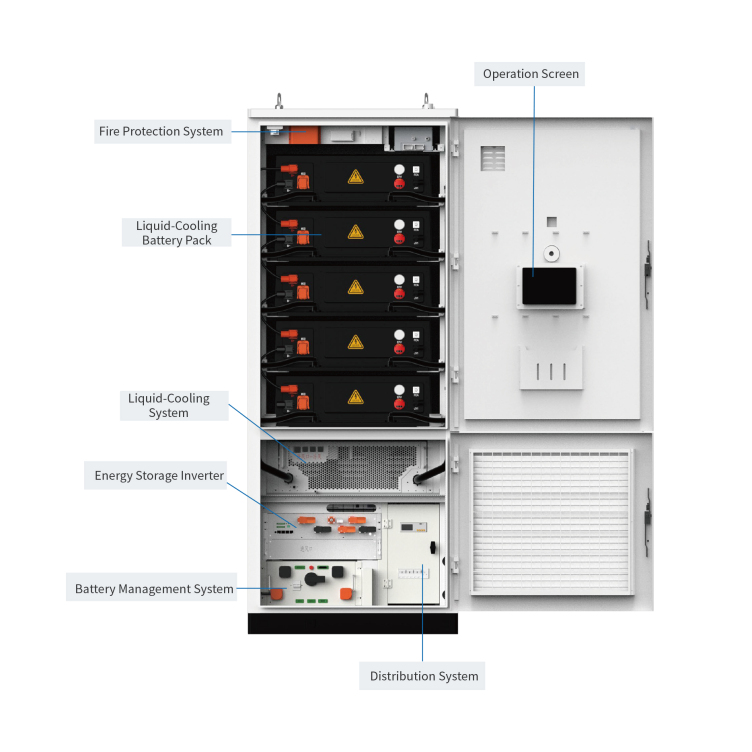

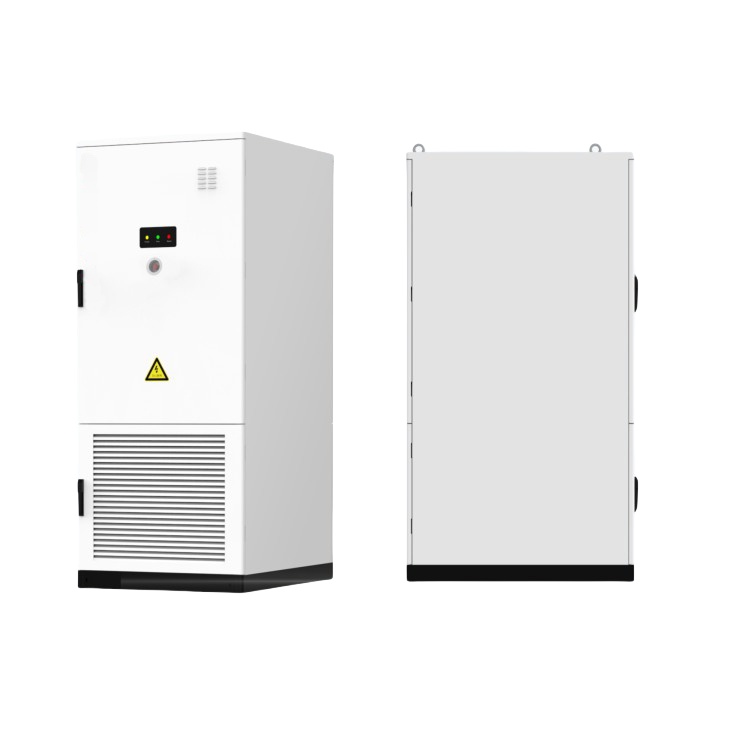

Product Exterior

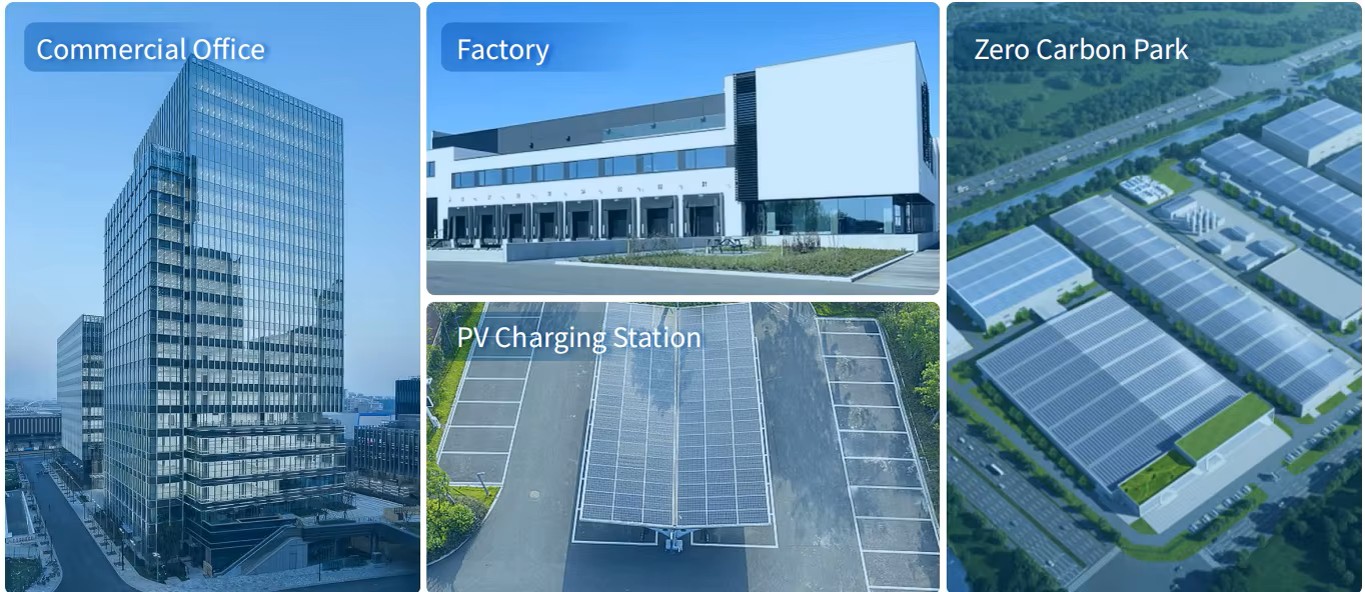

Application Scenario
· Savings on Electricity Costs through Peak-Off-Peak Price Differentials
During periods of low electricity prices, use the grid to charge the devices. During periods of high electricity prices, discharge the batteries to power the load.
· Used as a Backup Power Source during Power Outages
It can serve as a backup power source during power outages, providing power to critical facilities to ensure uninterrupted business operations.
· Providing Power Compensation
Providing Power Compensation Function to Ensure Stable Power Supply for Businesses and Ensure Safe Equipment Operation.
· PV and Energy Storage Integration: Building an Independent Grid
Storing excess electricity generated by the photovoltaic system using the Energy Cube and converting it for later use.
