51.2V 300Ah 342Ah 600Ah Vertical Household Residential LiFePO4 Energy Storage Battery

51.2V 300AH 342Ah 600Ah Residential Vertical Energy Storage LFP Battery for household energy storage

The 51.2V 300Ah/342Ah/600Ah vertical residential household energy storage lithium battery, a long-lived lithium iron phosphate battery, vertical energy storage battery can move freely and conveniently, high-performance BMS protection and management battery system, with a wider range of use and longer lifespan than traditional batteries.

Features

1. LiFePo4 cell class A

2. Support 15pcs In Parallel

3. Vertical Design With Wheels ls Easier To Move

4. Compatible With Multiple Inverter Brands

5. 6000 cycle times DoD 80%

6. BT/WlFl is optional

7. lp67 Optional

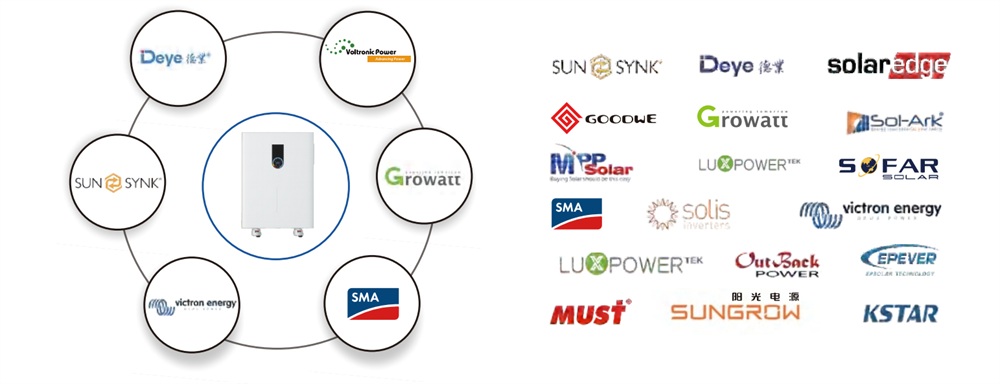

This battery BMS supports simultaneous communication and docking with multiple inverter brands.


multiple inverter brands


Product instructions

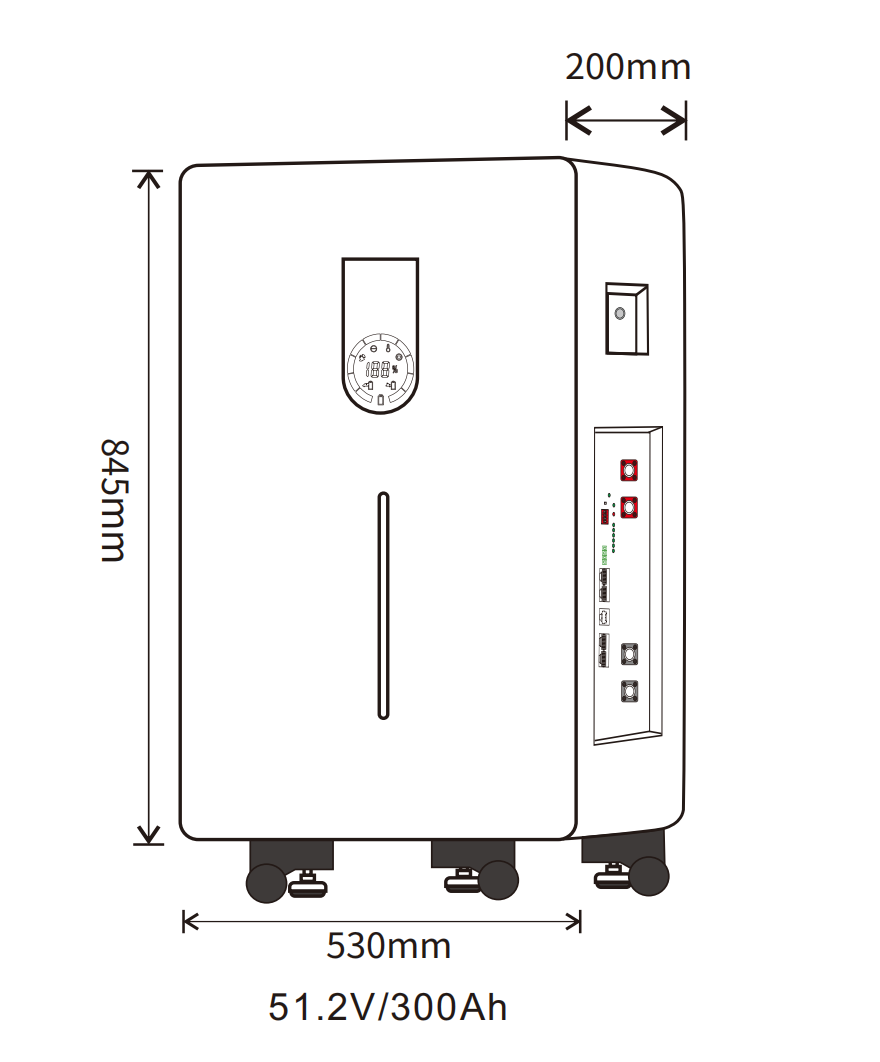

dimension


Specifications


Model

SPV-51.2V-300Ah

SPV-51.2V-342Ah

SPV-51.2V-600Ah

Standard Voltage

51.2V

Standard Capacity

300Ah

342Ah

300Ah

Standard Energy

15.36kWh

17.5kWh

30.7kWh

Working Voltage

43.2 - 57.6V

Standard Charge Current

150A

150A

300A

Standard Discharge Current

200A

Suggested DOD

80%

Cycle Life

>6000 cycles

IP Rating

IP21 (IP67 optional)

Operating temperature

for discharge

-20℃ - 60℃

Operating temperature

for charge

0℃ - 45℃

Max Parallel

15pcs

Communication

RS232/CAN/RS485(WIFI/BT optional)

Display

LCD

Warranty

5 years

Certificate

UN38.3/MSDS/CE/ROHS/FCC

N.W./unit(kg)

120

128

250

G.W./unit(kg)

139

147

284

Product Size/unit(mm)

810*550*270

810*550*270

1150*800*270

Meas/unit(mm)

880*633*422

880*633*422

1210*885*470

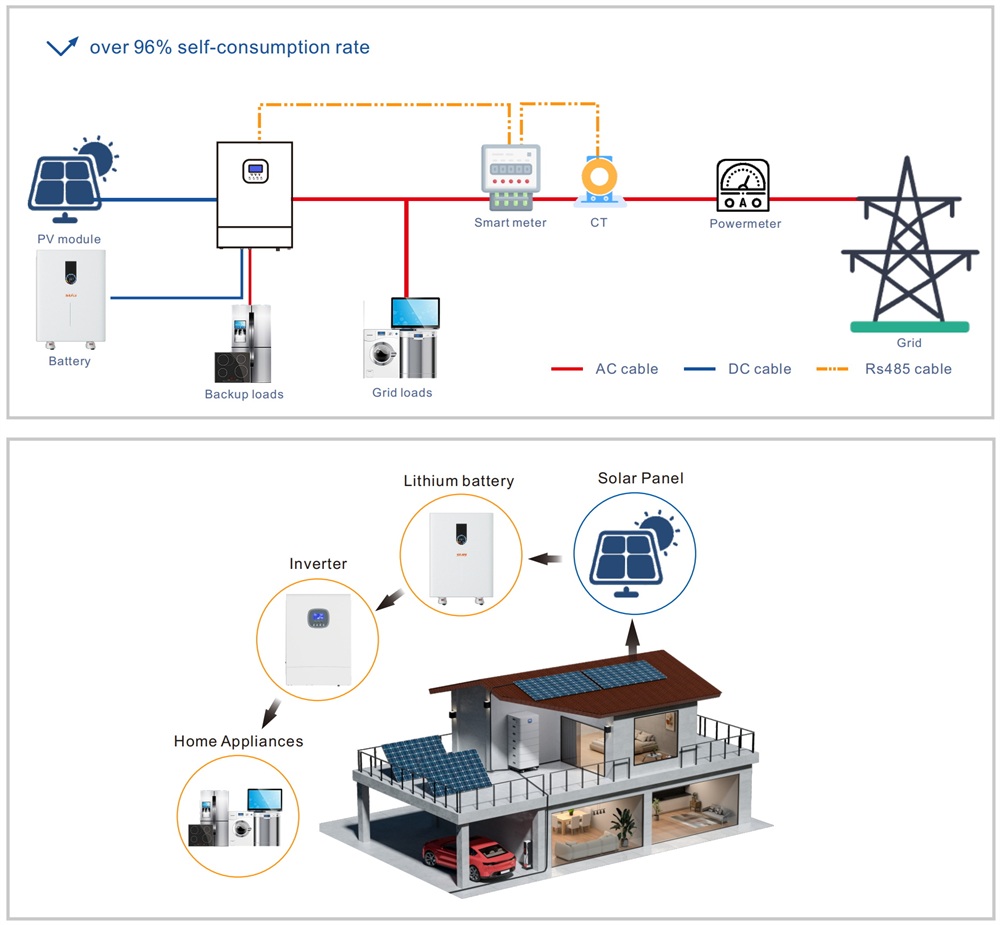

Product Connection Diagram


Product Connection Diagram

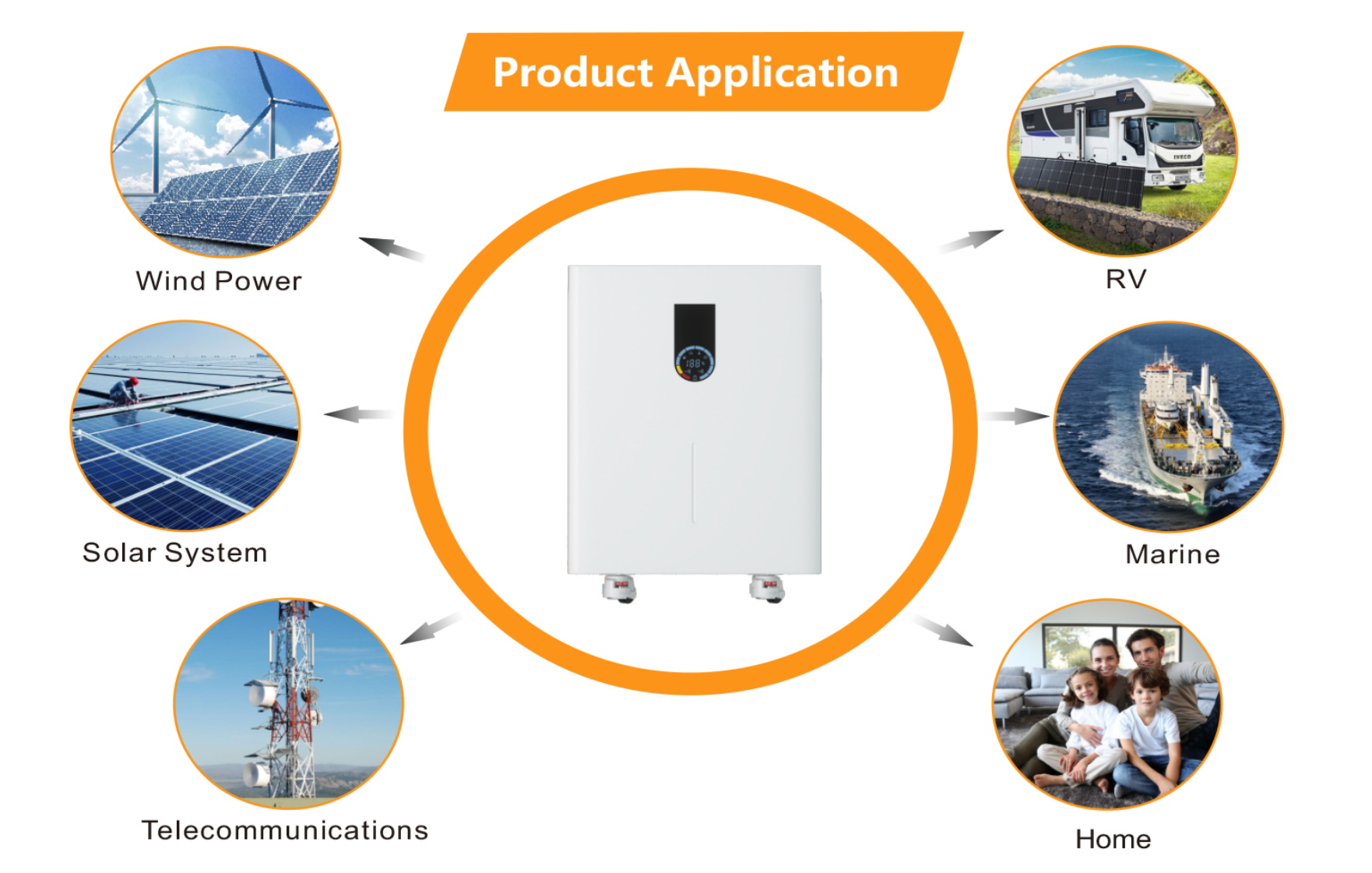

Applications


Wind Power / Solar system / telecommunications / home / RV / Marine


applications
