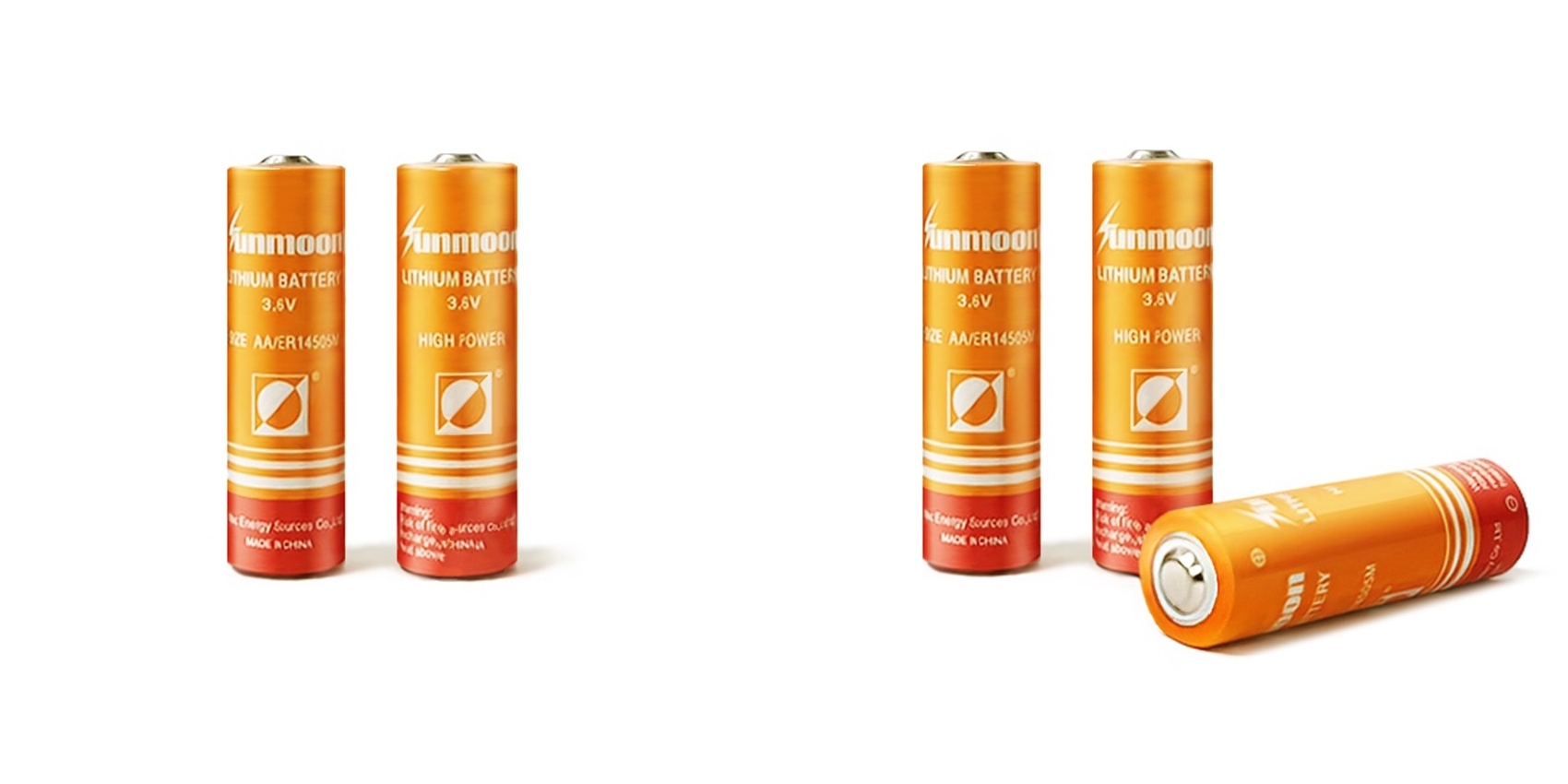

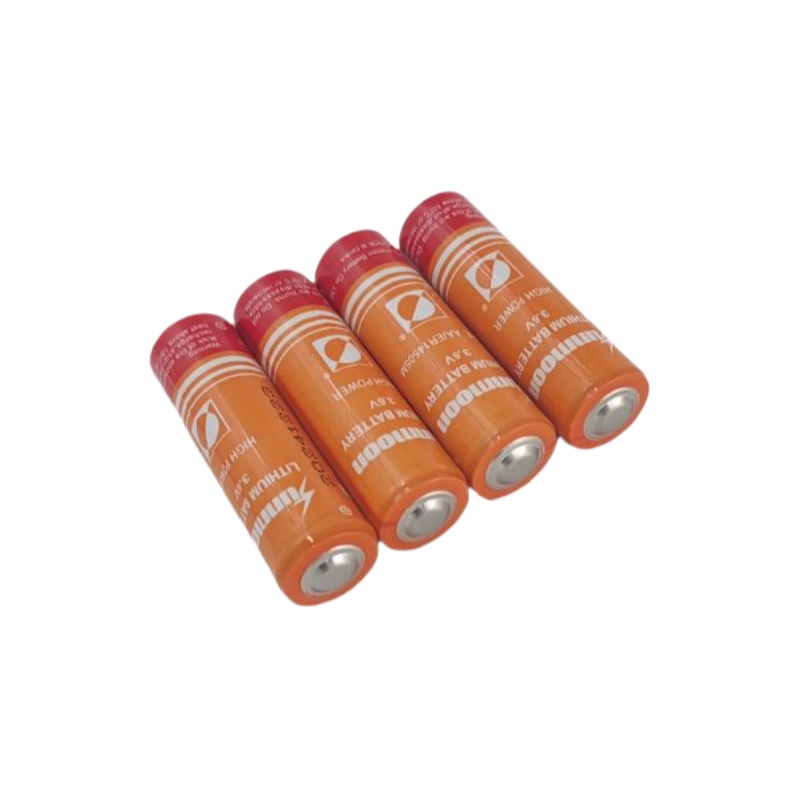

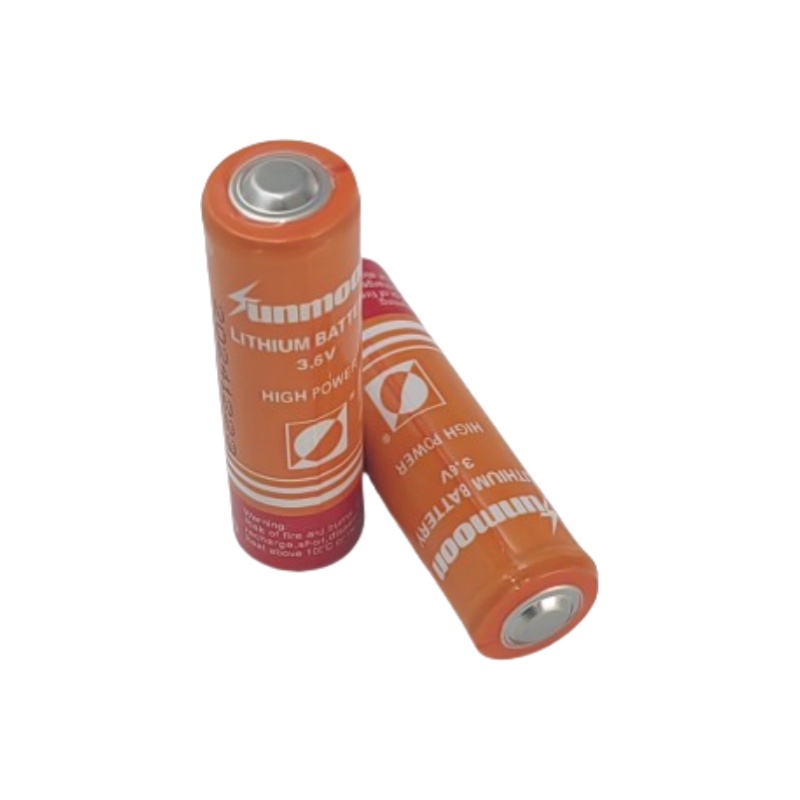

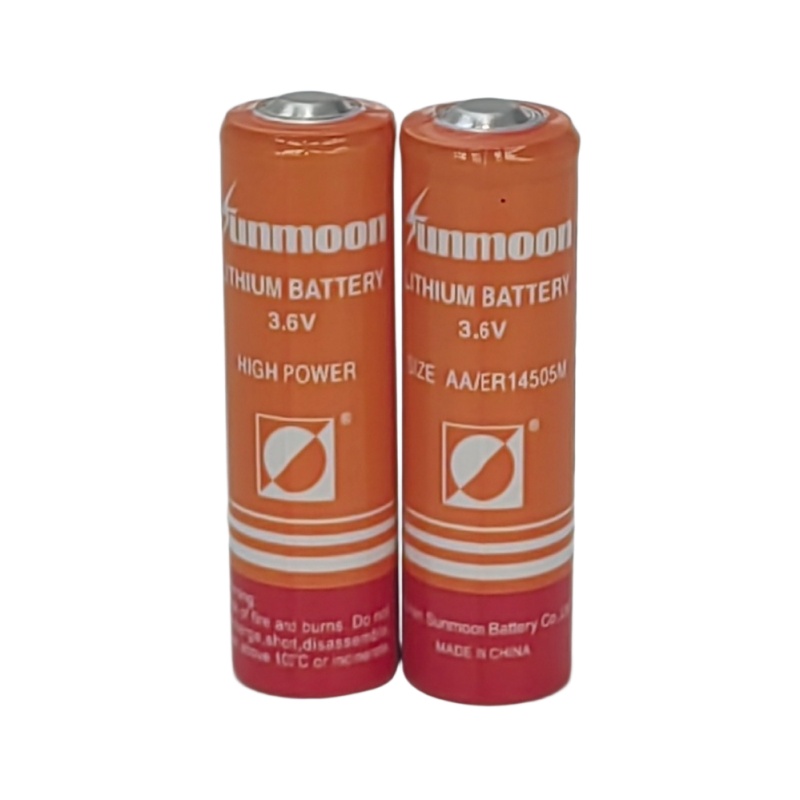

ER14505M 3.6V 2100mAh Spiral Type Li-SOCl2 Non-Rechargeable Lithium Battery
ER14505M 3.6V 2100mAh spiral Li-SOCl2 battery features high energy density and is suitable for high-power continuous discharge and pulse discharge.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag:
ER14505M 3.6V 2100mAh Spiral Type Li-SOCl2 Non-Rechargeable Lithium Battery with High Energy Density
Product Characteristics
· High Energy Density: Over 430Wh/kg
· Open Circuit Voltage: ≥3.65V, operating voltage ranging from 3.3~3.6V
· Wide Operating Temperature Range: -55°C+85C
· Long Storage Life: Over 10 years [Under normal room Temperature]
· Operation Characteristic: Suitable for high-power continuous discharge and pulse discharge
Specifications
| Item | Specifications |
Product Model | ER14505M |
Product Type | LI/SOCl₂ |
Battery Charging | No |
Nominal Voltage | 3.6V |
Maximum Continuous Current | 300mA |
Nominal Capacity | 2100mah |
Maximum Pulse Current | 1000mA |
Weight | 20g |
Operating Temperature | -55℃~+85℃ |
Discharge Cut-off Voltage | 2V |
Maximum Profile Size | φ14.5 X50.5mm |
Rated Discharge Current | 3mA |
Operation Characteristic
Suitable for high-power continuous discharge and pulse discharge

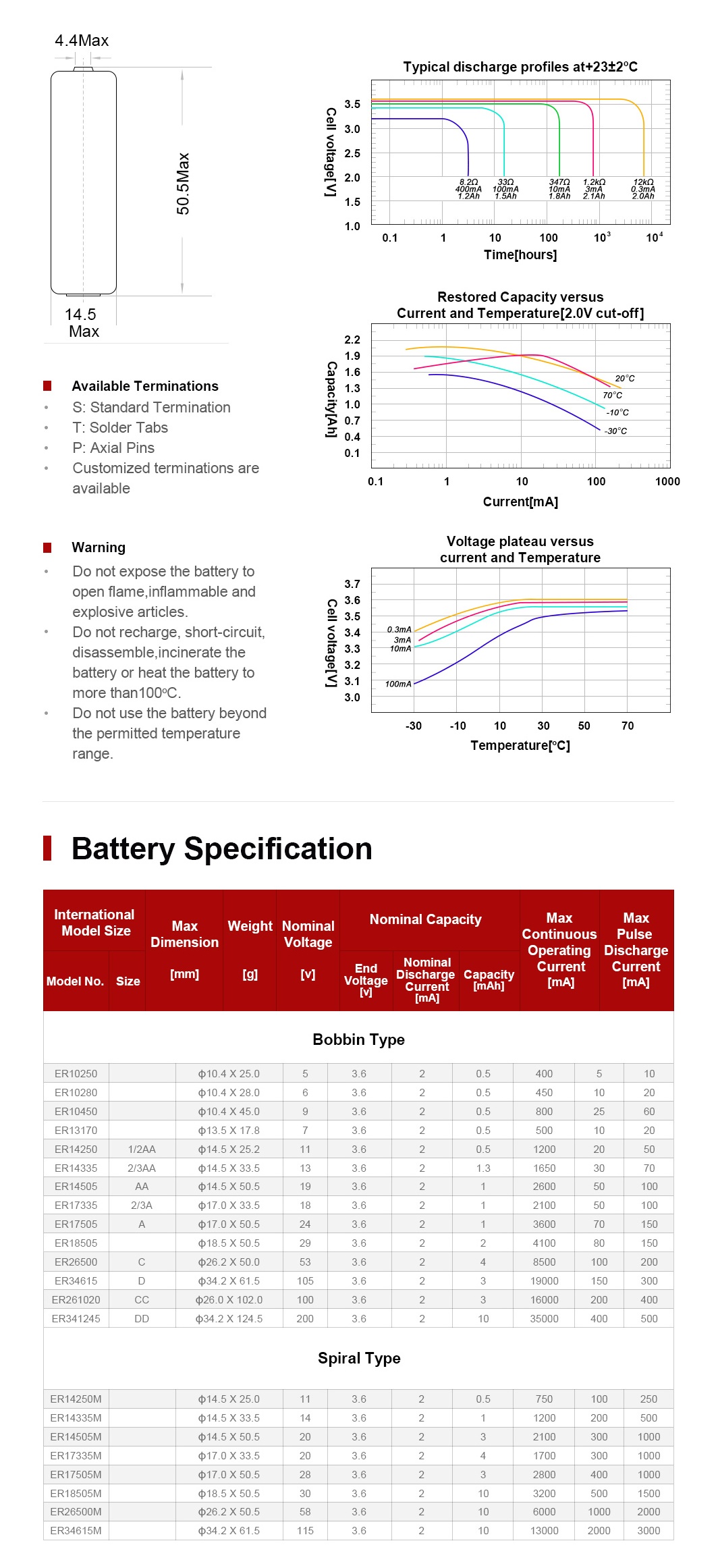

ER14505M Discharge Curve Diagram
Applications
Mainly used for smart meters (water, electricity, gas meters), computer-powered power supplies, medical devices, wireless communication, oil drilling, portable communication equipment, scientific research instruments, automotive electronics, military equipment, etc.
