BM-5-16/280 1P5S LF280 16V 280Ah LiFePO4 Battery Module
EVE BM-5-16-28 1P5S LF280 16V 280Ah LiFePO4 Module Utility ESS
- Category: LiFePO4 Battery
- Tag:

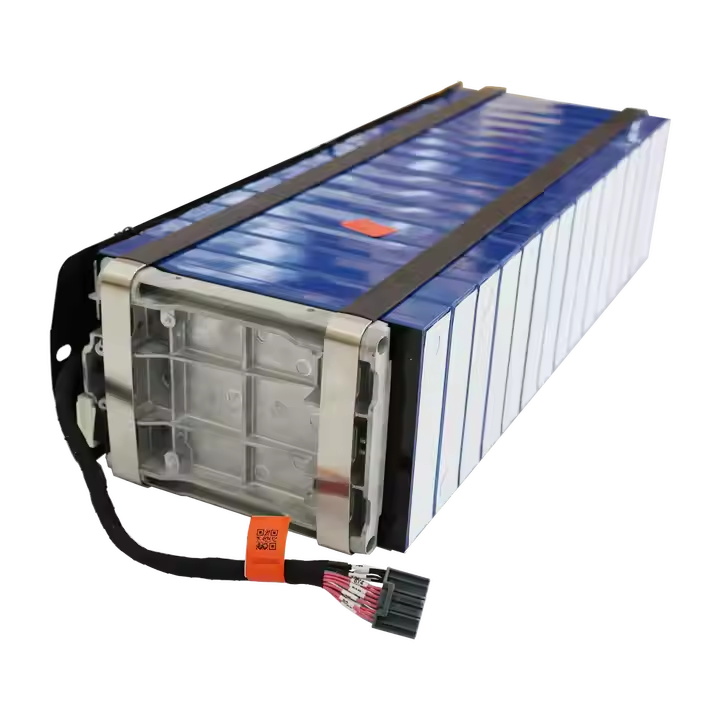

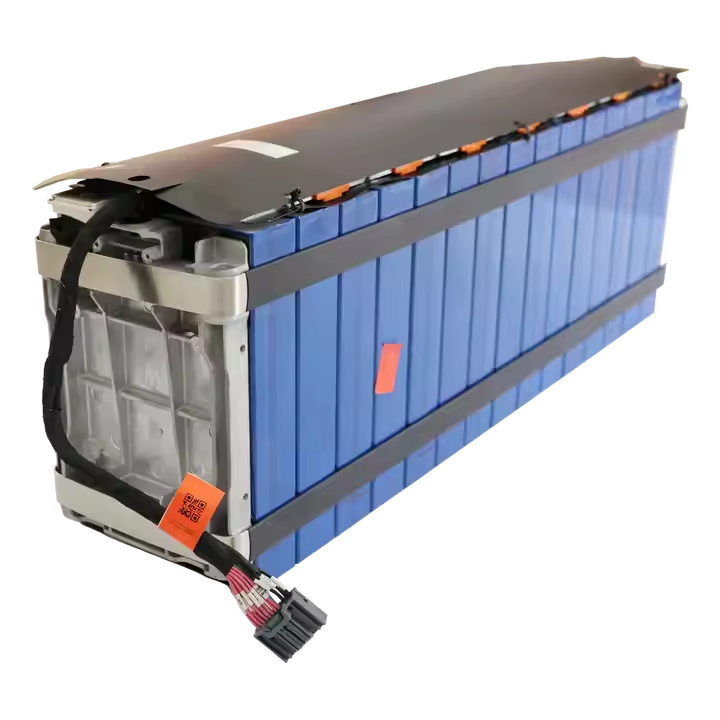

The EVE BM-5-16-280 battery module consists of 1P5S LF280 in series, and is integrated with acquisition wires to collect voltage and temperature inside.
For more models, please contact online customer service for details.
Module Feature
1. Integrated Liquid Cooling Ultra-long life
2. Safe and Stable, Reliable, and Efficient
3. Efficient Grouping Safety
4. Multiple Fire Protection Ultra-high energy
Parameters of Battery Module
| Parameter | Specification |
Model | BM-5-16-280 |
Nominal Capacity | 280Ah |
Nominal Voltage | 16V |
Disposition | 1P5S |
Weight | 25.8±1Kg |
Energy Density | 4.480KWh |
Maximum Charge/Discharge Current | 1C/1C |
Discharge Operating Temperature | -20℃~55℃ |
Charge Operating Temperature | 0℃~45℃ |
Dimension(L*W*H) | L486*W177.6*H223.66mm |
Cell Advantage
1. Automated: Automated production, Product Consistency
2. Customized Custom-made: Customer Demand Customization
3. Environmentally Friendly: Passed environmental system certification
4. Ultra-Safe: Explosion-proof / Noleakage
5. Stable: Low IR / High CR / Discharge Steadily
6. Super Long: Ultra-long life cycle
Parameters of LF280 Cell
Item | Parameter |
Nominal Capacity | 280ah |
Typical Voltage | 3.2V |
AC Impedance Resistance (1 KHz) | ≤0.25mΩ |
Standard charge/discharge Current | 0.5C |
Cut off the voltage of the charge/discharge | 3.65V / 2.5V |
Max.. continuous charge/discharge current | 1C |
Max.. pulse charge/discharge current(30S) | 2C |
Recommended scope of SOC | 10%~90% |
Charging temperature | 0~55℃ |
Discharging temperature | -30~55℃ |
Storage temperature: Short-term (within 1 month) | -20~45℃ |
| Storage temperature: Long-term (within 1 year) | 0~35℃ |
Storage humidity range | ＜90% |
Self-Discharge rate per month | ≤3%/month |
Dimension | 207*72*173.7mm |
Weight | 5.42±0.3kg |
Cycle life at 25℃ | ≥6000 cycles @0.5C |
Certifications
1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
5. We support certification according to the needs of our customers to ensure product quality and safe transportation
Application
Mainly used in power storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships. Modules are widely used in the following scenarios, Please contact online customer service for details.
Battery Safety Specification
During the use of batteries, the following requirements must be observed
1) Do not remove the battery from its original packaging before use.
2) Do not place the battery scattered together to avoid an accidental short circuit.
3) Do not heat the battery above 100 °C or burn it.
4) Do not weld directly on the surface of the battery; use a battery pre-equipped with welding feet or leads.
5) Do not mix new and used batteries, or batteries from different places of origin.
6) Disassembling and dissecting the battery is strictly prohibited.
7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
