3.2V PC-0B1-54174L4-AF 230Ah Prismatic Rechargeable LiFePO4 Battery Cell

3.2V PC-0B1-54174L4-AF 230Ah Prismatic Rechargeable LiFePO4 Battery Cell

3.2V PC-0B1-54174L4-AF 230Ah lifepo4 battery cell long life Long life and high safety, please contact for a free quote!

Characteristics

· High energy density: Energy density ≥180 Wh/kg

· Long service life: Service life of more than 5,500 cycles by Step-charge/1C mode

· High safety and reliability: Meeting the requirements of UL, GB, IEC, RoHS,and other standards and passing all reliability & abuse tests


Specification


Parameter

Specification

Chemistry

LFP/Gr

Dimensions

L174*W53.5*H204mm

Rated capacity

230Ah

Rated voltage

3.2V

Application

BEV (long life)

Nominal Energy



747 Wh @ 0.33C

724 Wh @1C

Voltage Range

2.5-3.65V

2.0-3.65V

Impedance(1KHz)

≤ 0.28 mΩ

Shipping capacity

92±1Ah

Working Temperature

Per month ≤3%

Storage Temperature

-30℃~60℃

Cell Weight

4.19±0.10 Kg

Energy Density

180 Wh/kg （25±2°C, 0.33C）

380 Wh/L

Cycle Life@25°C

≥ 6000 Cycles

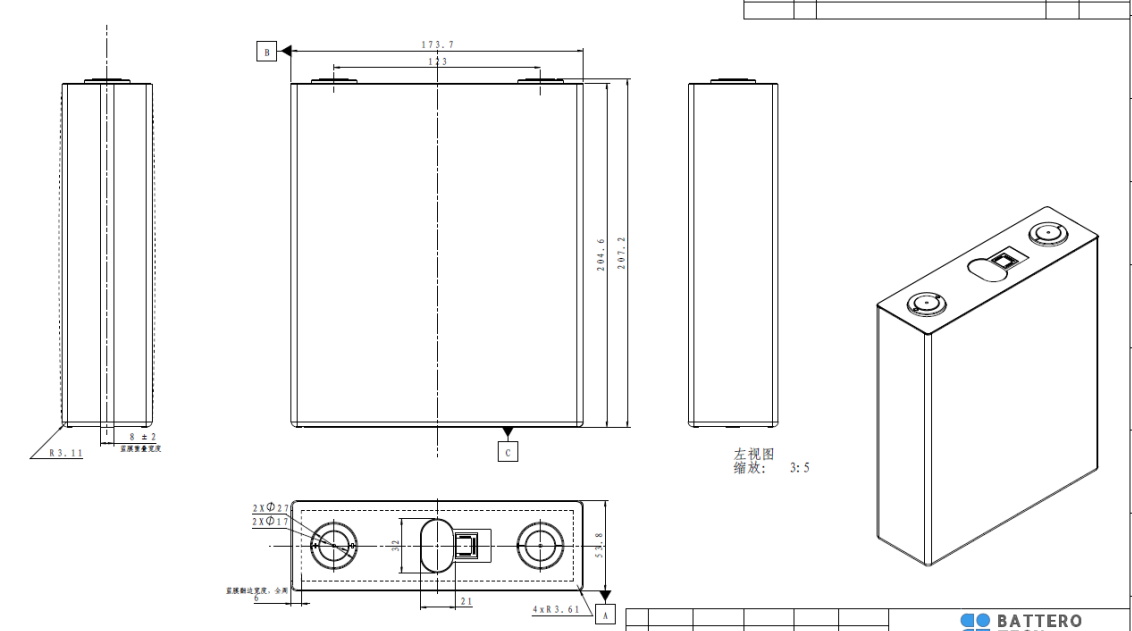

Dimension and Certification



dimensioncertification



Safety instruction

· During use, keep away from heat source and fire source. Do not beat the battery. Do not fall or impact the battery.

· Direct welding of the battery and puncture of the battery with nails or other sharp objects are prohibited.

· It is forbidden to turn the battery upside down, and avoid hitting, throwing, trampling and bending the battery.

· Do not short-circuit the battery to avoid danger and serious damage to the battery.

· Dispose of discarded batteries safely and properly. Do not throw them into fire or water.

· This battery can only be charged by a special charger for lithium-ion battery
