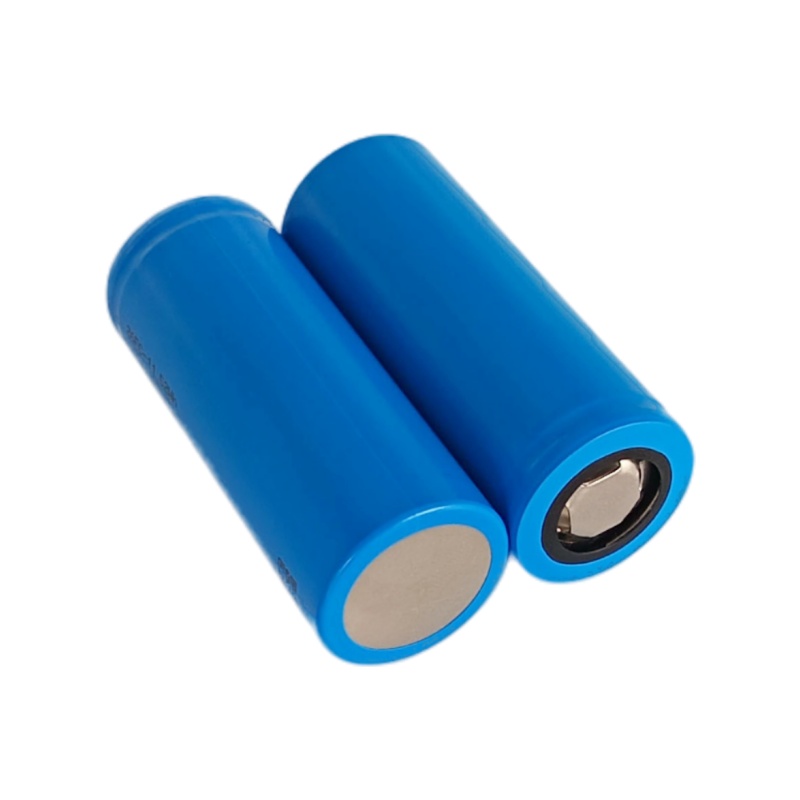

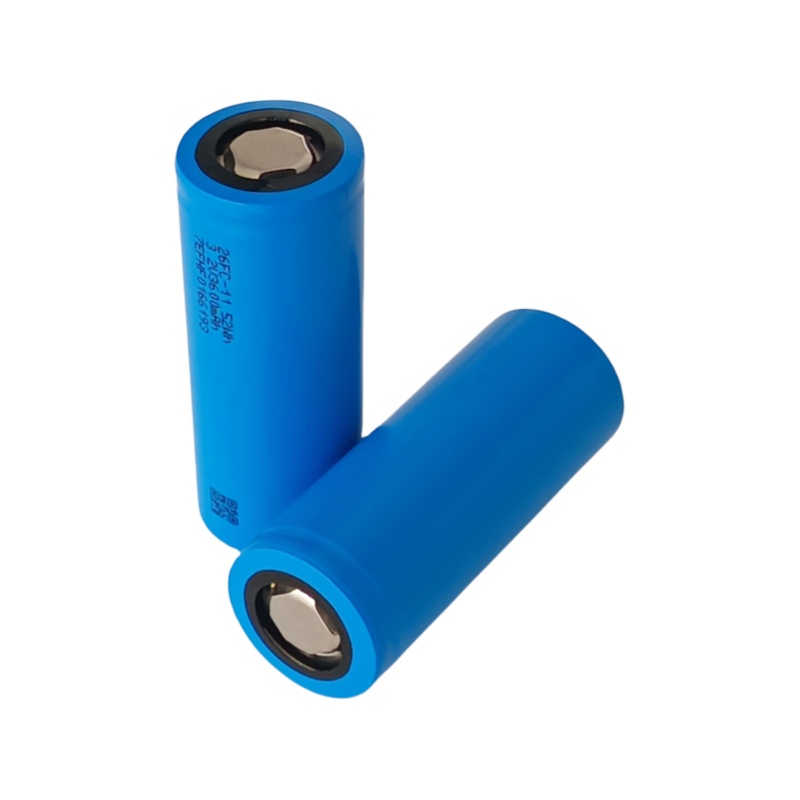

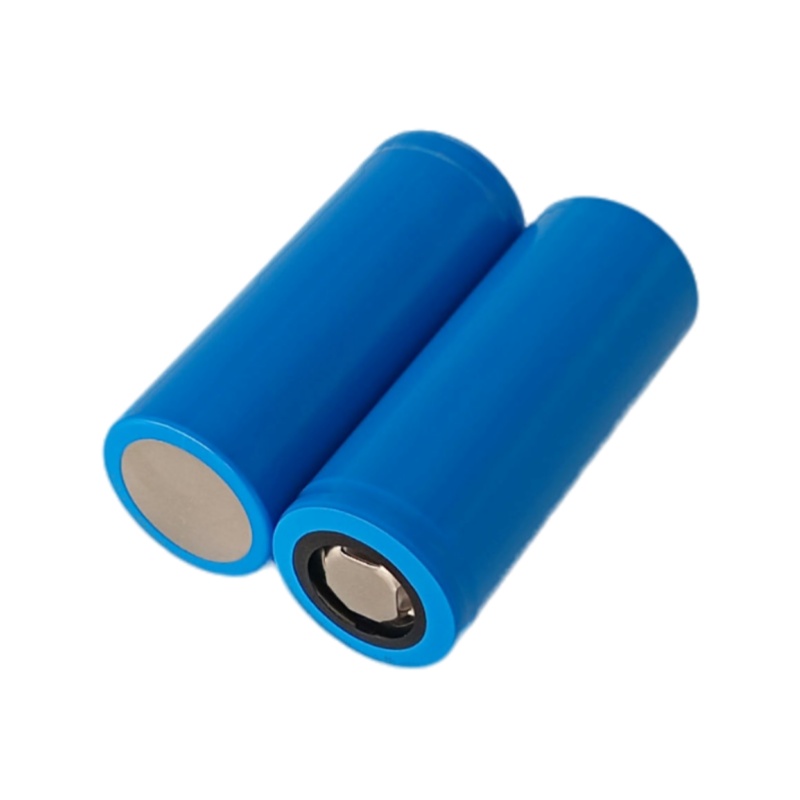

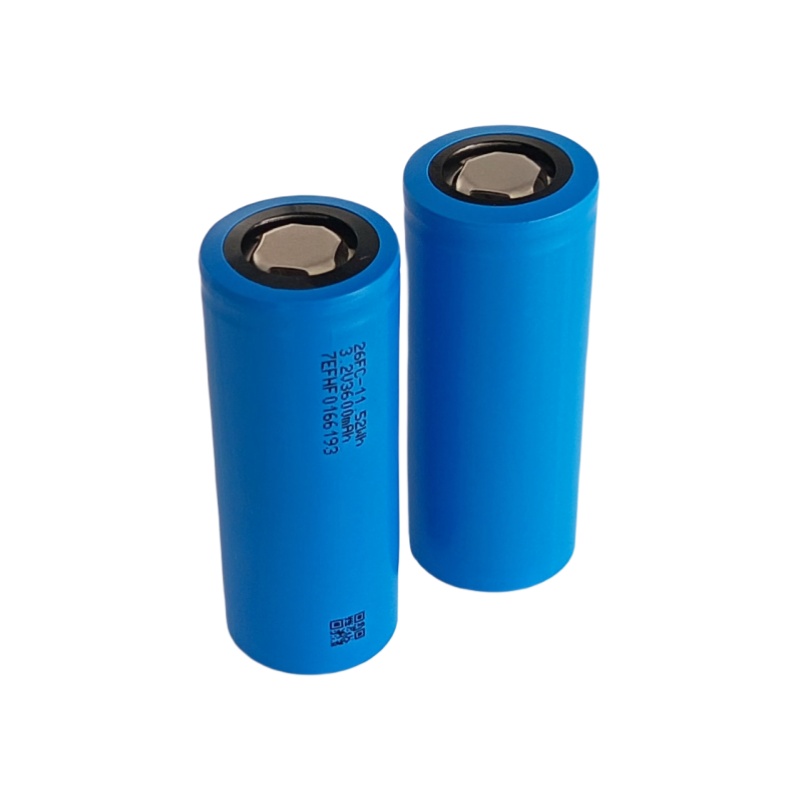

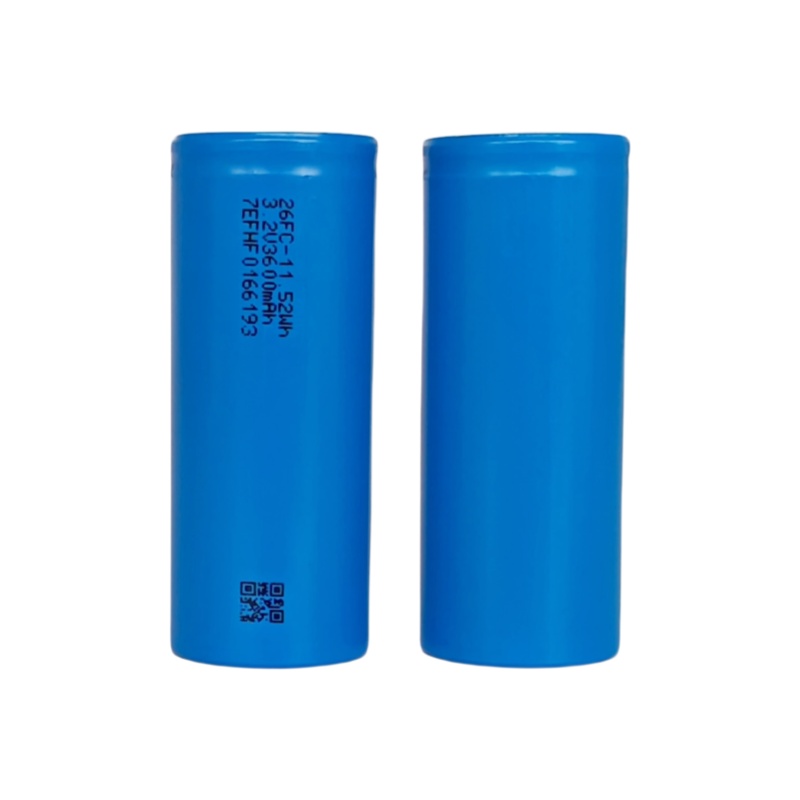

JGNE 3.2V 3600mAh Li Ion 26650 Rechargeable LiFePO4 Battery Cell
The JGNE 3.2V 3600mAh li ion 26650 rechargeable LiFePO4 battery cell features high safety, long lifespan, good consistency and etc.
- Category: LiFePO4 Battery Cell
- Tag:
The JGNE 26FC-11.52Wh lifepo4 battery with a capacity of 3600mAh and a nominal voltage of 3.2V. It features high safety, long lifespan, good consistency and etc. This battery has obtained the following certifications: CE, UN38.3, IEC62133, IEC62619, UL1973, UL9540A, GB36276, ROHS, REACH, 3C, Regulation (EU)No 2023/1542.
Feature
1. High Safety and Stability
2. Good Consistency
3. Environmental Benefits
4. Long Lifespan,Reliable
5. Lightweight, High-performance
Specification
| Item | Specification |
Nominal Capacity | 3600mAh (0.2C, current value of 3600mA at 1C） |
Nominal Voltage | 3.2V |
AC Internal Resistance | ≤25mΩ (AC 1kHz measurement at 25±2℃) |
Max. Charging Current | 3.6 A@25℃ |
Max. Continuous Discharge Current | 10.8 A (25℃, not for cycle life) |
Pulse Discharge Current | 20A, 5s |
25℃ Cycle Life | 7000@1C (50%DOD) 4000@1C (80%DOD） 2000@1C (100%DOD） |
Working Temperature (Including Temperature Rise) | Charge:0~60℃ Discharge:-30℃~65℃ |
Cell Weight | Approx. 84g(Including Casing) |
Dimension | Height: 65.7±0.3 Diameter: ≤26.45 |
Dimension
Item | Dimension Including Casing (mm) |
h | 65.7±0.3 |
d | ≤26.45 |
Applications
