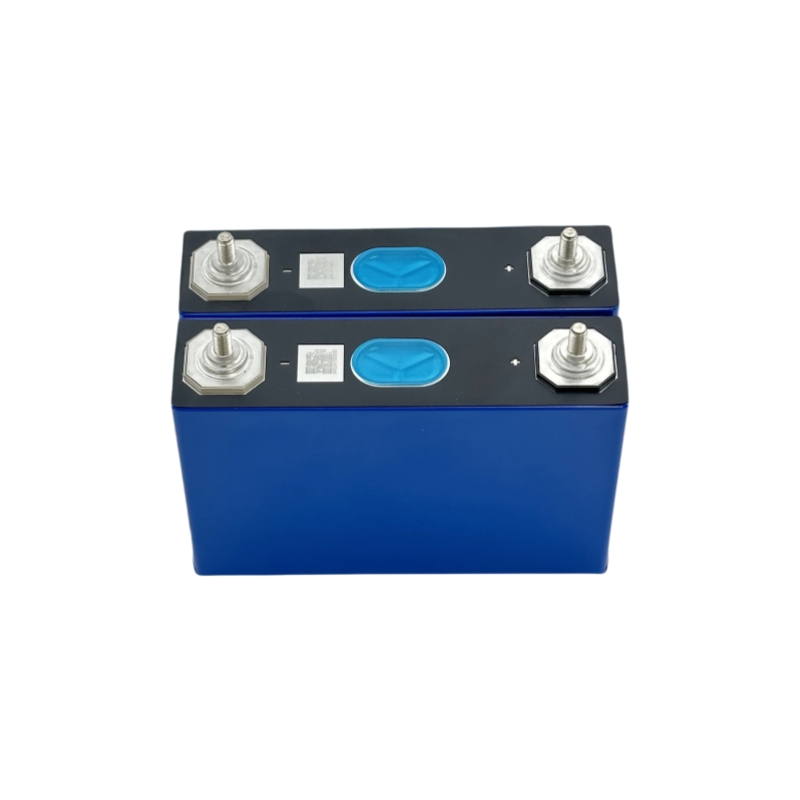

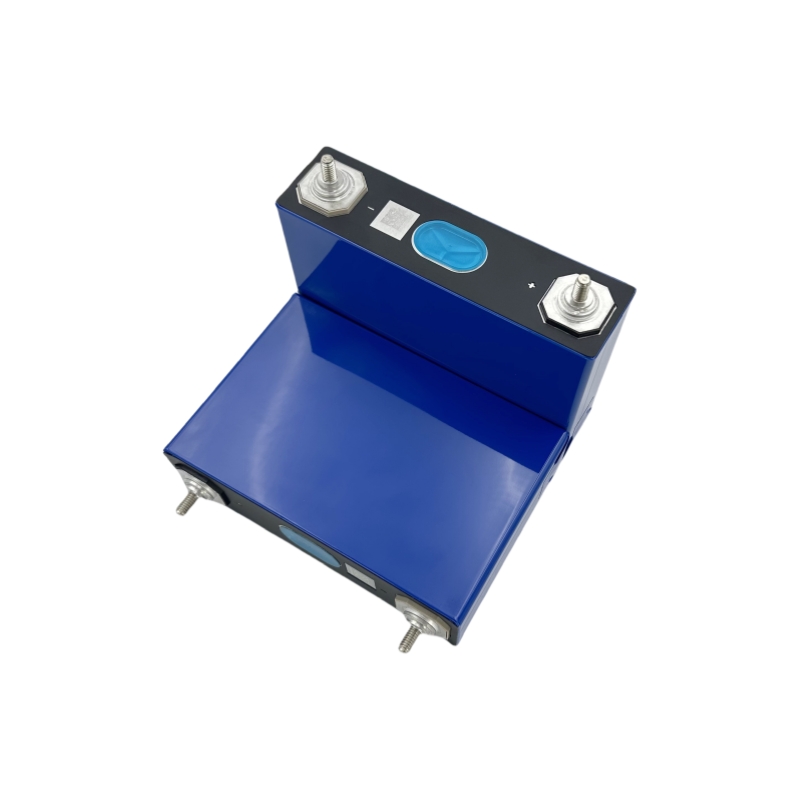

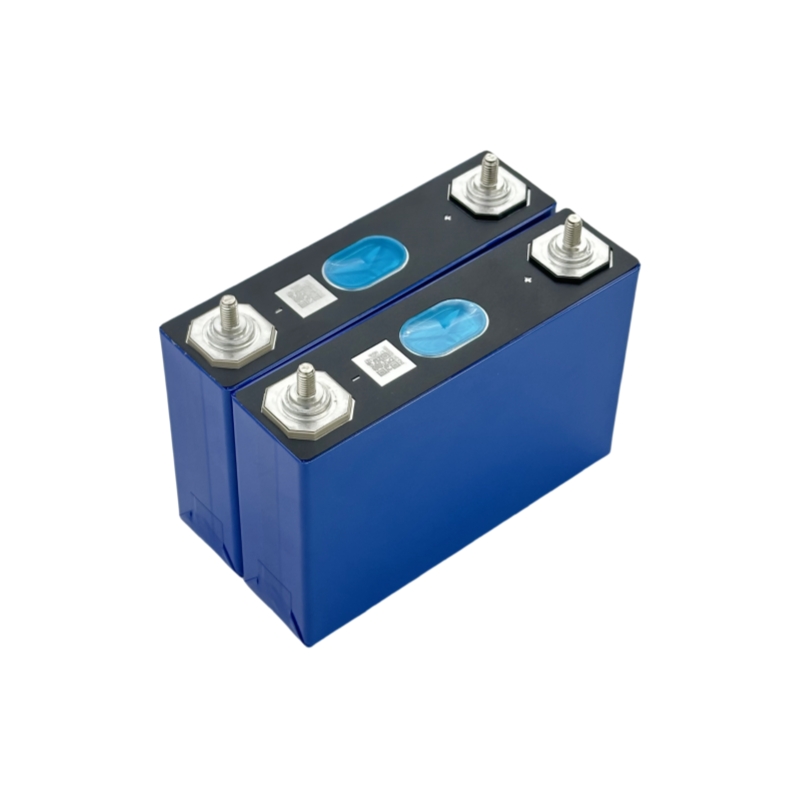

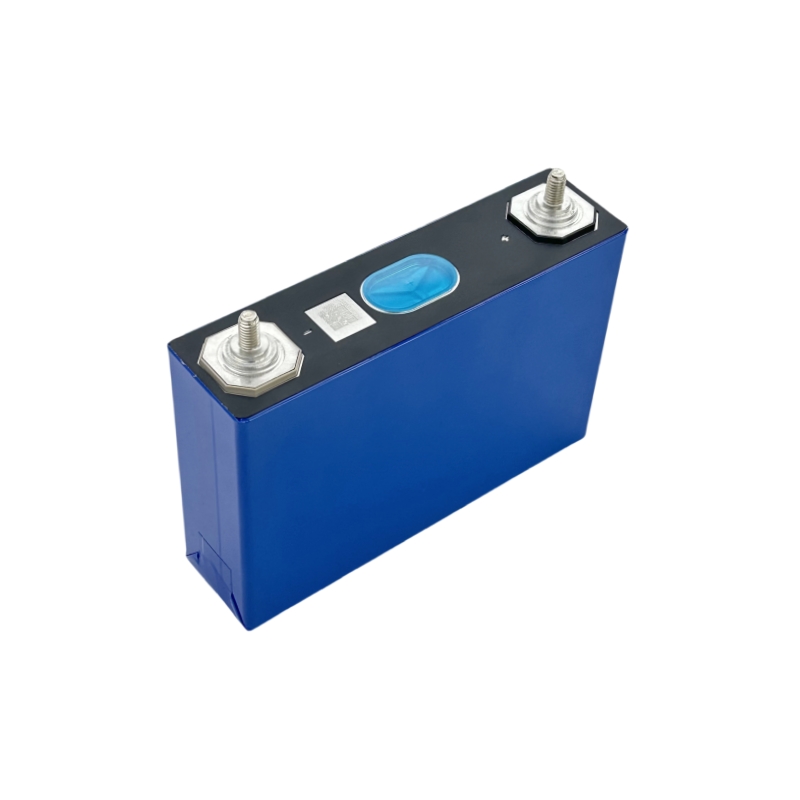

EVE Energy LF50L 3.2V 50Ah Prismatic LFP Li-ion LiFePO4 Battery Cell

EVE LF50L 3.2V LiFePO4 Cell Prismatic Li-ion LFP Battery with Aluminum Shell

Brand new Grade A quality EVE LF50L Lifepo4 cells , perfectly flat without bulge, with excellent voltage and impedance.

Specifications

Item	Specifications
Battery Type	LFP
Rated Capacity	50Ah; 0.5C 25℃±2℃ 2.5-3.65V
Rated Energy	160Wh; 0.5C 25℃±2℃ 2.5-3.65V
Nominal Voltage	3.2V; 0.5C 25℃±2℃ 2.5-3.65V
ACR	≤0.5mΩ; AC 1kHz 25%SOC
Weight	1060±50 g
Charging Cut-off Voltage	3.65V
Discharging Cut-off Voltage	2.5 (0℃<T≤65℃) 2.0 (-20℃<T≤0℃)
Standard Charging/Discharging Current	0.5C/0.5C; 25℃±2℃
Maximum continuous charging/discharging current	1C; 25℃±2℃
Cycling Performance	5000 Cycles 0.5C/0.5C; 25℃ Standard Cycle 2000 Cycles 0.5C/0.5C; 45℃ Standard Cycle
Operation Temperature	0~65℃; charge -20~65℃; discharge
Energy Efficiency	25℃, Energy Efficiency

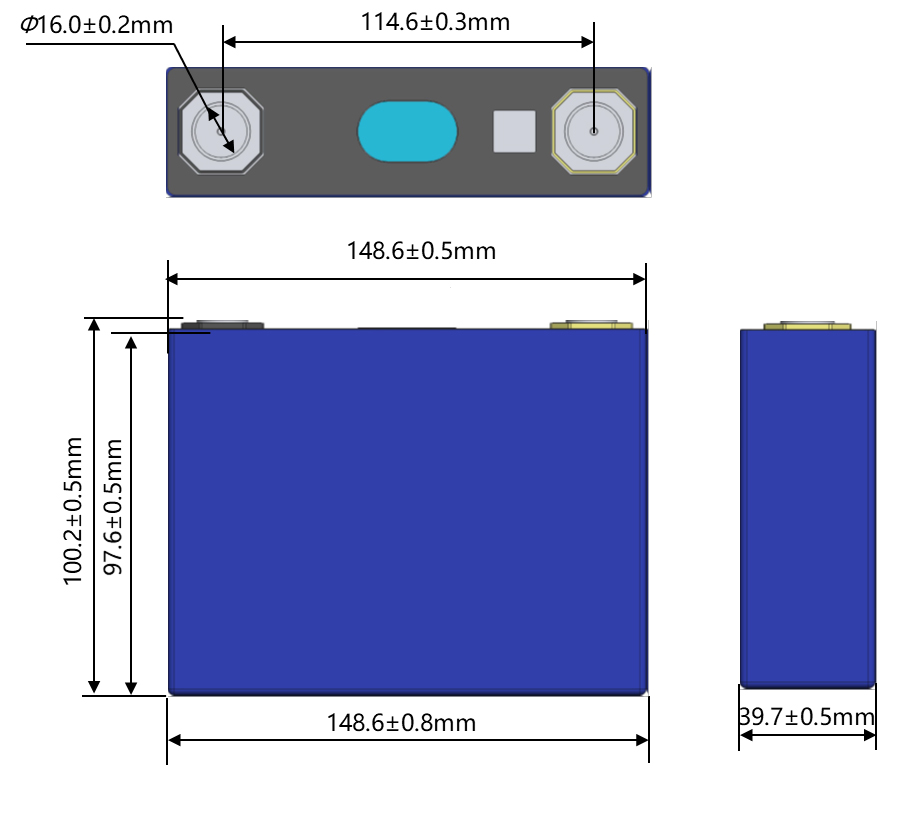

Dimension	Terminal Height(H): 100.2±0.5mm Shoulder Height(h): 97.6±0.5mm Width (L): 148.6±0.8mm Thickness(T): 39.7±0.5mm (200kgf; Delivery SOC)

1. Do not immerse the battery in water and keep it dry when not using；

2. Do not strike, throw or subject the battery near a fire or in extremely hot conditions；

3. Charge with specified charge according to charging requirement；

4. Do not reverse the positive (+) and negative (-) terminals；

5. Do not put the battery into a fire or apply direct heat to it；

6. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals；

7. Do not ship or store the battery metal objects, such as necklaces, hairpins, etc；

8. Do not knock, throw, tread, bend, etc；

9. Do not directly solder the battery terminals；

10. Do not pierce the battery casing with a nail or other sharp object.
