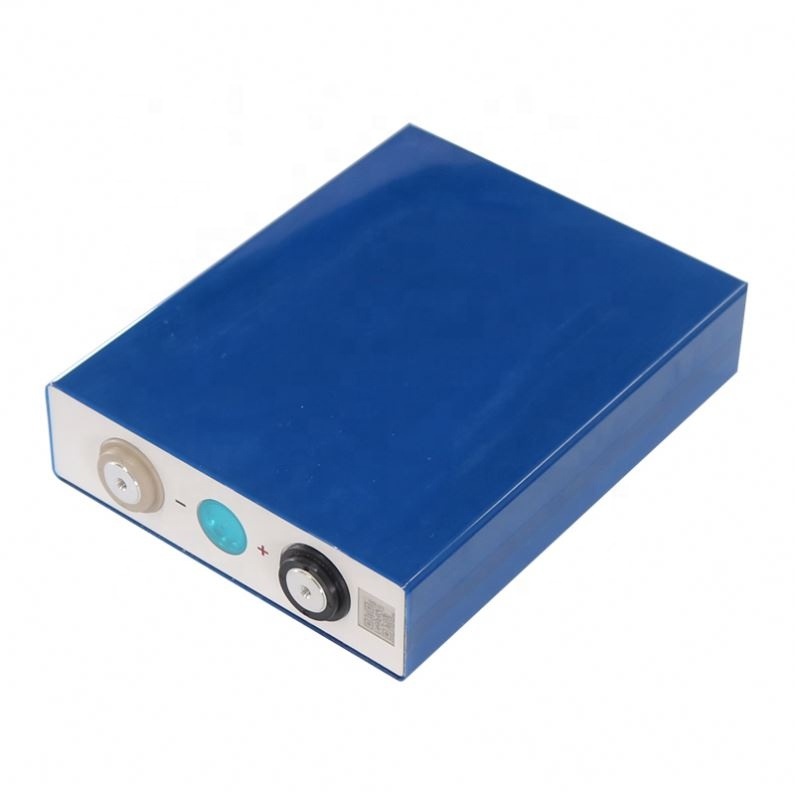

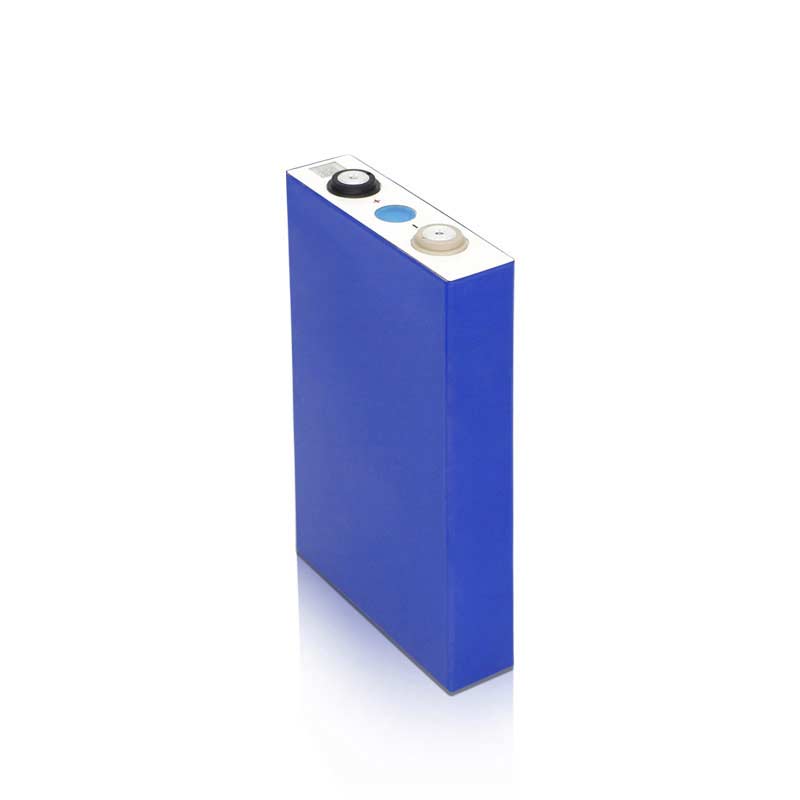

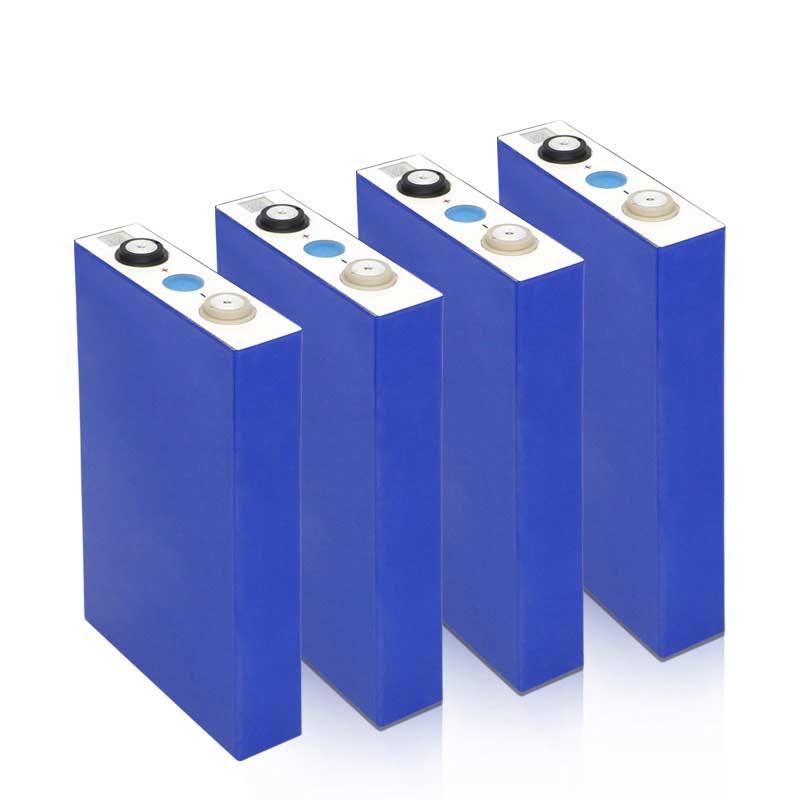

EVE LF80 3.2V 80Ah Lithium LiFePO4 Battery Cell
EVE LF80 3.2V80Ah Prismatic Lithium iron phosphate battery power cell engineering machinery
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Model: LF80
Nominal Capacity: 80AH
Nominal Voltage: 3.2V
Weight: 1680g±50g
Dimensions:130.3*36.35*170.5mm
Specifications
No | Item | Parameter Specification | |
1 | Min. Capacity | 80Ah | |
2 | Min. Energy | 256Wh | |
3 | Initial IR | ﹤0.5mΩ | |
4 | Nominal Voltage | 3.2V | |
5 | Weight | 1680g±50g | |
6 | Charging Cut-off Voltage(Umax) | 3.65V | |
7 |
Discharging Cut-off Voltage (Umin) | 2.5V ( T>0°C ) 2.0V ( T<0°C ) | |
8 | Standard Charging Current | 40A | |
9 | Standard Discharging Current | 80A | |

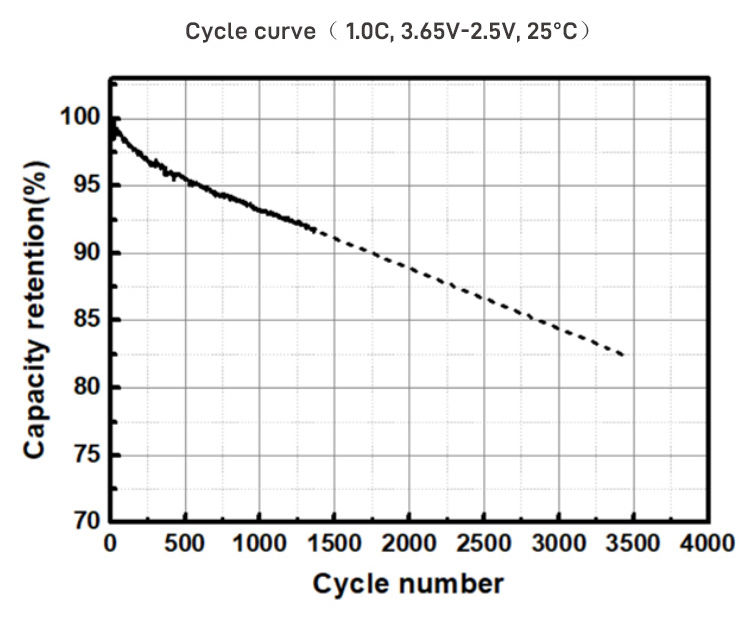

10 | 25°C Standard Cycle | 4000 Cycles | |
11 | 45°C Standard Cycle | 1800 Cycles | |
12 | Operation Temperature | Charging Temperature | 0 ~65°C |
Discharging Temperature | -35~65°C | ||
13 | Storage Temperature | 3 months | 0 ~45°C |
1 month | -20~45°C | ||
14 |
Welding Parameter of Al Busbar | Laser Welding Depth | ≤2.5 mm |
Max Pressure Force on Terminals | 900 N | ||
Max Torque Force on Terminals | 6N·m | ||
Max Temperature Force on Terminals | 130°C | ||
Attentions
For safety usage, please be careful on below：
Warning!
1. Do not immerse the battery in water and keep it dry when not using；
2. Do not strike, throw or subject the battery near a fire or in extremely hot conditions；
3. Charge with specified charge according to charging requirement；
4. Do not reverse the positive (+) and negative (-) terminals；
5. Do not put the battery into a fire or apply direct heat to it；
6. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals；
7. Do not ship or store the battery metal objects, such as necklaces, hairpins, etc；
8. Do not knock, throw, tread, bend, etc；
9. Do not directly solder the battery terminals；
10. Do not pierce the battery casing with a nail or other sharp object.
