GREAT POWER LiFePO4 BATTERY GSP50160119F 100ah 3.2V
GREAT POWER LiFePO4 BATTERY GSP50160119F 100ah 3.2V

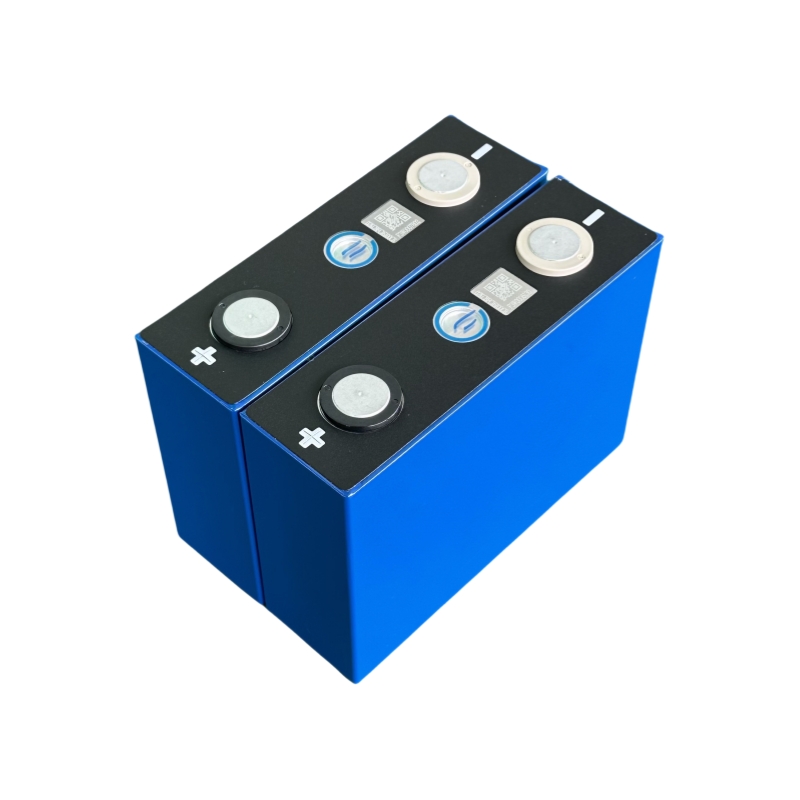

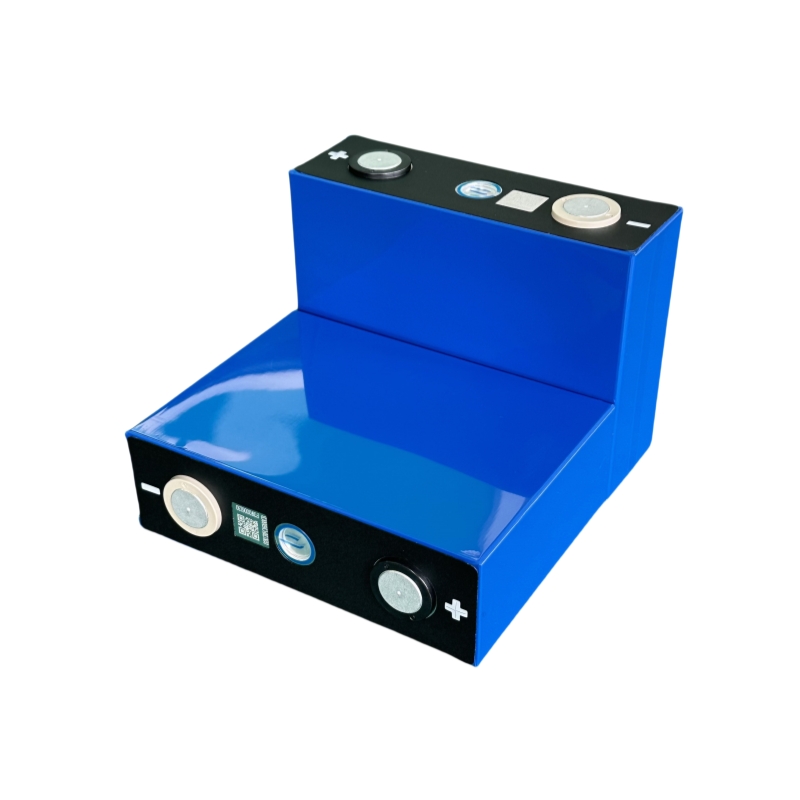

Great Power GSP50160119F 3.2V LiFePO4 100Ah Prismatic Battery Cells

Great Power GSP50160119F 3.2V LiFePO4 100Ah Prismatic Battery Cells With Long Cycle Life.

GREAT POWER LiFePO4 BATTERY GSP50160119F 100ah 3.2V Long-shelf-life LFP Battery for Containerized ESS, DIY LiFePO4 Battery Pack,

Features

· High energy density

· High voltage

· Wide range of operating temperatures

· Long storage life


Parameters



Item

Specifications

Remark

Nominal Capacity

100Ah

0.5C charge 10.5C discharge,25±2℃

Nominal Voltage

3.2V

/

Standard Charge Current

10A（0.2C）

0℃~45℃，0.2C CC（Constant current）

charge to 54.0V，then CV

（constant voltage）charge，

 cut off when charging current≤0.05C.

Operation Voltage

2.5-3.65V; T>0℃

2.0-3.65V; T≤0℃

0℃~45℃，do not exceed 0.5C

Cell Impedance(ACR)

≤0.5m2

Fresh cell, internal resistance measured at

AC 1 kHz after 27% charge

Weight

1.92±0.1Kg



/

Max Continuous

Discharge Current

1C

25±2℃



Max Continuous

Charge Current

1C

25±2℃



Max Pulse

Charge/Discharge Current

1.5C(30s);

2C(30s)

25±2℃



Dimension

160.2*118.6*49.9mm

/

GSP50160119F 100ah 3.2V GSP50160119F 100ah 3.2V

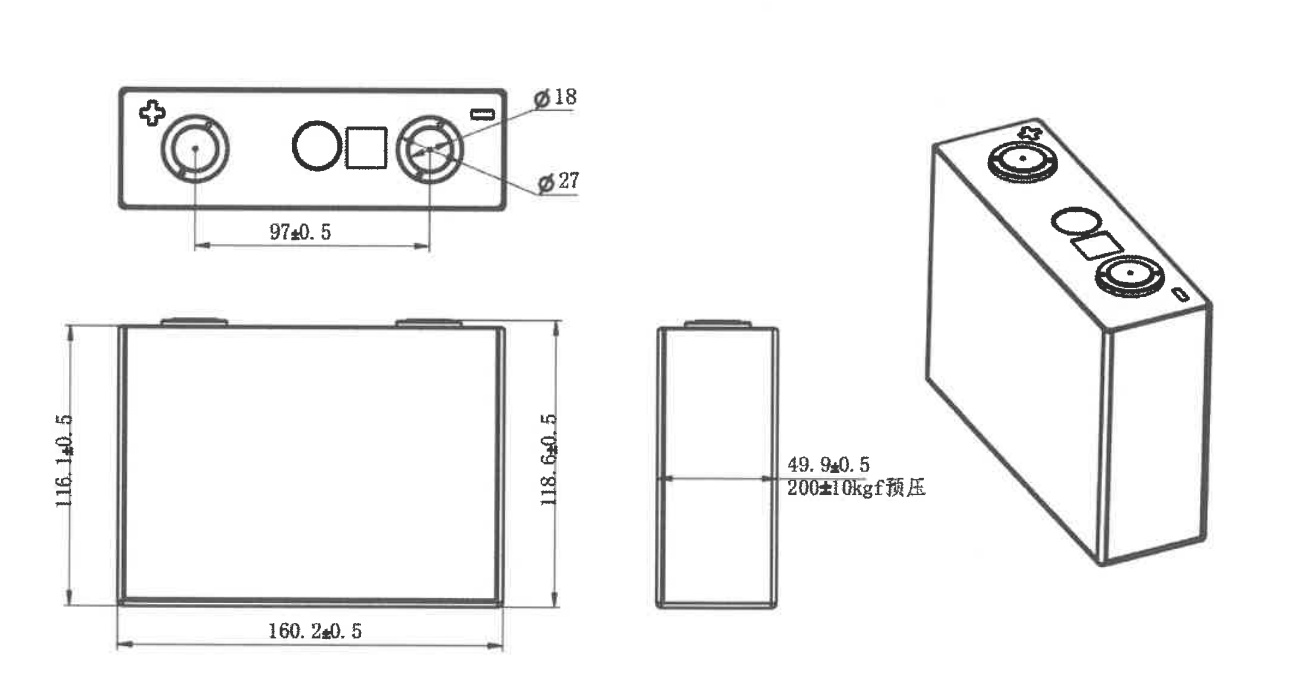

GSP50160119F 100ah 3.2V dimension

Applications

Electric forklifts/electric vehicles/two-wheel/three-wheel/four-wheel vehicles/Battery packs for power vehicles such as beach buggies, environmental protection vehicles, sewage trucks, sweepers, and greenery clippers


GSP50160119F 100ah 3.2V
