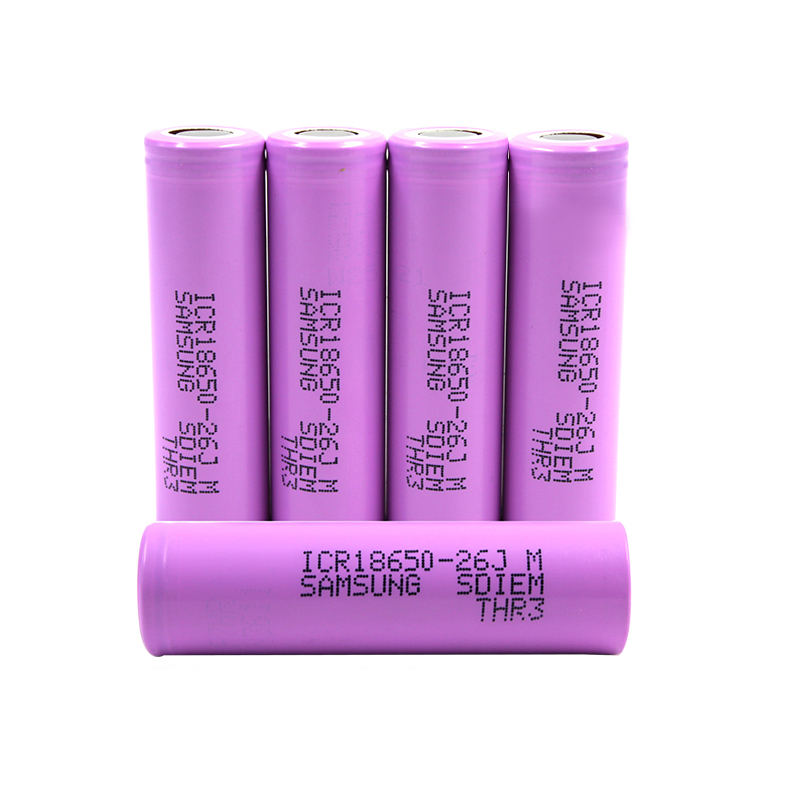

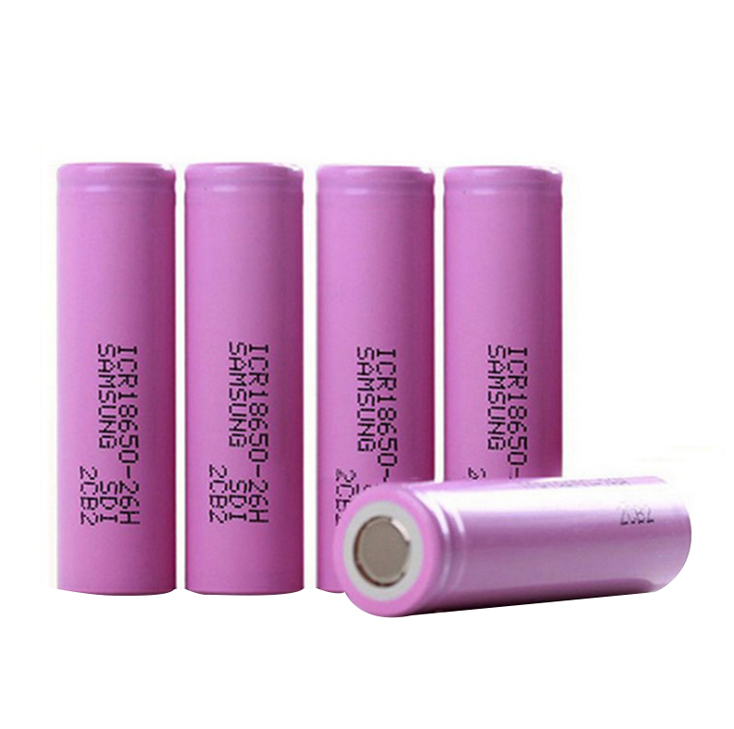

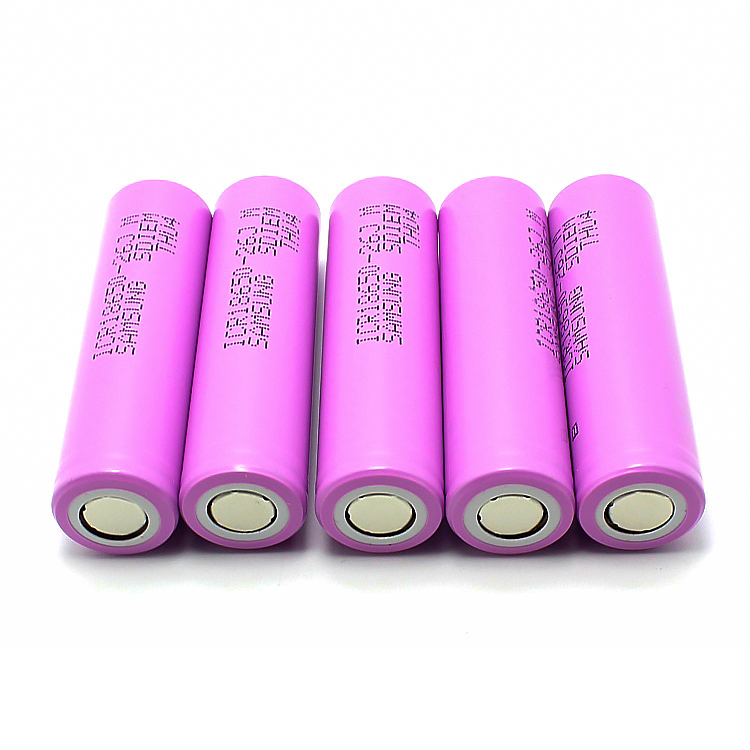

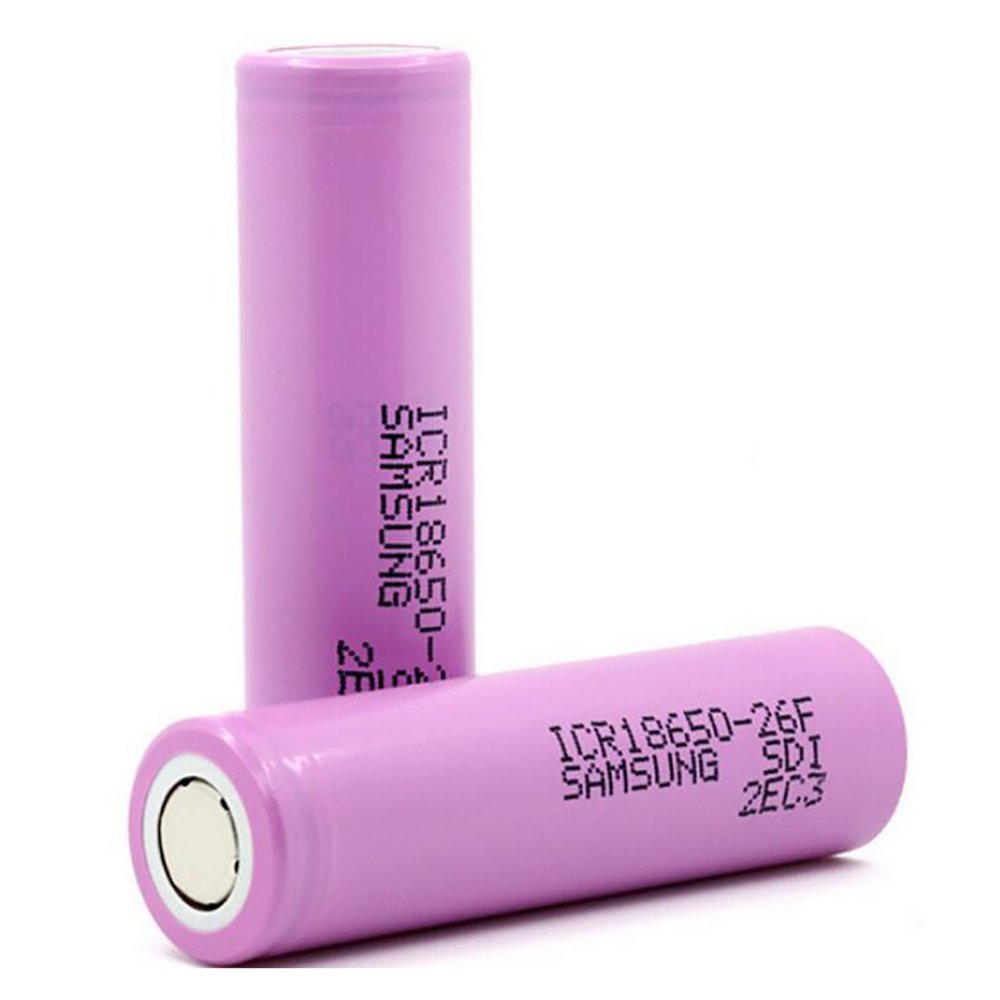

Samsung SDI 2600mAh 18650 Battery 3.7V Rechargeable Lithium Ion Battery
Samsung SDI 100% Original Brand new ICR 18650 battery 2600mah 3.7v for Samsung SDI lithium ion battery cell, Samsung 3.7v ICR 18650 li-ion rechargeable battery
- Category: Lithium Ternary NMC Battery
- Tag: Lithium Ternary NMC Battery
We provide Samsung SDI icr18650-26 series 18650 battery,This is an outstanding cell for those who like high capacity without sacrificing a lot of discharge/drain capability. This is cell is a competitor of the well-known Sony/MuRata VTC6 cell, in which the Samsung 30Q performs very similar and closely with. Many consumers will argue the better of the two, although that is subjective to each persons own demands and needs for their device.
This cell has a high capacity of 2600 mAh in energy and a true maximum continuous discharge/drain rating of 15 amps without any temperature cut involved. It has an outstanding cycle life as well and that should be definitely considered in your purchasing decision, along with its other attributes as well. This cell runs very efficiently and is very stablewhen used 15 amps. This is another great cell that many use in power packs, higher output power banks, BMS's, power tools, and high performance flashlights. This cell has proven itself time and again and is very versatile for may applications.
Specifications
| Item | Specification |
Nominal Capacity | 2600mAh (0.2C, 2.75V discharge) |
Minimum Capacity | 2550mAh(0.2C, 2.75V discharge) |
Charging Voltage | 4.2 ±0.05 V |
Nominal Voltage | 3.7V |
Charging Method | CC-CV (constant voltage with limited current) |
Charging Current | Standard charge: 1300mA Rapid charge : 2600mA |
Charging Time | Standard charge : 3hours Rapid charge : 2.5hours |
Max. Charge Current | 2600mA(ambient temperature 25℃) |
Max. Discharge Current | 5200mA(ambient temperature 25℃) |
Discharge Cut-off Voltage | 2.75V |
Cell Weight | 47.0g max |
Cell Dimension | Height : 65.00mm max Diameter : 18.40mm max |
Operating Temperature | Charge : 0 to 45℃ Discharge: -20 to 60℃ |
Storage Temperature | 3 months :-20~45℃(1*) 1 month : -20~60℃(1*) |
Application
-Emergency & Backup Power Solutions: Emergency power supply, UPS systems, backup power for critical devices
-Consumer Electronics & Home Appliances: LED lighting, flashlights, home appliances, communication devices, and telephone equipment

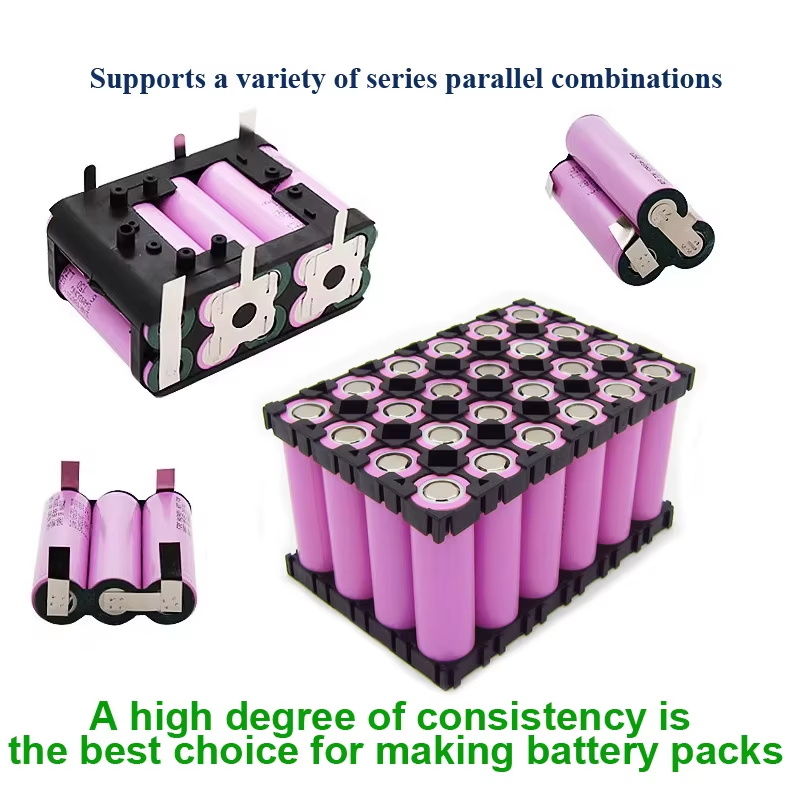

-Outdoor & Mobility Applications: Outdoor sports gear, electric transportation (e-bikes/scooters), solar-powered lawn tools, remote controls
-Tools & Medical Equipment: Power tools, hobby electronics, portable medical devices
-Renewable Energy & Tracking Systems: Solar energy storage, GPS devices, remote monitoring systems
