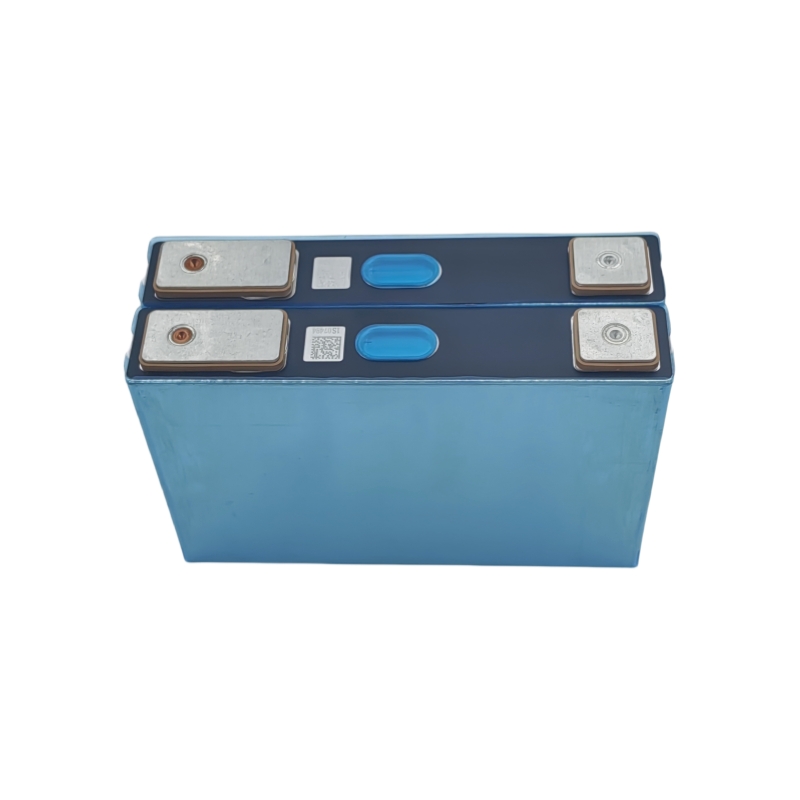

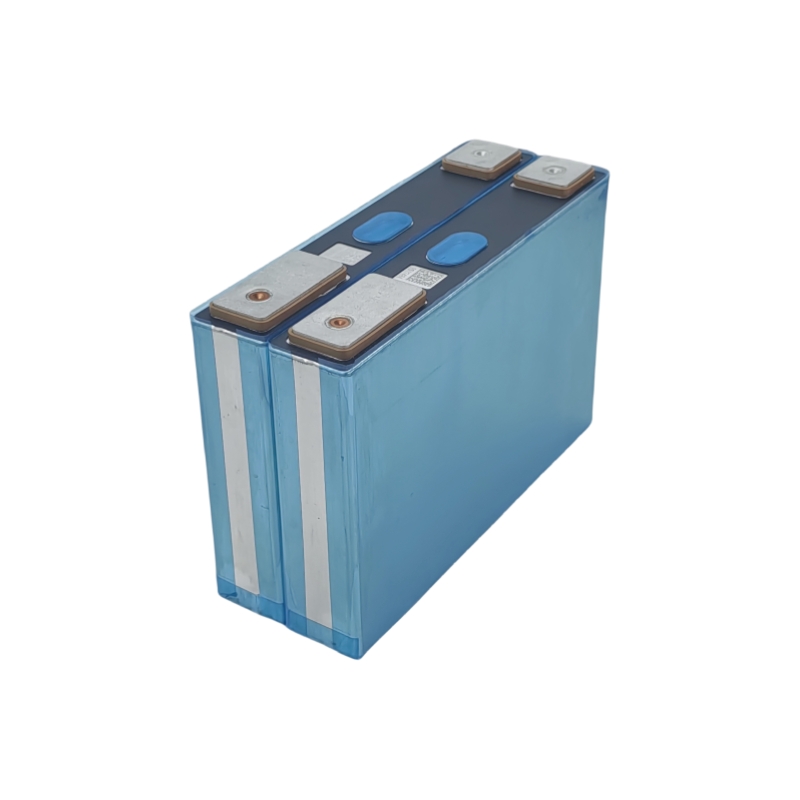

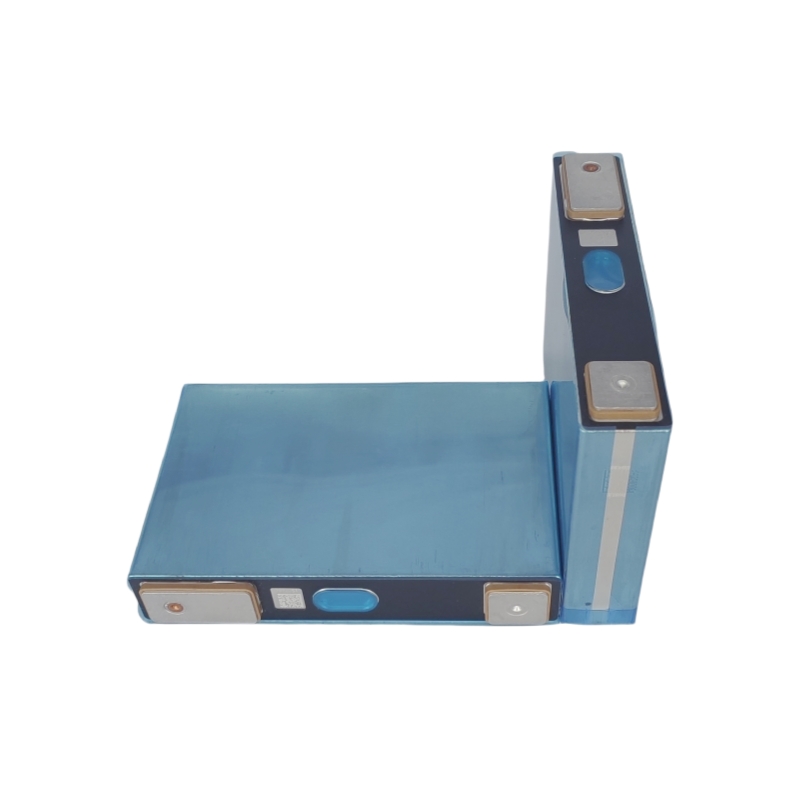

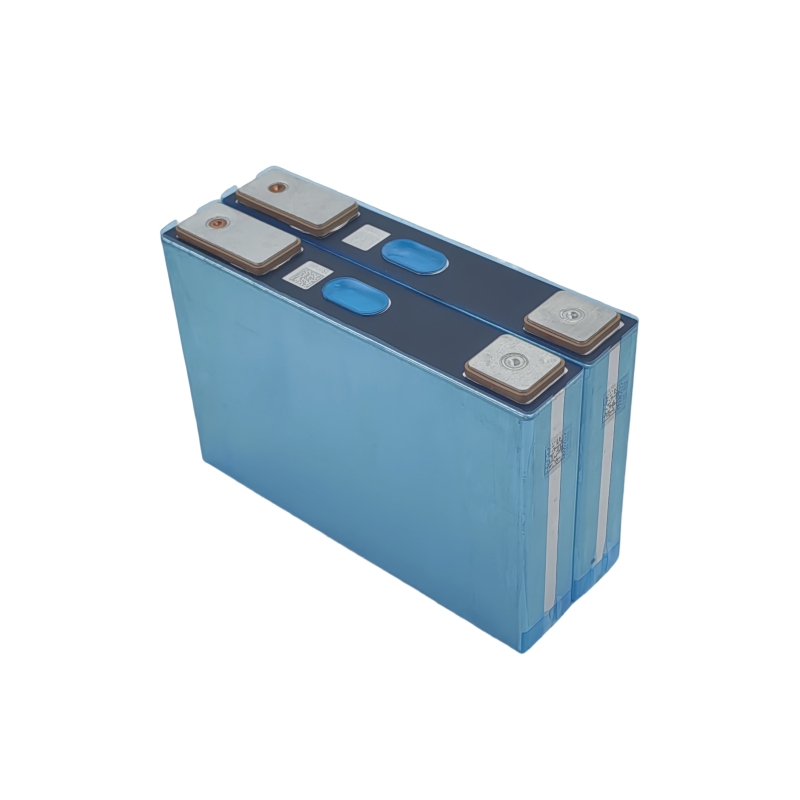

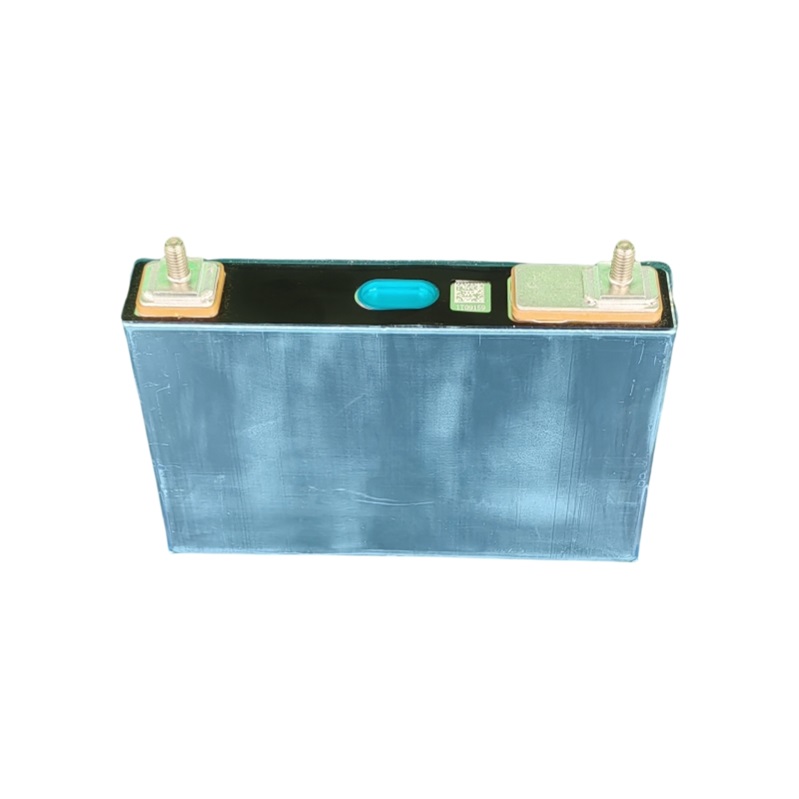

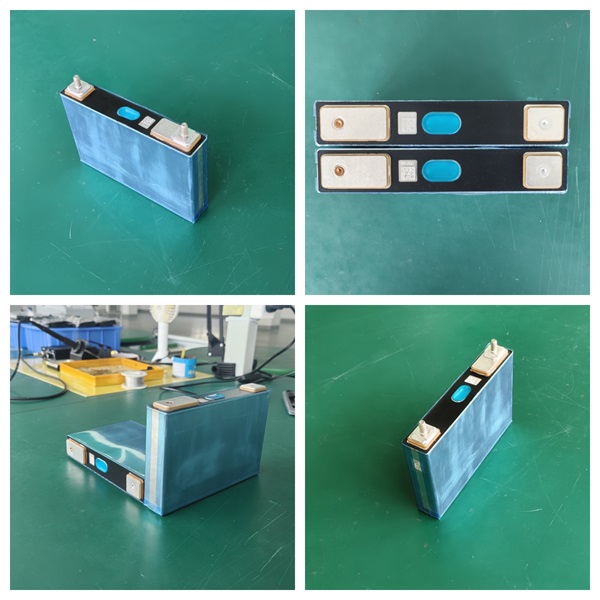

Gotion 3.7V 55Ah NMC811 Ternary Llithium ion Rechargeable Battery
Gotion 3.7V 55Ah NMC811 Ternary Lithium-ion Rechargeable Battery With High Discharge Rate 5C 8C
- Category: Lithium Ternary NMC Battery
- Tag: Lithium Ternary NMC Battery
Gotion 3.7V 55Ah NMC811 Ternary Llithium ion Rechargeable Battery With High Discharge Rate 5C 8C
Feature
1. Qualified for UN38.3/MSDS, RoHS, CE, TUV, UL with high safety
2. More than 3000 cycles under the designed working condition
3. The integral safety valve is used to enhance safety
4. High Energy Density, High Discharge Rate 5C 8C
Specifications
Item | Specification | Remarks |
Nominal Voltage | 3.65V | 1C |
Rated Capacity | 55Ah | 1C，25℃ |
Operation voltage | 2.8V～4.3V | 25℃ |
AC Resistance | ≤1.0mΩ | 25℃，50%SOC |
DC Resistance | ≤2.0mΩ | / |
Maximum Charge Voltage | 4.3V | / |
Maximum Continuous Charge Current | 2C | 25℃ |
Maximum Pulse Charge Current | 5C | 25℃， 50%SOC |
Maximum Charge Temperature Range | -20℃～55℃ | / |
Maximum Continuous Discharge Current | 3C | 25℃ |
Maximum Pulse Discharge Current | 8C | 25℃， 50%SOC |
Maximum Discharge Temperature Range | -30℃～55℃ | / |
Dimensions | 27mm*148mm*101mm | / |
Weight | 890g±10g | / |

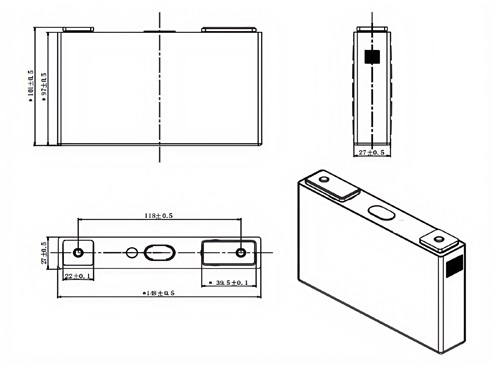

Dimension Details
Applications
Used in applications such as solar cells, energy storage devices, customized lithium battery packs, Lifepo4 battery packs, golf carts, and a variety of energy storage devices and emergency power products.
