Svolt Energy 3.6 V 5000mah NMC Ternary Lithium Battery 21700 Cylindrical Cells
Svolt Energy 3.6 v 5000mah nmc ternary lithium 21700 cylindrical battery cells with high capacity, lightweight, low internal resistance and etc.
- Category: Lithium Ternary NMC Battery
- Tag:
Svolt 3.6 V 5000mAh NMC Ternary Lithium Battery 21700 Cylindrical Cells features high capacity, lightweight, low internal resistance and etc.
Product Features
1. High capacity and stable discharge voltage.
2. Longer working time and high performance.
3. Lightweight and compact size.
4. Good discharge performance and low internal resistance.
5. No memory effect
6. Good discharge capability under high loads and high temperature resistance.
7. Environmentally friendly and non-polluting.
8. 100% genuine original lithium-ion rechargeable battery.
9. Built-in explosion-proof protection and circuit protection.
10. With an explosion-proof valve: In the event of high temperature, short circuit, or other abnormal conditions, internal pressure will rupture the explosion-proof valve to prevent fires and explosions.
Specification
Item | Specification |
Nominal Capacity | 5000 mAh@0.2C |
Nominal Voltage | 3.60V |
Charge Voltage | 4.20V |
Discharge Cut-off Voltage | 2.50V |
Max Charge Current | 1C（4900mA; not for cycle life) |
Max Discharge Current | 3C（14700mA; not for cycle life) |
Storage Temperature | 1 year: -20~25℃ 3 months:-20~45℃ 1 month: -20~60℃ |
Humidity Range | 0~60% RH (non-condensing) |
Operating Temperature | Charge: 0~45℃ Discharge: -20~60℃ |
Internal Resistance | 14±3mΩ (AC Impedance, 1000 Hz) |
Weight | 69±2g |
Cell Dimension | Height: 71.20±0.20mm Diameter: 21.65±0.15mm |

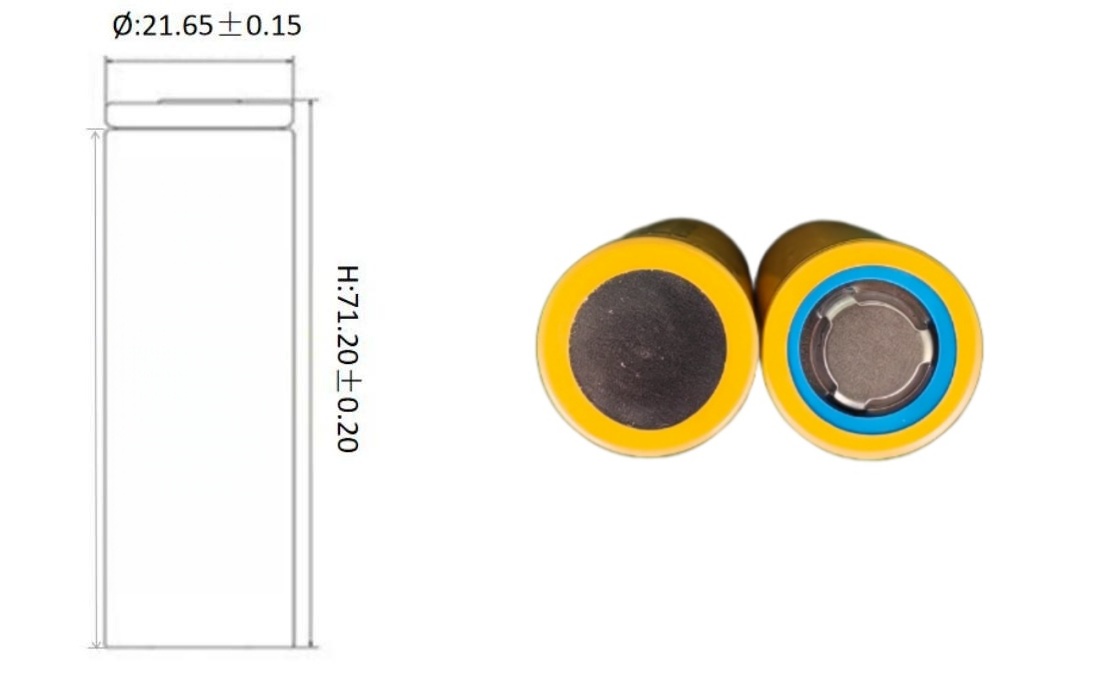

Dimensions and Details
Warnings
Do not use and leave the cell near a heat source such as fire or heater.
Do not use or leave the cell under the blazing sun (or in heated car by sunshine).
Do not use or leave the battery at very high temperature conditions
Do not short circuit, over-charge or over-discharge the cell.
Don’t immerse the battery in water and seawater
Don’t reverse the positive and negative terminals
Do not disassemble or modify the cell.
Do not transport or store the battery together with metal objects such as necklaces, hairpins, coins, etc
Make sure the cell is not with conspicuous damage or deformation.
Don’t connect the cell to an electrical outlet directly.
Mixed use of batteries of different types is not allowed.
Keep the battery away from babies.
Do not directly solder the battery and pierce the battery with a nail or other sharp object
Do not strike, throw or trample the battery.
Do not use cells in strong electrostatic and magnetic occasions
