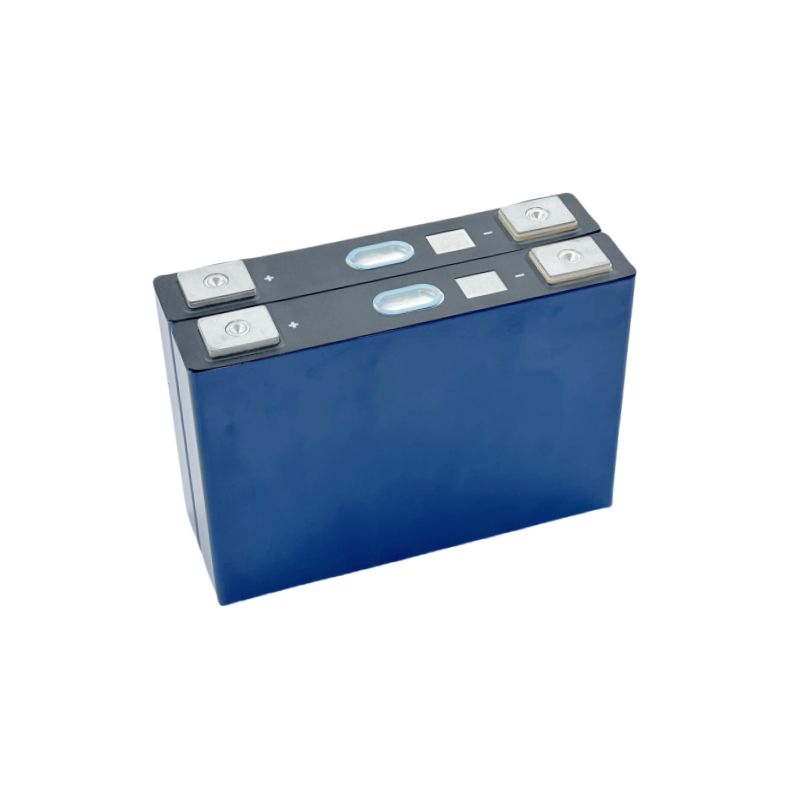

3.7V 58Ah L148N58A NMC Ternary Lithium Battery Cell

CALB 3.7V 58Ah Lithium nickel manganese cobalt oxide battery (NMC 811) Ternary Prismatic Cell, CE, UL, MSDS, and UN38.3 have been approved.

3.7V 58Ah L148N58A Ternary Lithium Battery3.7V 58Ah L148N58A Ternary Lithium Battery


CALB 3.7V 58Ah Lithium nickel manganese cobalt oxide battery (NMC 811) Ternary Prismatic Cell, CE, UL, MSDS, and UN38.3 have been approved. (L148N58A)3.7V 58Ah NMC battery cells were already passed all safety tests(overcharge, over-discharge, over-temperature, short circuit, drop, crush, needle puncture tests, etc.).


Parameters


Item

Parameter

Nominal Capacity

58Ah @1C

Minimal Capacity

58Ah @1C

Work Voltage

2.75-4.35V (T≥0℃)

2.2-4.35V (-30℃≤T＜0℃)

Internal Resistance

0.60~0.80mΩ

Charging Time

~4h

Recommended SOC Window

SOC：5%~97%

Operating Temperature

Charging Temperature: -20~55°C

Discharging Temperature: -30~55°C

Weight

926±20g

Shell Material

Aluminium alloy

Cycle Life

≥2000 cycles

Dimension

148.24±0.15(W)*26.66±0.15(T)*105.9±0.2mm

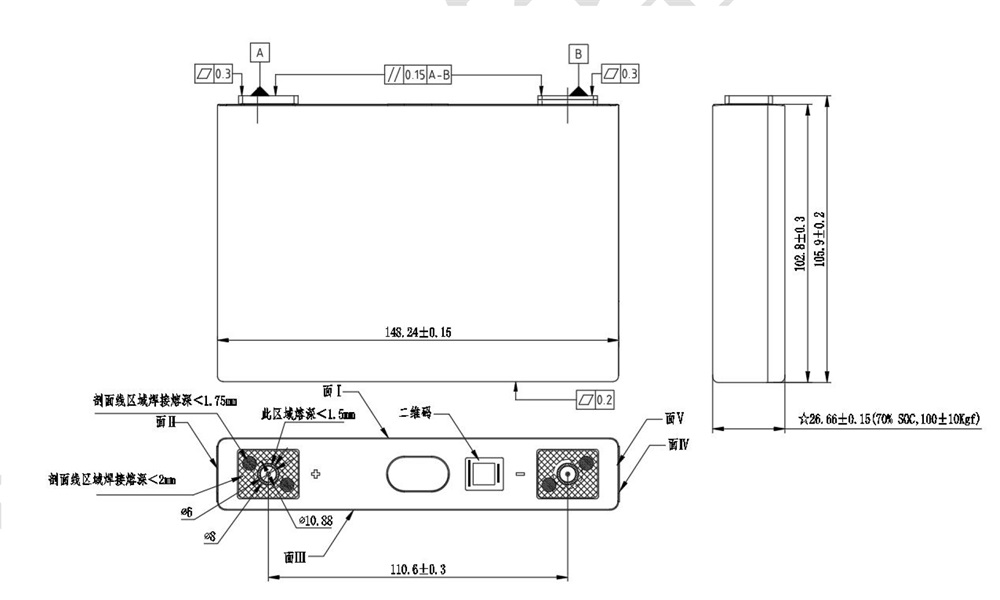

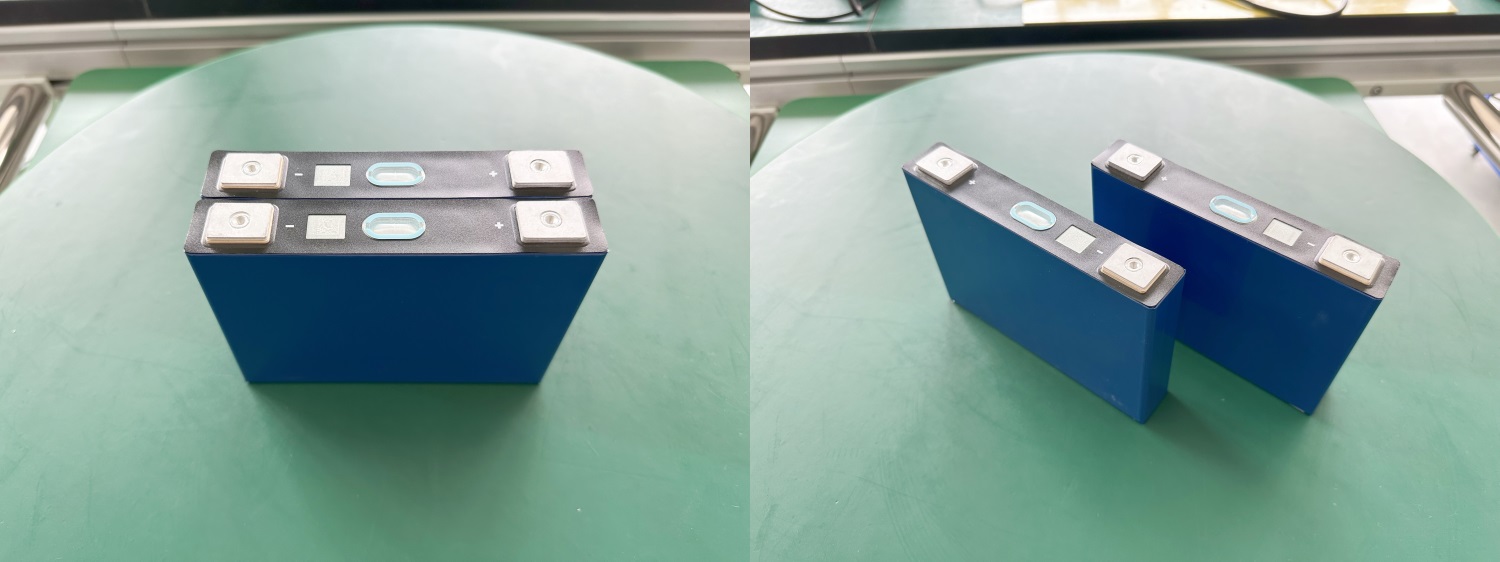

Details and Dimension


3.7V 58Ah L148N58A 3.7V 58Ah L148N58A


dimension
