3.7V 62.5Ah Rechargeable Lithium-ion Ternary NMC Battery Cell
Svolt 3.7V 62.5ah lithium ternary PHEV prismatic battery cell is widely applied in EV, UPS, e-bike, motorcycle, etc.
- Category: Lithium Ternary NMC Battery
- Tag:
SVOLT 3.7V 62.5Ah Brand New Grade A Prismatic Ternary Lithium NMC Battery Cell For EV, e-bike, motorcycle, etc.
Our batteries are sourced directly from SVOLT, ensuring they are Grade A, brand new, and have a guaranteed capacity.
For more information on the SVOLT 3.7V 62.5Ah Ternary Lithium Battery, please contact us.
Features
1. High discharge rate of 3C
2. Long cycle life
3. High energy density
4. Good consistency
5. Low resistance, Better power Performance
6. Better Thermal Stability (Passed 140℃ hot box)
Specification
Item | Specification |
Capacity | ≥62.5Ah(25℃ Discharging current of 62.5A (1C) Discharging cut-off voltage of 2.8V) |
Discharge Energy | ≥226Wh |
Energy Density | ≥219Wh/Kg |
Operating Voltage | 2.8-4.2V(T＞5℃) 2.5-4.2V(-20℃＜T≤5℃) 2.1-4.2V(T≤-20℃) |
Internal Resistance(1KHz) | ≤0.50mΩ;25℃ fresh cell SOC=40%，AC 1KHz |
Average Internal Resistance (1KHz) | 0.40±0.10mΩ;25℃ fresh cell SOC=40%，AC 1KHz |
Voltage of Cell Shipment | 3.677±0.005V;25℃ 48%SOC |
Capacity of Shipment | ≥62.5Ah(25℃ Discharging current of 62.5A (1C) Discharging cut-off voltage of 2.8V) |
Operating Temperature | Charge: -20℃ ~ 55℃ Discharge: -30℃ ~ 55℃ |
Cycle Life | ≥2000 cycles(25℃ 1C/1C 100%DOD) |
Recommended SOC | 10%-95% |
Cell Weight | 1.030±0.030 Kg(The weight of the film is included) |
Cell Dimension (mm) | (148.3±0.3)*(26.72±0.22)*(108.9±0.3)mm |

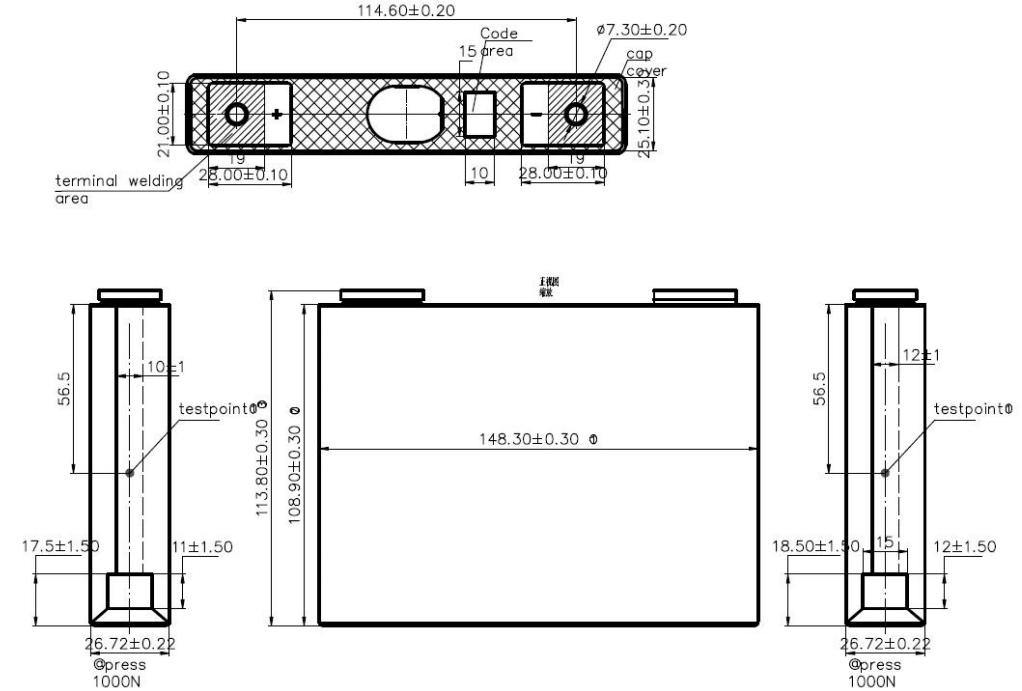

Dimension
