Farasis Energy 3.7V 58ah Rechargeable Pouch Lithium Ternary NMC Battery Cell
Farasis Grade A Brand New 3.7V 58ah Lithium Rechargeable Battery NMC Pouch Cell
- Category: Lithium Ternary NMC Battery
- Tag:
Grade A Brand New Farasis Energy 3.7V 58ah Lithium Rechargeable Battery features low IR, high capacity, excellent rate performance and etc. It is widely used in forklift, tricycle, two-wheelers, motor and etc. For more information on Farasis 3.7V 58ah NMC Pouch Cell, please contact us.
Features
1. Low IR & High capacity
2. Excellent rate performance
3. Explosion-proof & No leakage
4. Light-weight with small size
5. Widely applied
6. Manufacturer: Automated production, good consistency
Specification
| Item | Specifications |
Standard Capacity | 58.0Ah @1/3C@3.0~4.3V @25℃ |
Operating Voltage Range
| 2.75~4.35V; 25℃ ≤ T ≤ 55℃ 2.50~4.35V; 10℃ ≤ T < 25℃ 2.30~4.35V; 0℃ ≤ T < 10℃ 2.10~4.35V; -30℃ ≤ T< 0℃ |
Operating Temperature | Charge:-20~55℃ Discharge:-30~55℃ |
Nominal Voltage | 3.75V @1/3C@2.75~4.35V @25℃ |
ACIR (1KHz) | ≤ 1.0mΩ @55%SOC@25℃ |
DCIR (1C 10s) | ≤ 2.3mΩ @55%SOC@25℃ |
Cell Weight | 833±15g |
Cell Size | Thickness: 10±0.25mm Width: 161±1mm Height: 231±1mm |
Standard Discharging Current | 1C@25℃ |
Maximum Continuous Discharging Current | 3C@25℃ |
Cycle life | ≥1500 @SC/1C@3.0~4.3V @25℃ ≥800 @SC/1C@3.0~4.3V @45℃(Accelerated) |

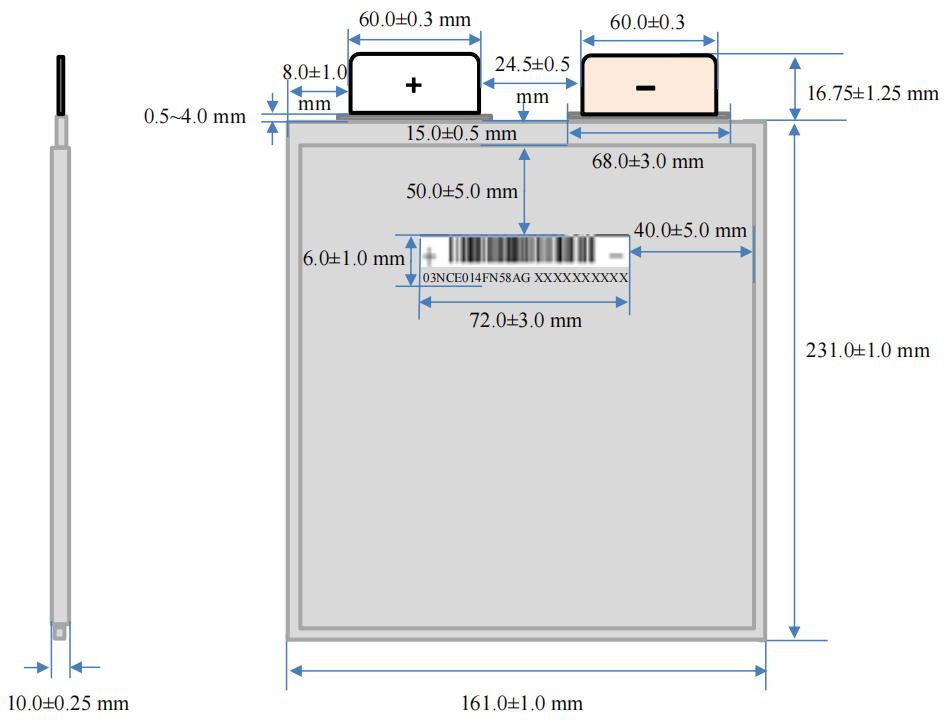

Dimension and Detail
Warnings and Precautions
Do not immerse cells into water.
Do not short circuit cell terminals
Reverse charging is strictly prohibited.
Do not overcharge a cell
Protect cells from mechanical shock, impact and pressure.
The usage of the cells without a BMS or similar System is strictly prohibited.
Do not use it in the place of strong static electricity and strong magnetic field
Do not service cells and electrical connections within plastic package of cell.
Do not drop cells into fire or expose them to any high temperature environment
