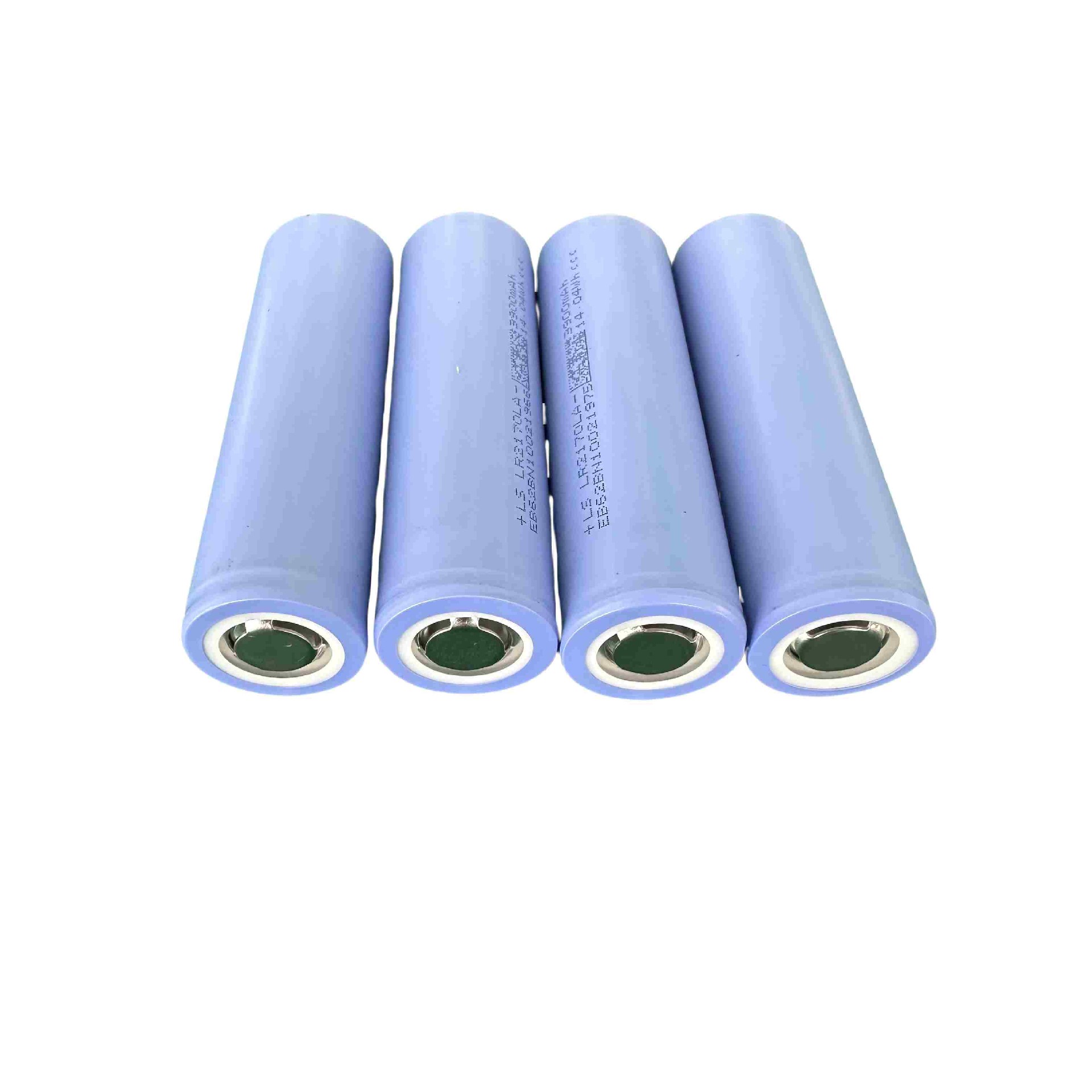

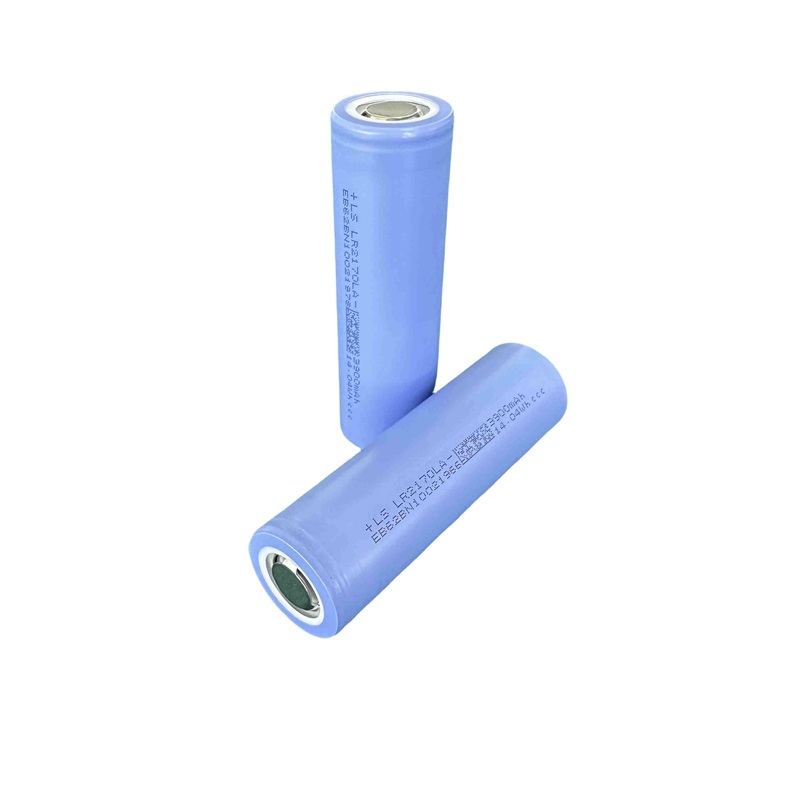

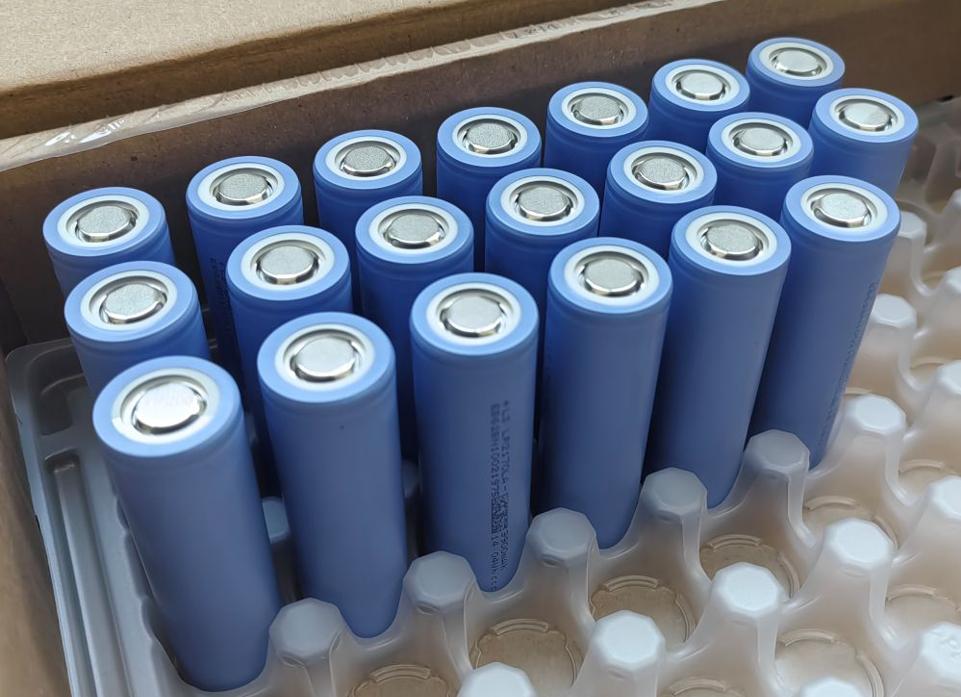

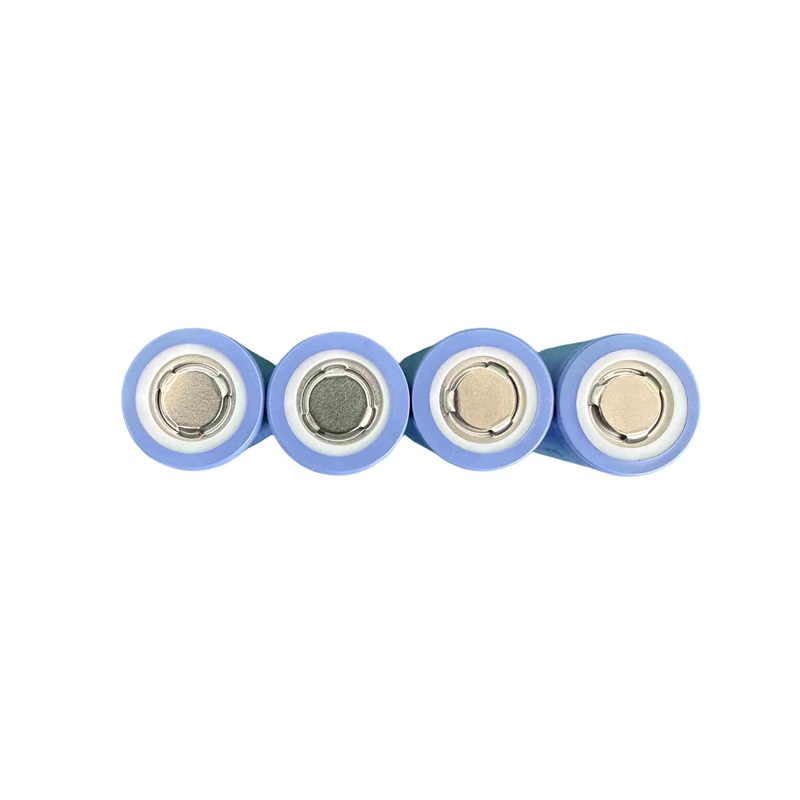

LiShen LR2170LA 3.6v 4000mAh Cylindrical Lithium Ternary NMC Battery
LiShen LR2170LA 3.6V 4000mAh Cylindrical Lithium Ternary NMC Battery For Electric four-wheeler, Electric two-wheeler, Power tool
- Category: Lithium Ternary NMC Battery
- Tag: Lithium Ternary NMC Battery
The LiShen LR2170LA 3.6V 4000mAh Cylindrical Lithium Ternary NMC Battery features high quick charge, high energy density, high rate, high low-temperature performance advantage, extensive application and high safety. It is applied in electric four-wheeler, sweeping robot, portable energy storage and etc.
Product Feature
1. High quick charge
2. High energy density
3. High rate
4. High-low temperature performance advantage
5. High safety
6. Extensive application
Specification
Item | Specifications |
Charge Voltage | 4.20V |
Nominal Voltage | 3.60V@0.2C |
Maximum Continuous Charge Current | 0℃≤T≤15℃ 3000mA 15℃<T≤50℃ 6A |
Maximum Continuous Discharge Current | 45A(80℃ cut-off) |
Operating Environmental Temperature | Charge 0℃～45℃ Discharge-20℃～60℃ |
Storage Temperature and Humidity (For shipping state) | 1 month-20℃～60℃(≤65%RH) 3 months -20℃～45°℃(≤65%RH) 12 months-20℃～25℃(≤65%RH) |
Weight of Bare Cell | ≤67g |
Nominal capacity | 4000mAh(0.2C) |
Cycle Life
| 300 cycle≥60% of first Capacity (25℃,6A charge/35A discharge, 4.20V-2.5V,80℃ cut off) |

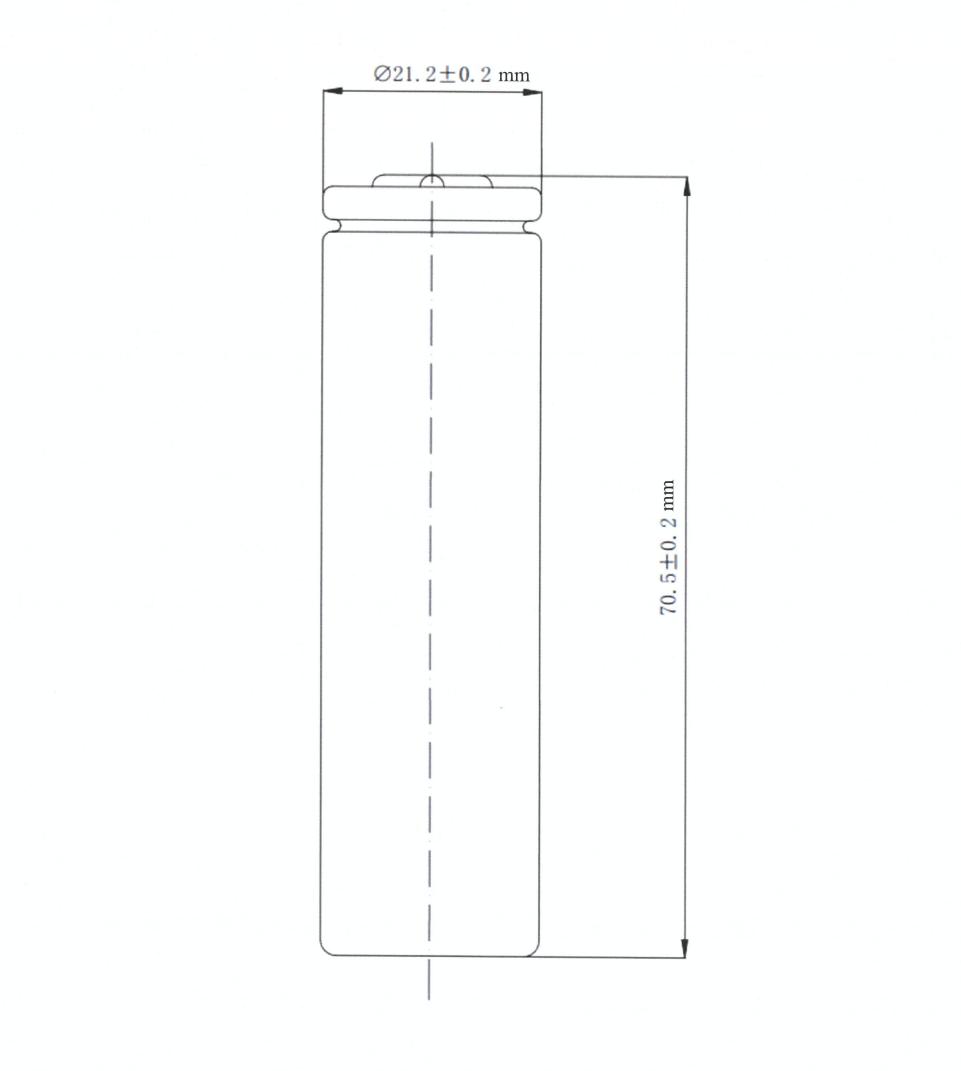

Dimension | Diameter 21.2±0.2mm Height 70.5±0.2mm |
Dimension
Application
It is applied in electric four-wheeler, electric two-wheeler, power tool, vacuum cleaner, sweeping robot, portable energy storage, garden tool and quick charge power bank.
