INR18650-35E 3.6V 3500mAh Lithium 18650 Ternary NMC Battery Cell
INR18650-35E 3.6V 3500mAh Lithium 18650 Ternary NMC Battery Cell
INR18650-35E 3.6V 3500mAh Lithium 18650 Ternary NMC Battery Cell

INR18650-35E 3.6V 3500mAh Lithium 18650 Ternary NMC Battery Cell

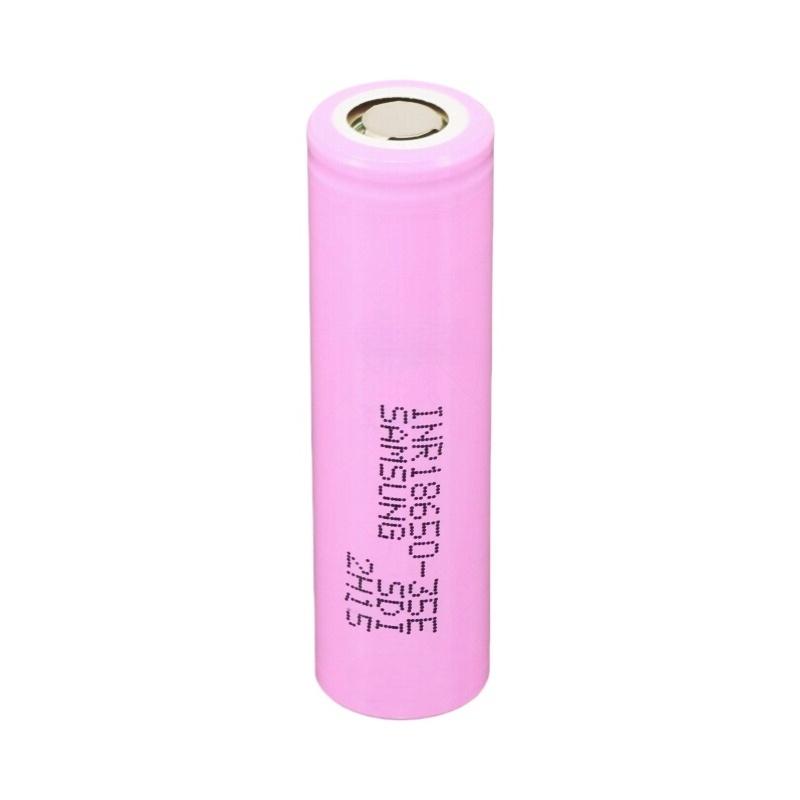

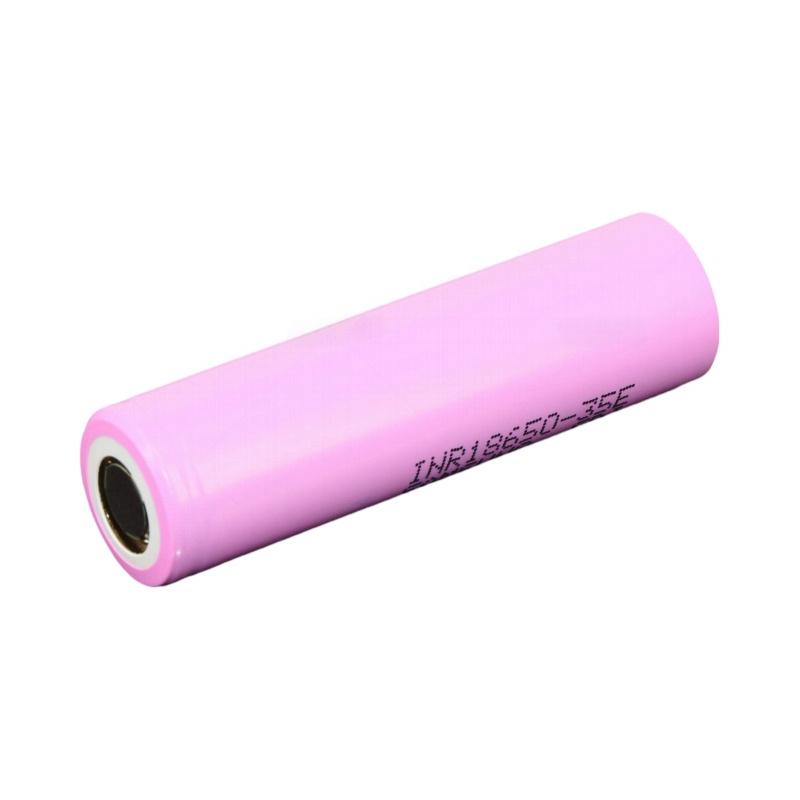

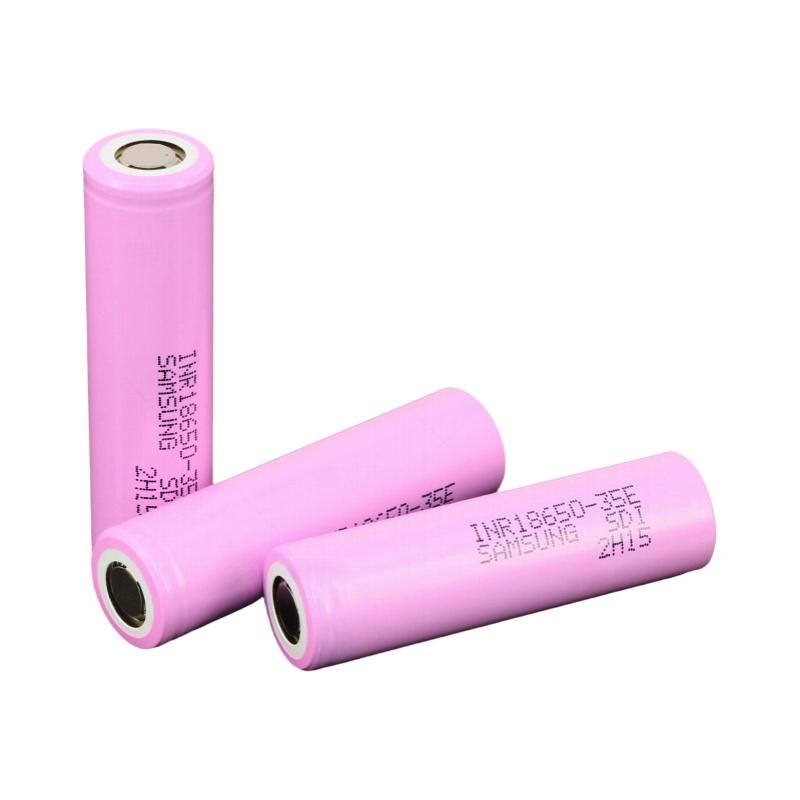

Samsung INR18650-35E 3.6V 3500mAh Lithium 18650 Ternary NMC Battery Cell For EV, e-bike, e-scooter and etc.

The Samsung INR18650-35E lithium ion rechargeable cell, with a capacity of 3500mAh and a maximum continuous discharge current of 8A. It is widely applied in EV, e-bike, e-scooter and etc. Its high capacity ensures extended operation time, while stable current performance makes it suitable for demanding use. Brand new Samsung cells guarantee quality, durability, and safe operation.


Specifications

Item

Specification

Model

INR18650-35E

Nominal Capacity

3500mAh

Charging Voltage

4.2V

Nominal Voltage

3.60V

Charging Method

CC-CV

(constant voltage with limited current)

Charging Current

Standard charge: 1700mA

For cycle life: 1020mA

Charging Time

Standard charge: 4hours

Max. Charge Current

2,000mA (not for cycle life)

Max. Discharge Current

8,000mA (for continuous discharge)

13,000mA (not for continuous discharge)

Discharge Cut-off Voltage

2.65V

Cell Weight

50g max

Cell Dimension

Height: Max.65.25 mm

Diameter: Max.Φ18.55 mm

Operating Temperature

(Cell Surface Temperature)

Charge: 0 to 45°C

Discharge: -10 to 60°C

Storage Temperature

1 year: -20~25°C

3 months: -20~45°C

1 month: -20~60°C

Initial Internal Impedance

≤35mΩ（AC 1kHz）


Applications

Portable IT

Power-Tool

Medical

E-Bike, E-Scooter

EV/LEV

ESS/UPS

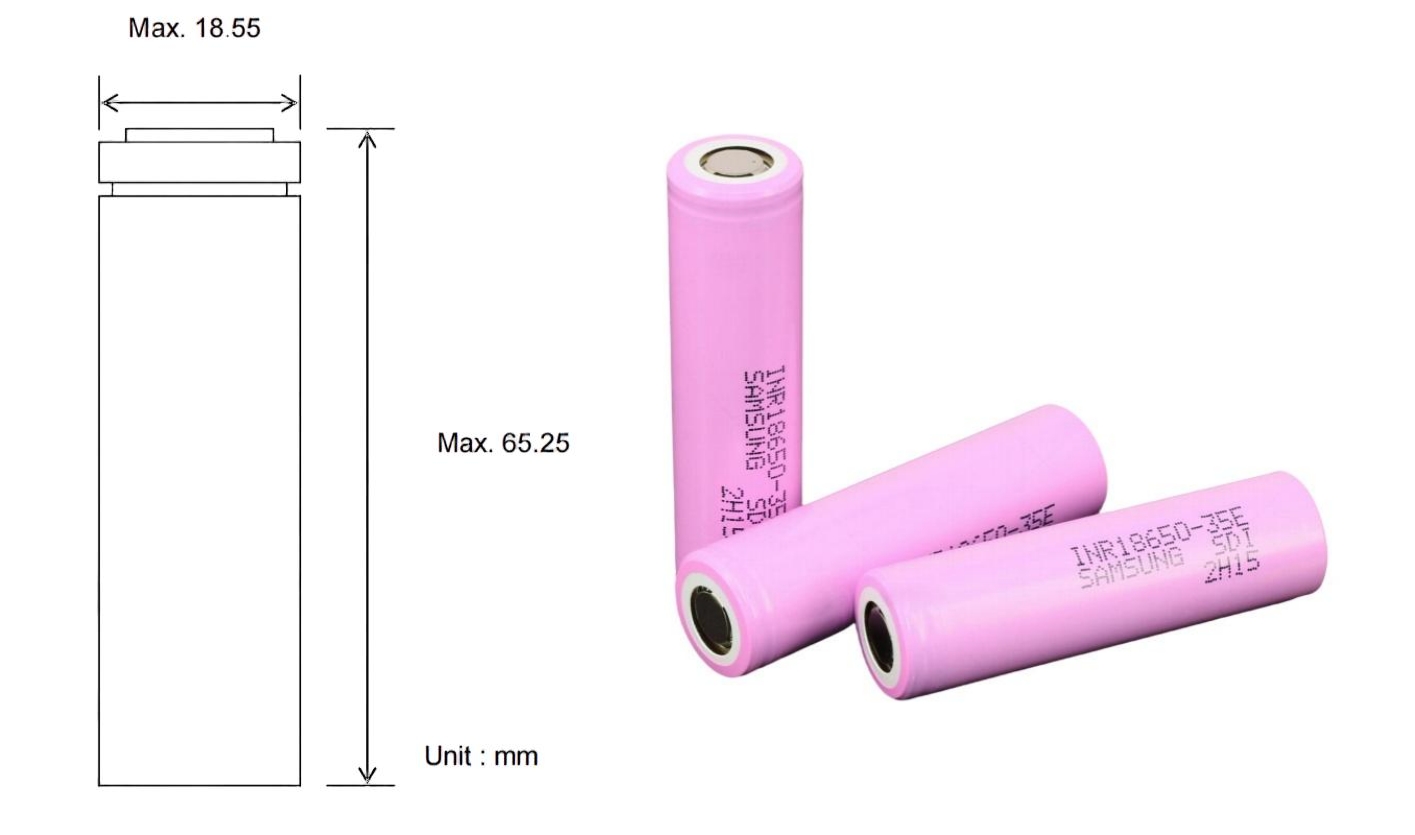

Dimensions and Details


Dimension details
