2.3V 23Ah SCIB High energy Type LTO Battery Cell
It has launched mass production of the 23Ah SCiB™ cell, which maintains the advantages of the 20Ah cell such as rapid charging, low-temperature
- Category: Lithium Titanate LTO Battery
- Tag: Lithium Titanate Battery LTO
It has launched mass production of the 23Ah SCiB™ cell, which maintains the advantages of the 20Ah cell such as rapid charging, low-temperature operation, long life and a high level of safety. The 23Ah cell is preferable for applications that require higher capacity and high power.
Recommended applications
Electric bus, Electric Ferry, Railway, AGV/AMR, UPS, Power System

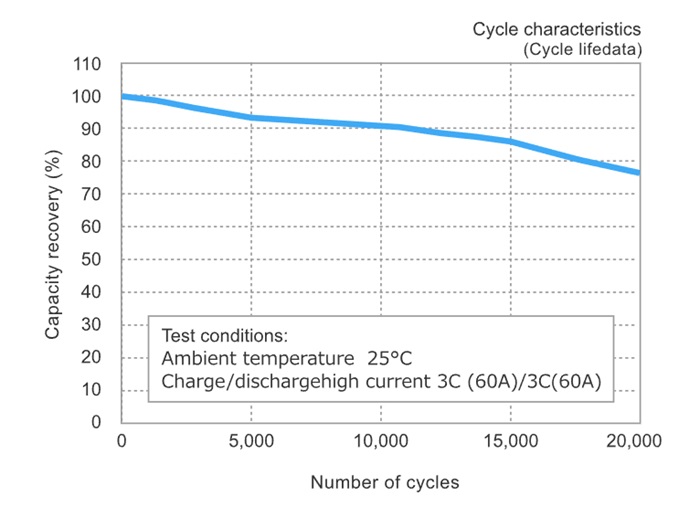

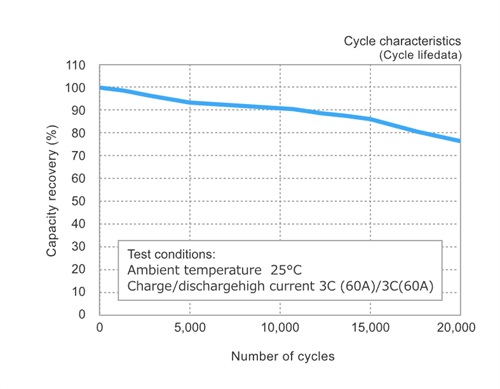

Long life (cycle characteristics)
SCiB™ does not exhibit significant degradation even when it undergoes float charging* that is harmful for typical lithium-ion batteries. Therefore, SCiB™ can be safely used for applications requiring continuous application of constant voltage such as backup power supplies.
Rapid charging
The 20Ah SCiB™ cell can be charged to over 80% of its capacity in six minutes.
Long life (float charging)
SCiB™ does not exhibit significant degradation even when it undergoes float charging* that is harmful for typical lithium-ion batteries. Therefore, SCiB™ can be safely used for applications requiring continuous application of constant voltage such as backup power supplies.
Low-temperature operation
SCiB™ can provide sufficient discharge current at low temperatures as low as -30°C. The 20Ah SCiB™ cell can also be charged at low temperatures, making it suitable for applications that are used over a wide temperature range.
Product specifications
Product name | 23Ah cell |
Rated capacity | 23Ah |
Nominal voltage | 2.3V |
Output Power | |
Input Power | |
Volumetric energy density | 202Wh/L |
Weight energy density | 96Wh/kg |
Dimensions | W116 × D22 × H106 mm |
Weight | Approx. 550g |

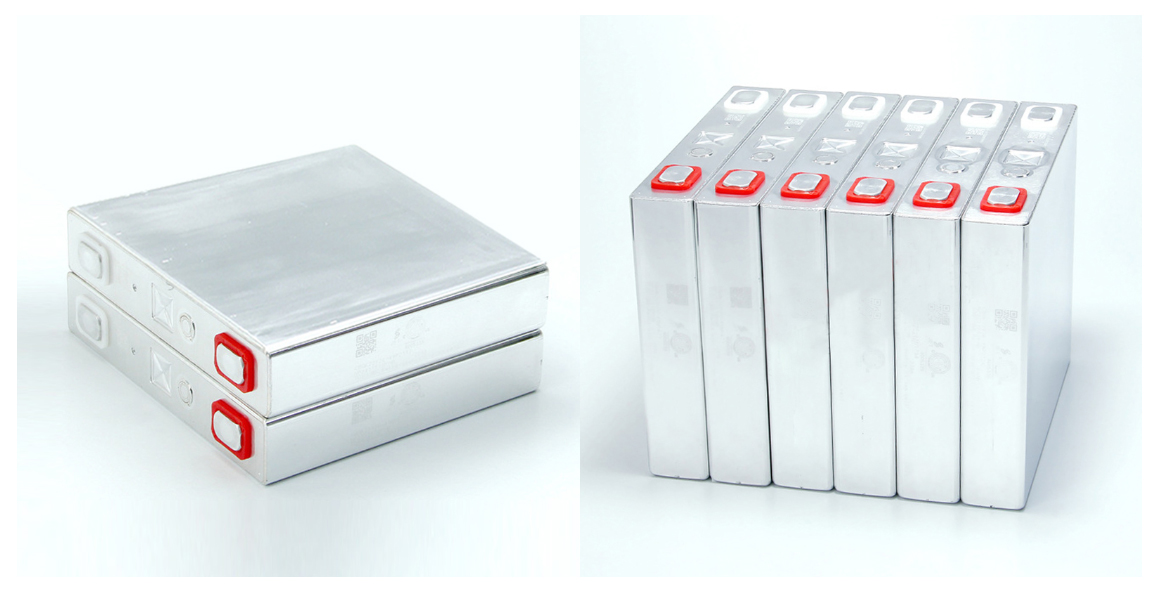

Every Toshiba 2.3V 23Ah SCIB LTO battery cell has been carefully packaged within original factory cartons and arranged on pallets. Each pallet contains a total of 576pcs battery cells.
We currently have a significant quantity of brand new TOSHIBA 2.3V 23Ah SCIB LTO Batteries available in our inventory within the california, United States, just feel free to CONTACT US!
