EVE Battery
EVE Energy is a leading lithium battery manufacturer from Huizhou, China. It was founded in 2001 and it is a high-tech enterprise, focusing on the innovative development of lithium batteries. Energyx has cooperated with EVE for many years to provide new high-quality energy storage power batteries such as LiFepo4 cells, packs, modules, ternary lithium NMC batteries, etc., as well as consumer batteries such as LiFeS2 Battery, LiMnO2 batteries, etc. If necessary, please contact us for a better quote!
Below is a list of product lines that we have worked with eve over the years, you can find what you want in the table, as we show part of the product page. If you need more product details, you can send an email: info@energy-x.org to our customer service, we can offer you more models of products and lower prices!

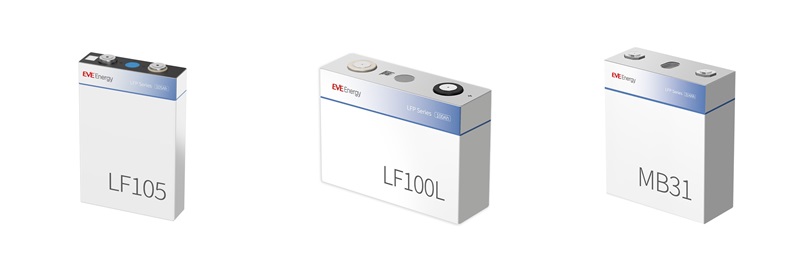

EVE Prismatic LiFePO4 Cell
| Model |
Capacity(Ah) |
Nominal voltage(V) |
Cycle life25℃ |
Internal resistance(1KHZ) |
Weight(g) |
Dimension(mm) |
Energy density(WH/Kg) |
Application |
|---|---|---|---|---|---|---|---|---|
| LF22K | 22 | 3.22 | 4500 (3C/3C) | ≤0.4mΩ | 628±10 | 148.7×17.7×131.8 | 112 | EV |
| LF32 | 32 | 3.20 | 3500 (1C/1C) | ≤1.5mΩ | 730±50 | 148.3×26.8×94.3 | 140 | EV |
| LF50K | 50 | 3.20 | 7000 (1C/1C) | ≤0.7mΩ | 1395±50 | 135.3×29.3×185.3 | 114 | ESS |
| LF50F |
50 |
3.20 | 3000(1C/1C) | ≤0.2mΩ | 1050±50 | 148.3×26.7×129.8 |
140 |
ESS |
| LF80 | 82 | 3.20 | 4500 (0.5C/0.5C) | ≤0.5mΩ | 1680±50 | 130.3×36.3×170.5 | 156 | EV |
| LF90K | 90 | 3.20 | 6000 (1C/1C) | ≤0.5mΩ | 1994±100 | 130.3×36.3×200.5 | 144 | ESS/EV |
| LF100LA | 102 | 3.20 | 5000 (0.5C/0.5C) | ≤0.5mΩ | 1985±100 | 160.0×50.1×118.5 | 164 | ESS |
| LF105 | 105 | 3.20 | 4000 (0.5C/0.5C) | ≤0.32mΩ | 1980±60 | 130.3×36.3×200.5 | 169 | ESS/EV |
| LF125 | 125 | 3.22 | 4000 (0.5C/0.5C) | ≤0.40mΩ | 2390±71 | 200.7×33.2×172.0 | 168 | EV |
| LF150 | 150 | 3.22 | 4000 (0.5C/0.5C) | ≤0.40mΩ | 2830±84 | 200.7×33.2×207.0 | 170 | EV |
| LF168 | 168 | 3.22 | 4000 (0.5C/0.5C) | ≤0.37mΩ | 3020±90 | 200.7×33.2×207.0 | 179 | EV |
| LF173 | 173 | 3.22 | 4000 (0.5C/0.5C) | ≤0.25mΩ | 3190±96 | 173.9×41.06×207.5 | 174 | EV |
| LF230 | 230 | 3.20 | 4000 (0.5C/0.5C) | ≤0.25mΩ | 4140±124 | 173.9×53.8×207.2 | 177 | EV |
| LF280K | 280 | 3.20 | 8000 (0.5P/0.5P) | ≤0.25mΩ | 5490±300 | 173.7×71.7×207.2 | 163 | ESS |
| LF304 | 304 | 3.20 | 4000 (0.5C/0.5C) | ≤0.16mΩ | 5450±164 | 173.7×71.7×207.2 | 178 | EV |
| MB30 | 306 | 3.20 | 10000 (0.5P/0.5P) | ≤0.18mΩ | 5600±300 | 173.7×71.7×207.2 | 174 | ESS |
| MB31 | 314 | 3.20 | 8000 (0.5P/0.5P) | ≤0.18mΩ | 5600±300 | 173.7×71.7×207.2 | 179 | ESS |
| MB56 | 628 | 3.20 | 8000 (0.5P/0.5P) | ≤0.15mΩ | 11500±300 | 352.3×71.7×207.2 | 174 | ESS |
| A22 | 178.1 | 3.22 | 2000 (0.33C/0.33C) | ≤0.3mΩ | 3170±30 | 280.7×61.0×88.6 | 180 | EV |
| A24 | 172.1 | 3.22 | 2000 (0.33C/0.33C) | ≤0.45mΩ | 3160±40 | 301.0×36.7×132.5 | 175 | EV |
| A28 | 87.5 | 3.20 | 2500 (0.33C/0.33C) | ≤0.57mΩ | 1645±30 | 301.8×26.7×94.9 | 171 | EV |
| A27 | 127.2 | 3.21 | 2000 (Fch/1C) | ≤0.45mΩ | 2220±30 | 88.0×37.2×309.5 | 183 | EV |

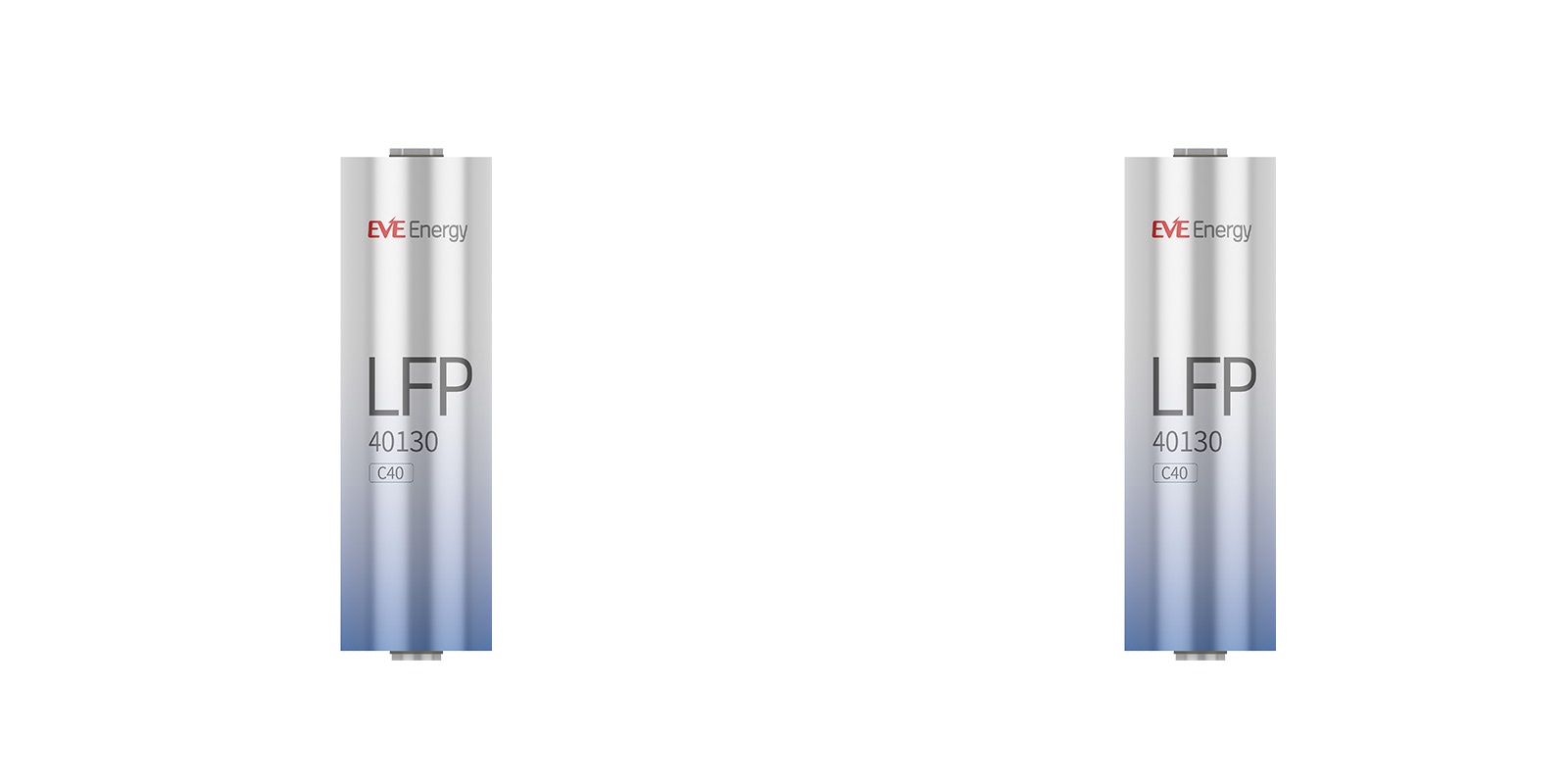

EVE Cylindrical LiFePO4 Battery Cell
| Model |
Capacity (mAh) |
Nominal voltage (V) |
Operate voltage |
Cycle life 25℃ |
Max continuous charger/discharger current (A) |
Energy density (WH/Kg) |
Weight (g) |
Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| C33 | 15000 | 3.20 | 2.0~3.65 | 2500 | 15/30 | 179 | 267±6 | 33.3×140.8 |
| C40 | 20000 | 3.20 | 2.0~3.65 | 4000 | 20/30 | 174 | 366±6 | 40.50×135.0 |

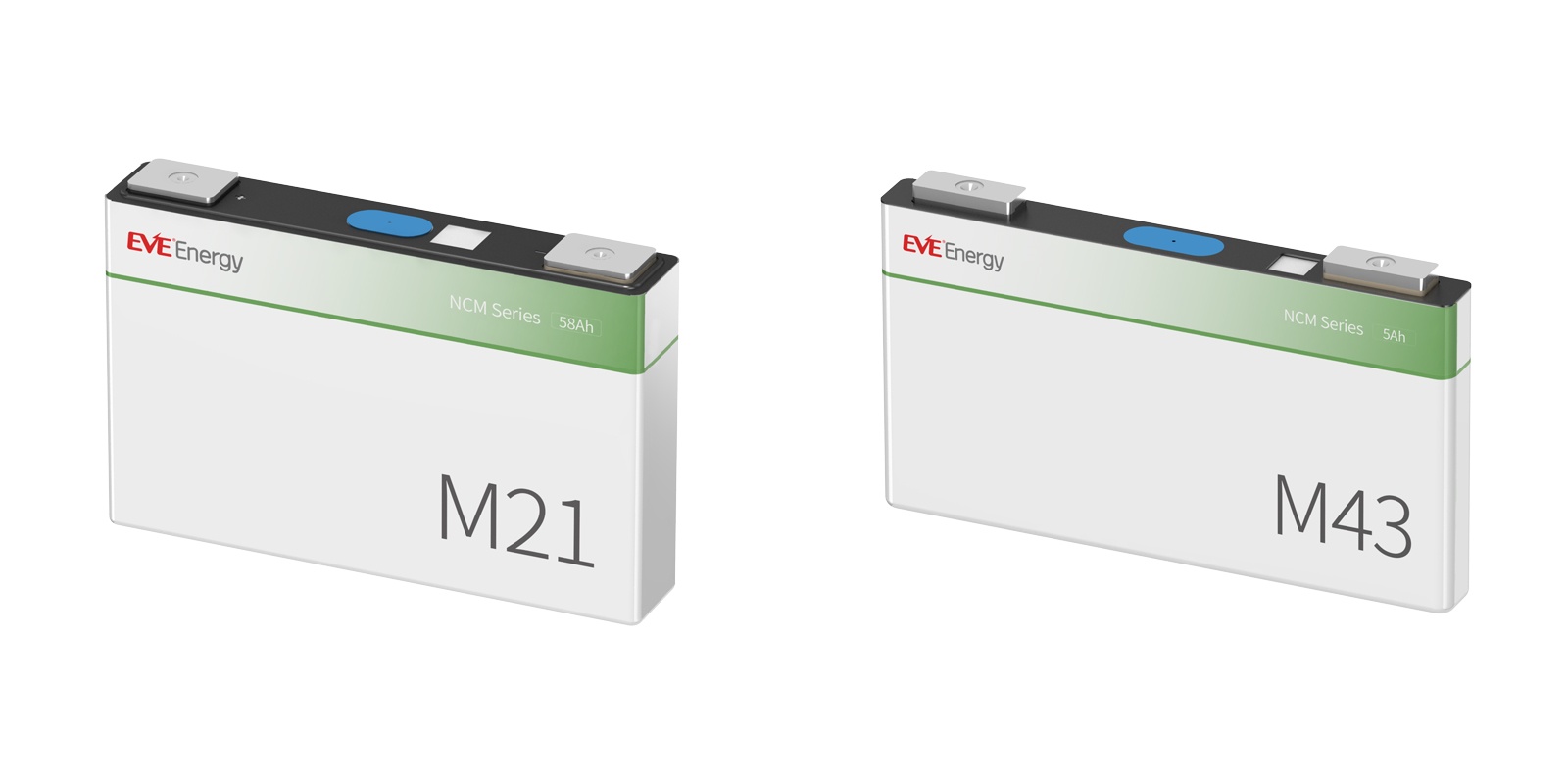

EVE Prismatic Lithium Ternary NMC Battery Cell
| Model | Capacity (Ah) | Nominal voltage (V) | Cycle life 25℃ | Internal resistance (1KHz) | Weight (g) | L*W*H (mm) | Energy density (Wh/kg) |
|---|---|---|---|---|---|---|---|
| M11 | 114.2 | 3.73 | 1500(0.5C/0.5C) | ≤0.5mΩ | 1755±30 | 94.9×301.8×26.6 | 243 |
| M12 | 188 | 3.74 | 1500(1C/1C) | ≤0.3mΩ | 2896±50 | 88.6×301.3×50.6 | 240 |
| M21 | 58 | 3.62 | 3000(0.5C/0.5C) | ≤0.5mΩ | 860±15 | 95.2×148.6×26.7 | 244 |
| M32 | 166 | 3.74 | 1800(0.5C/1C) | ≤0.3mΩ | 2467±35 | 113.1×194.3×50.7 | 251 |
| M41 | 19.5 | 3.66 | 2000(5C/5C) | ≤0.4mΩ | 547±15 | 98.8×148.7×17.7 | 130 |
| M42 | 15 | 3.66 | 2000(5C/5C) | ≤0.4mΩ | 426±7 | 78.8×148.7×17.7 | 128 |
| M43 | 5.45 | 3.66 | 40000(10C/10C) | ≤0.7mΩ | 189±5 | 69.2×120.2×12.6 | 105 |

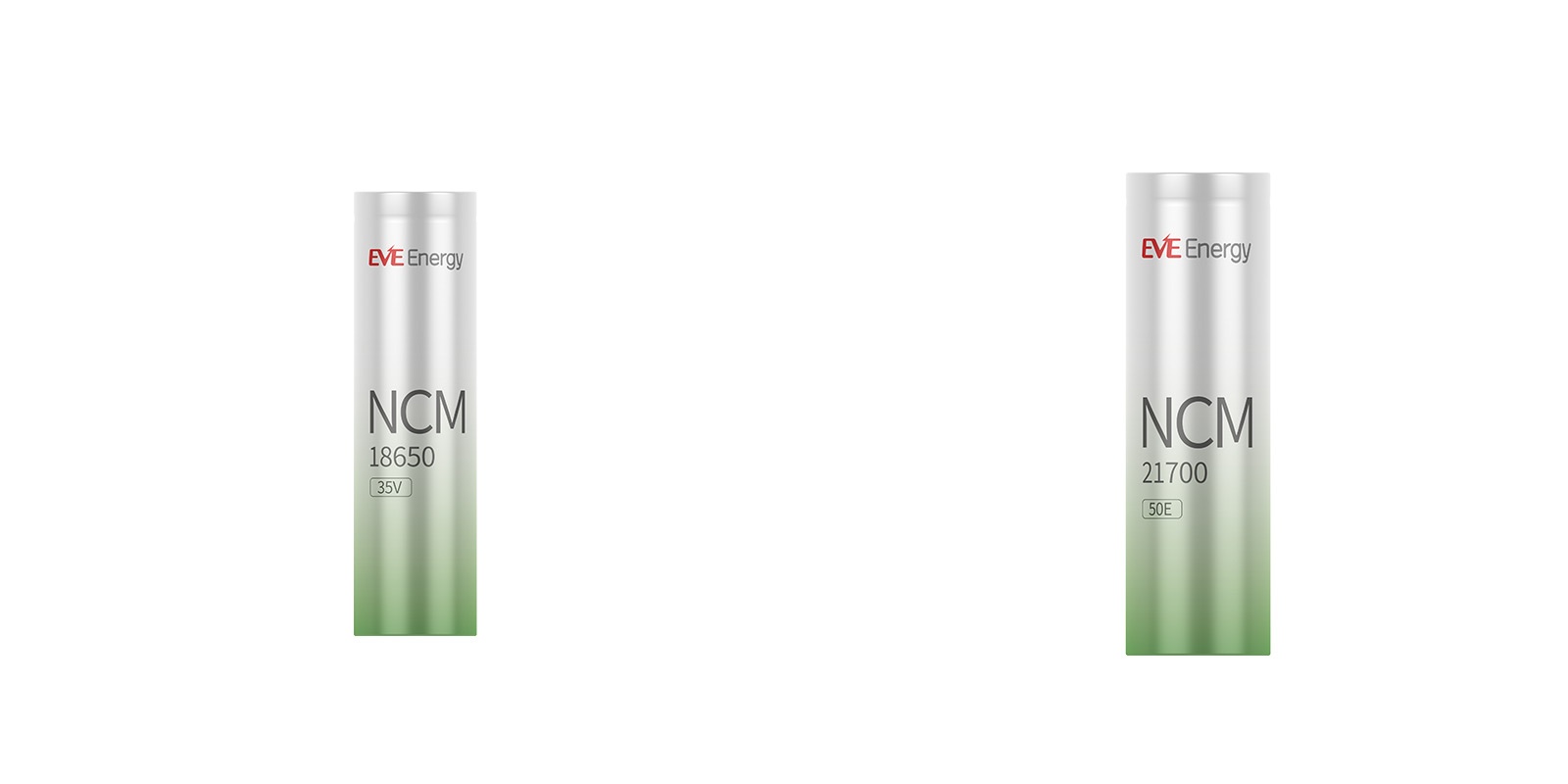

EVE Cylindrical Lithium Ternary NMC Battery Cell
| Model | Capacity (mAh) | Nominal voltage (V) | Operate voltage | Cycle life 25℃ | Max continuous charge/discharge current (A) | Energy density (Wh/kg) | Weight (g) | Diameter × height (mm) |
|---|---|---|---|---|---|---|---|---|
| 18650/20P | 2000 | 3.60 | 2.5~4.2 | 300 | 6.0/30 | 160 | 45Max | 18.35×65.00 |
| 18650/25P | 2500 | 3.60 | 2.5~4.2 | 300 | 6.0/30 | 187 | 48Max | 18.35×65.00 |
| 21700/40P | 4000 | 3.60 | 2.5~4.2 | 300 | 6.0/50 | 205 | 70Max | 21.15×70.15 |
| 21700/40PL | 4000 | 3.60 | 2.5~4.2 | 400 | 8.0/70 | 223 | 67Max | 21.15×70.15 |
| 18650/26V | 2550 | 3.60 | 2.5~4.2 | 1000 | 2.5/7.5 | 195 | 47Max | 18.35×65.00 |
| 18650/29V | 2850 | 3.60 | 2.5~4.2 | 1000 | 2.8/8.4 | 220 | 46.5Max | 18.35×65.00 |
| 18650/33V | 3300 | 3.60 | 2.5~4.2 | 1000 | 3.2/10.0 | 247 | 48Max | 18.35×65.00 |
| 18650/35V | 3500 | 3.65 | 2.5~4.2 | 800 | 3.4/10.2 | 255 | 50Max | 18.35×65.00 |
| 21700/50E | 5000 | 3.65 | 2.5~4.2 | 1000 | 5.0/15.0 | 257 | 71Max | 21.15×70.15 |

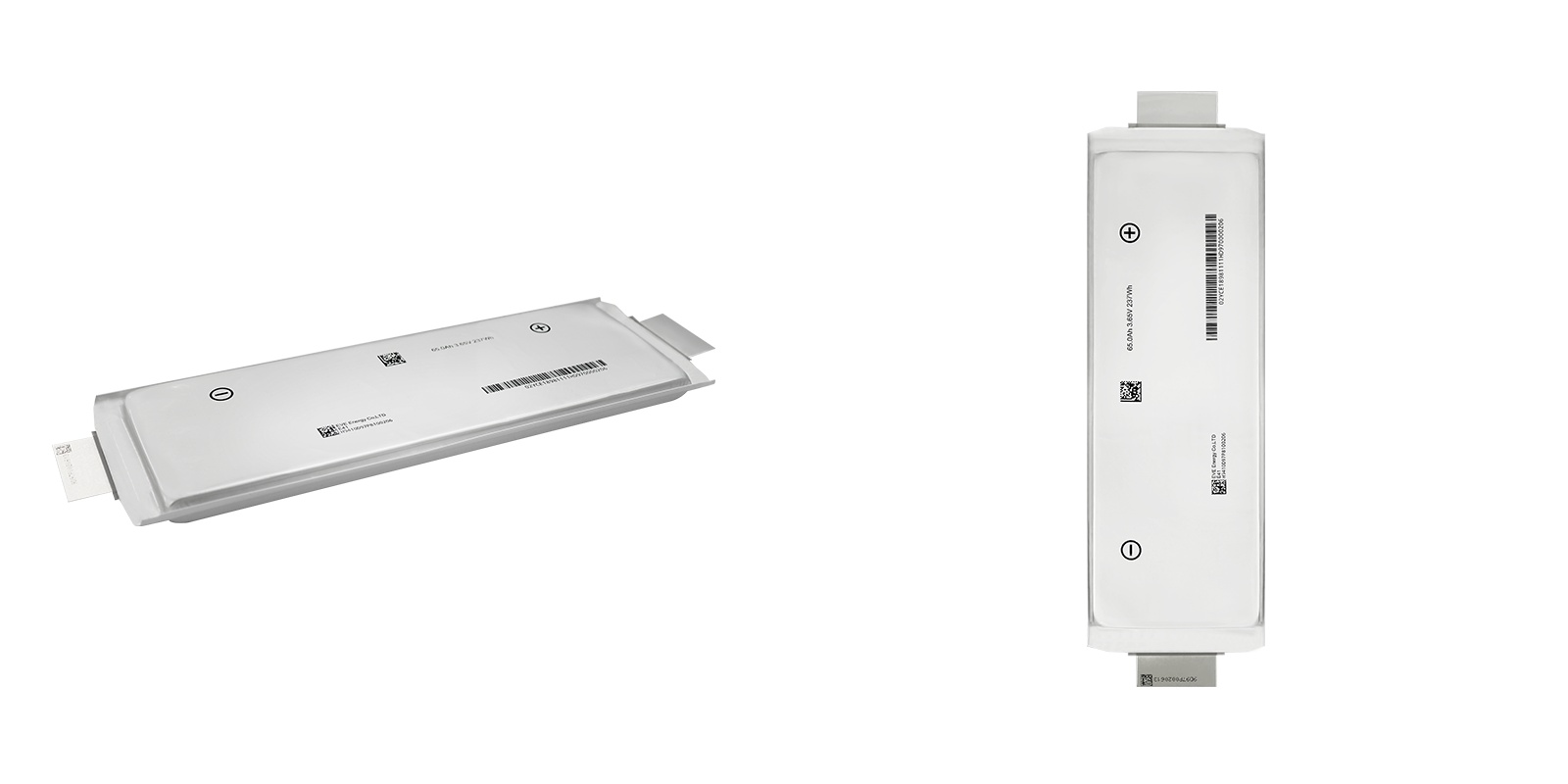

EVE Pouch Lithium Ternary NMC Battery Cell
| Model | Capacity (Ah) | Nominal voltage(V) | Cycle life 25℃ | Internal resistance (1KHz) | Weight (g) | L×W×H (mm) | Energy density (Wh/kg) |
|---|---|---|---|---|---|---|---|
| D21 | 50.5 | 3.65 | 1600(1C/1C) | ≤0.7mΩ | 740±20 | 11.6×99.7×301.5 | 249 |
| E29 | 61 | 3.65 | 3000(0.33C/0.33C) | ≤1.2mΩ | 858±20 | 13.6×99.7×301.5 | 259 |
| E41 | 65 | 3.65 | 3000(0.33C/0.33C) | ≤1.2mΩ | 903±20 | 14.3×99.7×301.5 | 262 |
| E42 | 45 | 3.65 | 2000(0.5C/1C) | ≤0.7mΩ | 661±20 | 10.7×99.7×301.5 | 248 |

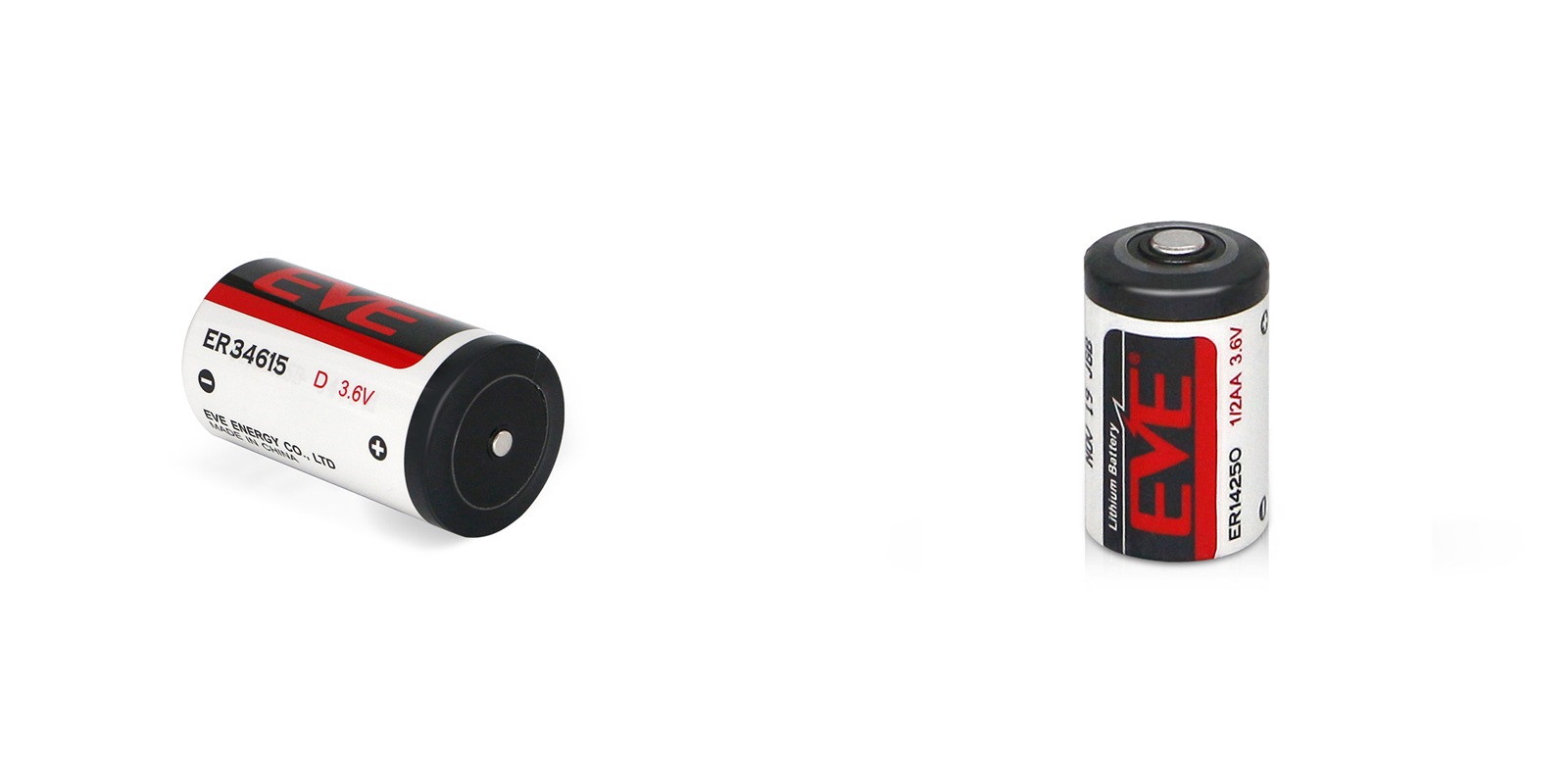

EVE Lithium Thionyl Chloride Li SOCl2 Battery Cell
| Model | Capacity (mAh) | Nominal voltage (V) | Max Continuous current (mA) | Max pulse current (mA) | Weight (g) | Operating temperature (℃) | Dimension (mm) |
|---|---|---|---|---|---|---|---|
| ER14250 | 1200 | 3.6 | 35 | 50 | 10 | -55~+85 | 14.5×25.4 |
| ER14335 | 1650 | 3.6 | 35 | 75 | 12 | -55~+85 | 14.5×33.5 |
| ER14505 | 2700 | 3.6 | 60 | 150 | 19 | -55~+85 | 14.5×50.5 |
| ER17505 | 3600 | 3.6 | 100 | 180 | 26 | -55~+85 | 17.5×51.0 |
| ER18505 | 4000 | 3.6 | 130 | 180 | 28 | -55~+85 | 18.7×50.5 |
| ER26500 | 8500 | 3.6 | 150 | 200 | 52 | -55~+85 | 26.2×50.0 |
| ER34615 | 19000 | 3.6 | 230 | 300 | 100 | -55~+85 | 33.1×61.5 |
| EF651615 | 400 | 3.6 | 5 | 20 | 5 | -55~+85 | 16.85×15.8×7.0 |
| EF651625 | 750 | 3.6 | 10 | 30 | 8 | -55~+85 | 16.85×25.8×7.0 |
| ER2450T | 550 | 3.6 | 5 | 20 | 9 | -55~+125 | 24.3×6.2 |
|
ER32L100 |
1700 |
3.6 |
10 |
50 | 24 | -60~+85 | 32.9×10 |
|
EF702338 |
1600 |
3.6 |
20 |
50 | 16 |
-55~+85 |
23.3×38.3×7.5 |

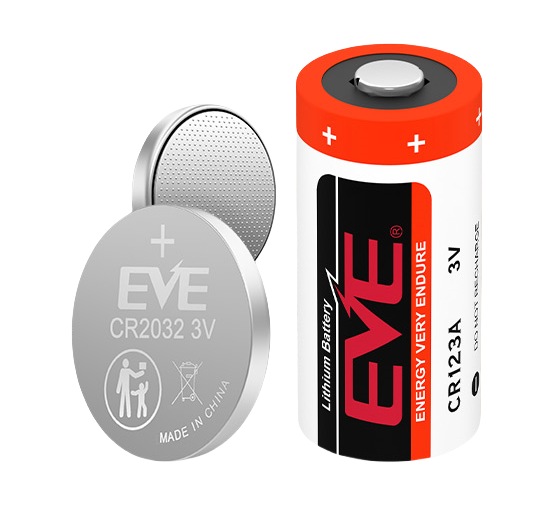

EVE Lithium Manganese LiMnO2 Battery Cell
| Cylindrical Battery | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal voltage (V) | Capacity (mAh) | Standard discharge (mA) | Operating temperature (℃) | Maximum pulse Current (mA) | Dimension (mm) | Weight (g) |
| CR123A | 3 | 1500 | 20 | -40~+70 | 2000 | 17.0×34.5 | 17.0 |
| CR17335 | 3 | 1400 | 5 | -40~+85 | 2000 | 17.0×33.5 | 17.0 |
| CR17450 | 3 | 2400 | 5 | 40~+70 | 2500 | 17.0×45.0 | 23.5 |
| CR9V/P | 9 | 1200 | 7.5 | -40~+60 | 400 | 25.5×16.5×47.5 | 39.0 |
| CR-P2 | 6 | 1400 | 5 | -40~+85 | 2000 | 35.0×19.5×36.0 | 42.0 |
| Coin Cells | |||||||
| Model | Nominal voltage (V) | Capacity (mAh) | Standard discharge (mA) | Operating temperature (℃) | Maximum pulse Current(mA) | Dimension (mm) | Weight (g) |
| CR2016 | 3 | 80 | 0.1 | -20~+70 | 15 | 20.0×1.6 | 1.7 |
| CR2025 | 3 | 165 | 0.2 | -20~+70 | 15 | 20.0×2.5 | 2.4 |
| CR2032 | 3 | 225 | 0.2 | -20~+70 | 15 | 20.0×3.2 | 3.2 |
| CR2450 | 3 | 600 | 0.2 | -20~+70 | 25 | 24.5×5.0 | 6.5 |
| CR2450HT | 3 | 525 | 0.2 | -40~+125 | 15 | 24.5×5.0 | 6.5 |

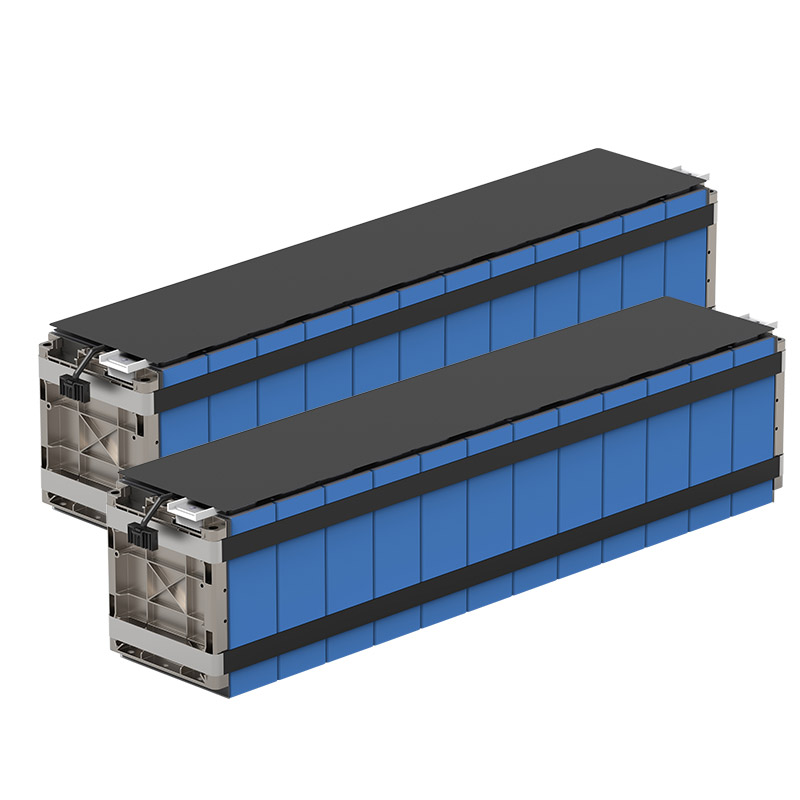

EVE ESS Battery Module
| Module Model | Cell | Configure | Capacity (Ah) | Voltage (V) | Energy (kWh) | L×W×H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| BM-8-12.8/180 | LF90K | 2P4S | 180Ah | 12.8V | 2.304 | 399.2×139.5×215.3 | 18±1 |
| BM-1/8-25.6/100L | LF100LA | 1P8S | 100Ah | 25.6V | 2.56 | 448.5×163×125.6 | 17±2 |
| BM-12-19.2/105 | LF105 | 2P6S | 210Ah | 19.2V | 4.032 | 485.9×135×209.6 | 25.8±0.5 |
| BM-5-16/280 | LF280K | 1P5S | 280Ah | 16V | 4.48 | 486×177.6×223.6 | 25.8±1 |
| BM-8-25.6/280 | LF280K | 1P8S | 280Ah | 25.6V | 7.168 | 629×178.5×215 | 45.15 |
| BM-12-38.4/280 | LF280K | 1P12S | 280Ah | 38.4V | 10.752 | 913.6×173.5×213.9 | 67±2 |

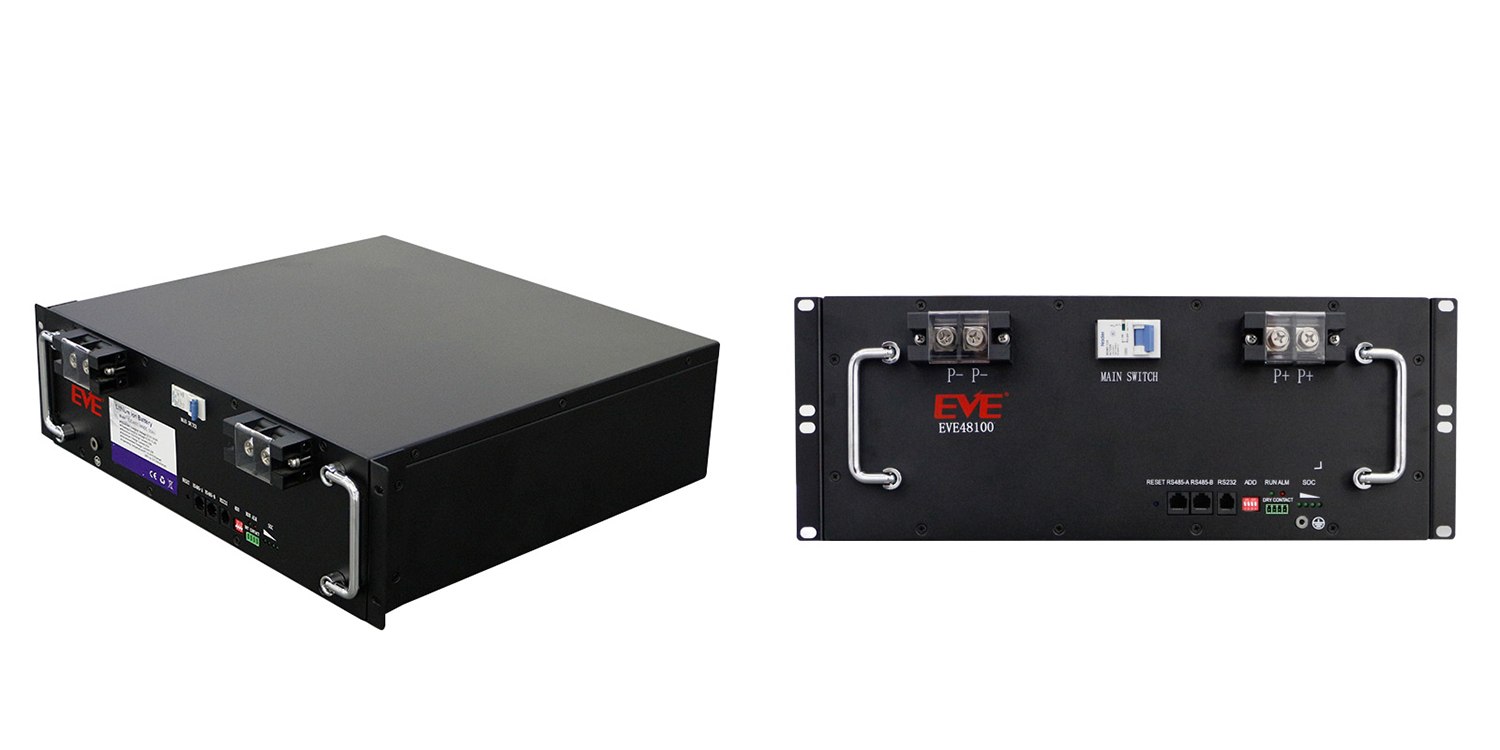

EVE ESS Battery Pack
| Model | Cell model | Group mode | Nominal voltage (V) | Nominal capacity (Ah) | Nominal electricity (kWh) | Max charge/discharge current | External dimensions (D×W×H/mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|
| 4850T-2U | LF50F | 1P15S | 48 | 50 | 2.4 | 50A,1C | 396×442×88.5 | 22 |
| 48100T-3U | LF100LA | 1P15S | 48 | 100 | 4.8 | 100A,1C | 450×442×130.5 | 41 |
| 48100T-4U | LF105 | 1P15S | 48 | 100 | 4.8 | 100A,1C | 410×442×177.5 | 44 |
| 48200T-5U | LF105 | 2P15S | 48 | 200 | 9.6 | 150A,0.75C | 500×442×220 | 72 |
